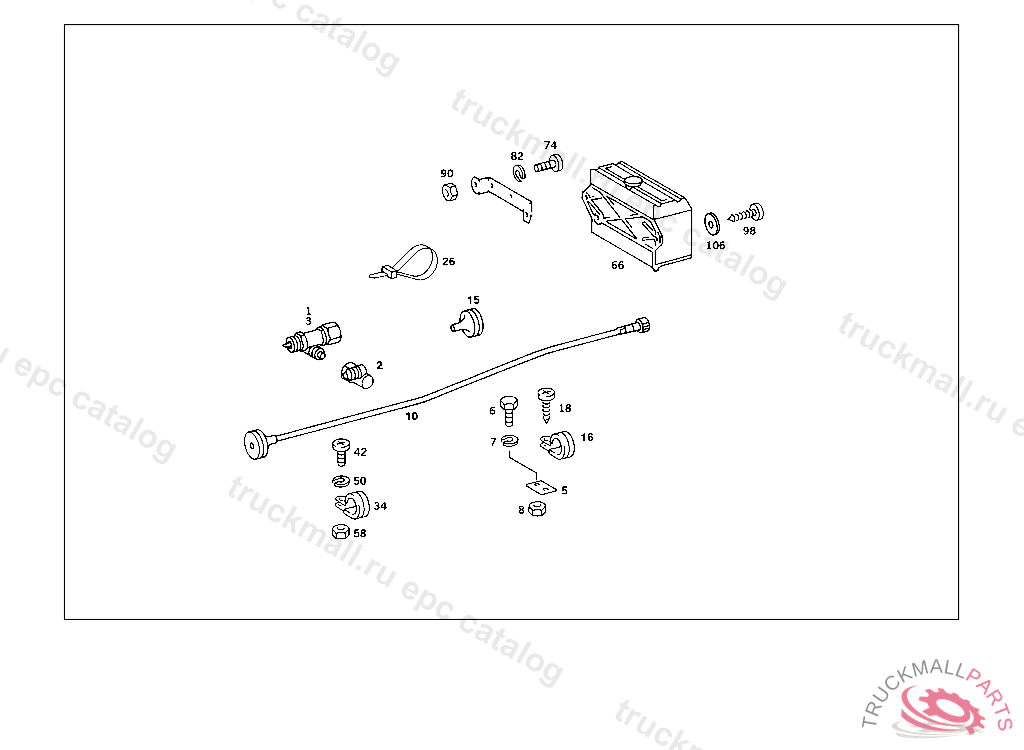

Поз.
Артикул
Описание
1
ANGLE DRIVE
2
ANGLE DRIVE SHORT
3
ANGLE DRIVE SPEEDOMETER
5
BRACKET
6
SCREW , Replaced By: N304017006018
6
SCREW COVER PLATE TO COVER PLATE M 6 X 12
7
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
8
NUT BALL PIVOT TO LEVER
10
FLEXIBLE SHAFT , Replaced By: A0035421607, +001A3109970081
10
FLEXIBLE SHAFT1080 MM
10
FLEXIBLE SHAFT2800 MM
10
FLEXIBLE SHAFT , Replaced By: A0035421607, +001A3109970081
10
FLEXIBLE SHAFT ODOMETER 1300 MM
10
FLEXIBLE SHAFT ODOMETER 1450 MM
10
FLEXIBLE SHAFT1700 MM
10
FLEXIBLE SHAFT2800 MM
10
FLEXIBLE SHAFT , Replaced By: A0035421607, +001A3109970081
10
FLEXIBLE SHAFT2550 MM
10
FLEXIBLE SHAFT ODOMETER 900 MM
10
FLEXIBLE SHAFT
15
GROMMETD6/32
16
CLAMP CABLE HARNESS MOUNTING
16
CLAMP , Replaced By: N000000001045
16
CLAMP , Replaced By: N916016010211
16
CLAMP , Replaced By: N916016010201
18
SHEET METAL SCREW
26
LOOM TIE LINE MOUNTING 280 MM
34
CLAMP , Replaced By: N916016010201
34
CLAMP , Replaced By: N916016010211
34
CLAMP , Replaced By: N000000001045
34
CLAMP CABLE HARNESS MOUNTING
42
SCREW
50
LOCK WASHER LINE MOUNTING
58
NUT , Replaced By: N304032005005
58
NUT IN CASE OF SUBSEQUENT INSTALLATION
66
INDICATOR ODOMETER
74
SCREW
82
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
90
NUT BALL PIVOT TO LEVER
98
SHEET METAL SCREW
106
WASHER COMPRESSED AIR LINE TO BRACKET
106
WASHER , Replaced By: N009021006208
999
BRACKET
