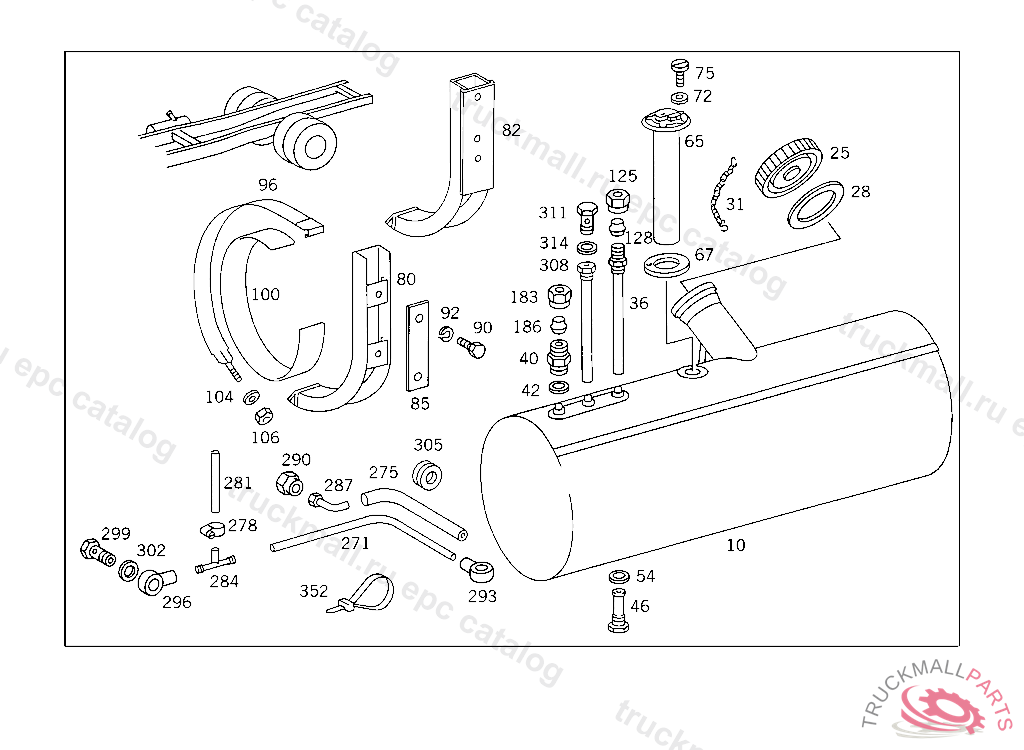

Поз.
Артикул
Описание
10
FUEL TANK LESS SENDER UNIT,659794
10
FUEL TANK LESS SENDER UNIT
25
FILLER CAP
28
SEAL RING
31
CHAIN FILLER CAP
46
FUEL STRAINER
54
SEAL RING FUEL STRAINER SCREEN
65
SENDER UNIT , Replaced By: A3455427917
65
SENDER UNIT , Replaced By: A3455427617
65
SENDER UNIT TANK
65
SENDER UNIT TANK
67
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
72
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
75
SCREW COMPRESSED AIR LINE MOUNTING
82
SUPPORT FUEL TANK,659794
85
SHIM CONSOLE TO SIDE MEMBER,KB860814
90
SCREW BATTERY CASE
92
LOCK WASHER SUPPORT TO SIDE MEMBER
96
STRAP FUEL TANK
100
SHIM FUEL TANK TO CONSOLE 60 MM
104
WASHER SUPPORT TO FRAME,D 127794
106
NUT FUEL TANK TO SUPPORT
271
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
275
INSULATING HOSE , ORDER BY THE METER
275
INSULATING HOSE
278
CLAMP LINE MOUNTING
281
HOSE , Replaced By: A3769978182
281
HOSE , Replaced By: A3449977582
281
HOSE , ORDER BY THE METER
284
DISTRIBUTOR LEAK LINE,659794
287
CONNECTOR
290
NUT. UNION NUT RETURN
293
BANJO UNION , Replaced By: N915052008019
296
BANJO UNION FEED 8/14 MM,659794
299
HOLLOW SCREW
302
SEAL RING INJECTION PUMP
305
GROMMET LINE PASSAGE AT SIDE MEMBER
308
RISING PIPE ,659794
311
HOLLOW SCREW FUEL LINE TO TANK,659794
314
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
314
SEAL RING AT TANK
352
LOOM TIE , Replaced By: A3459977390
352
LOOM TIE ELECTRIC CABLE MOUNTING
