Главная
›
Mercedes
›
ENGINE
›
OM 364 LA
›
374.990
›

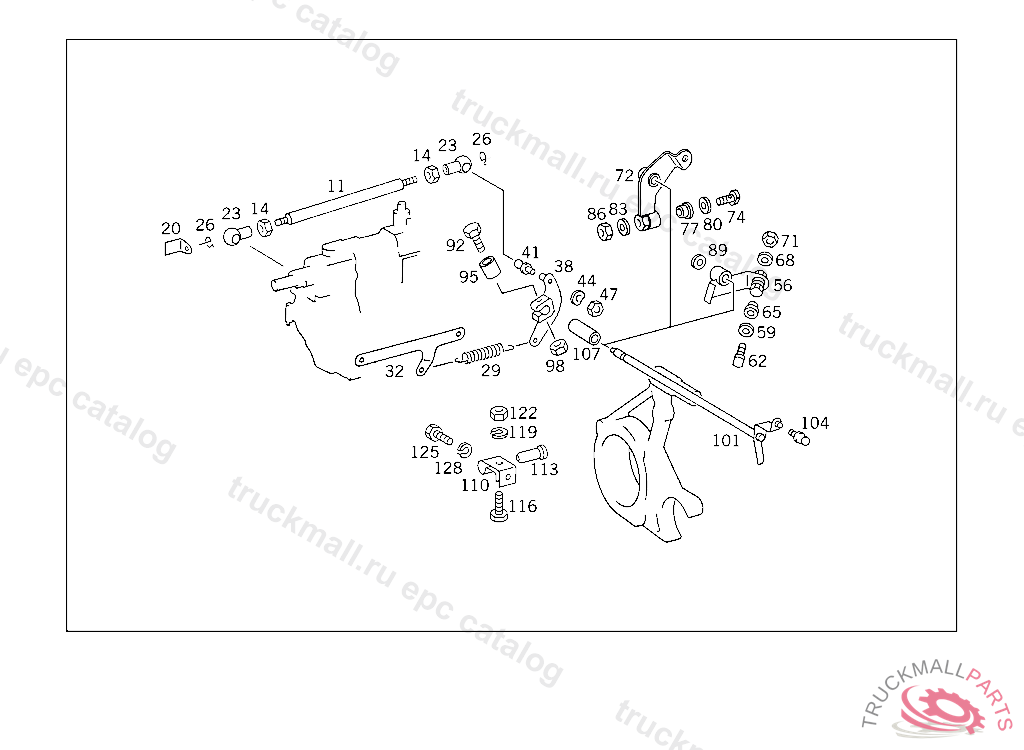

07 INJECTION PUMP
›
135 CONTROL IL. 1
Mercedes N000084006134 - Болт
OM 364 LA 374.990
07 INJECTION PUMP - 135 CONTROL IL. 1
Поз.
Артикул
Описание
29
A3199930510
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
32
A3640720940
BRACKET
38
A3740709021
LEVER INJECTION PUMP CONTROL
41
N071803010209
BALL PIVOT , Replaced By: A3129910120
72
A3740708921
LEVER MANUAL CONTROL
74
A3453020171
SCREW WIRE CABLE TO LEVER
77
A3453020050
BUSHING WIRE CABLE TO LEVER
80
A3449907440
WASHER WIRE CABLE TO LEVER
83
N000125006420
WASHER PLUG SOCKET TO BRACKET
86
N000934006006
NUT
92
N000933006061
SCREW LEVER TO THROTTLE VALVE SHAFT
98
N000934006006
NUT
101
A3760702023
SHAFT (CONTROL SHAFT)
104
A0009910520
BALL PIVOT
107
A3140720753
SPACER TUBE CONTROL
110
A3523020020
CLAMP
113
A3453027091
GROMMET
116
N000084006134
SCREW LICENSE PLATE TO BRACKET,4 300861
119
N000127006206
LOCK WASHER CLAMP TO BRACKET
122
N000934006006
NUT
125
N000933006223
SCREWM 6X12
128
N000127006206
LOCK WASHER CLAMP TO BRACKET
