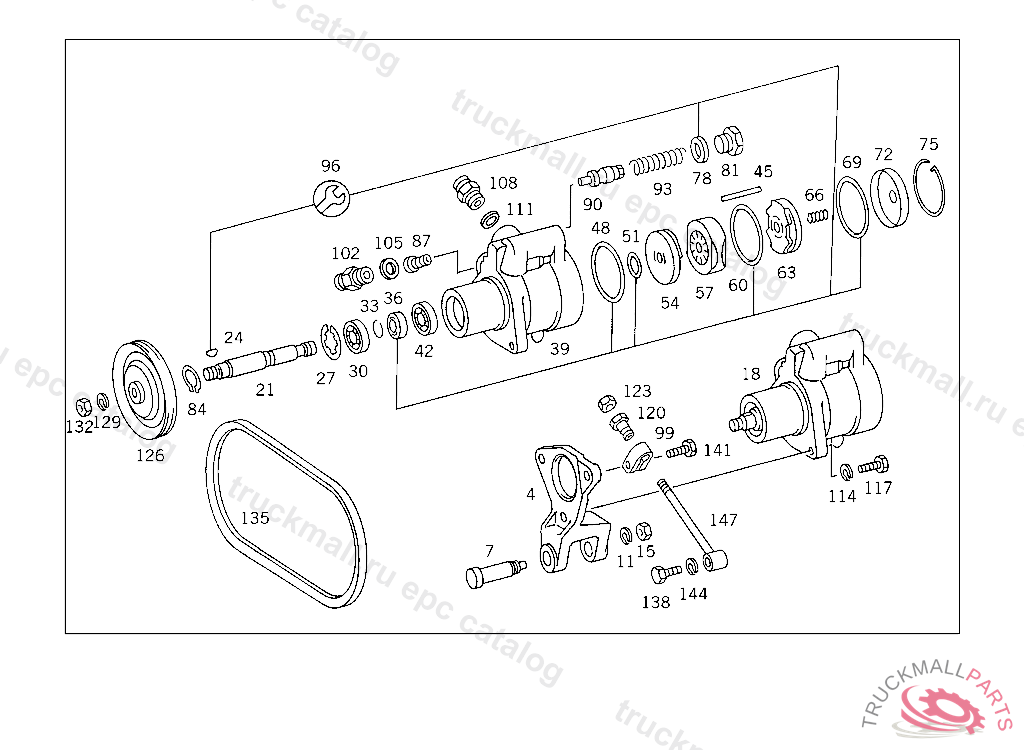

Поз.
Артикул
Описание
4
SUPPORT HYDRAULIC PUMP
7
PIN HYDR. PUMP SUPPORT TO SUPPORT OF FUEL FILTER OR POWER STEERING PUMP,RESP.
11
LOCK WASHER TRANSMISSION TO BELL HOUSING
15
NUT
18
HYDRAULIC PUMP
21
DRIVE SHAFT
24
KEY
27
LOCK RING
30
BALL BEARING
30
BALL BEARING , Replaced By: A0049819625
30
BALL BEARING , Replaced By: A0049810925
33
SNAP RING
36
SEAL RINGTO 000 460 23 80
36
SEAL RING
39
HOUSING
42
NEEDLE BEARING
42
NEEDLE BEARING , Replaced By: A0149818010
45
DOWEL PINTO 001 466 77 01
48
SEAL RINGTO 000 460 26 80
51
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
54
COVER
54
COVER , Replaced By: A0004664305
54
COVER , Replaced By: A0004667105
57
SET OF ROTORS
57
ROTOR SET , Replaced By: A0004663421
60
SEAL RINGTO 000 460 23 80
63
COVER , Replaced By: A0004667205
63
COVER , Replaced By: A0004663505
66
SPRING , Replaced By: A0059934201
66
SPRINGTO 000 460 23 80
69
SEAL RING
72
COVER , Replaced By: A0004666505
75
SNAP RINGTO 000 460 23 80
78
SEAL RING LINE CONNECTION
81
SCREW PLUGTO 000 460 23 80
84
LOCK RING
87
CARTRIDGE
87
CARTRIDGE , Replaced By: A0004663584
90
PISTON , Replaced By: A0004664583
90
PISTON , Replaced By: A0004660483
90
PISTON
93
SPRING
96
REPAIR KIT
96
REPAIR KIT (GASKET KIT),POWER STEERING PUMP TO 001 466 19 01/27 01
99
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
99
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
102
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
105
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
108
FITTING DELIVERY LINE TO PUMP
111
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
114
LOCK WASHER , Replaced By: N912004010102
117
SCREW , Replaced By: N304017010040
120
NUT ALTERNATOR
120
NUT TIGHTENER PULLEY TO LEVER
123
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
126
SHAFT HYDRAULIC PUMP
126
PULLEY HYDRAULIC PUMP
129
LOCK WASHER SUPPORT TO SIDE MEMBER
132
NUT , Replaced By: N308675014000
135
V-BELT ALTERNATOR 12.5X975
135
V-BELT , Replaced By: A0049973692
138
SCREW RADIATOR TO BUFFER
141
SCREW (CLAMPING BRACKET),HYDRAULIC PUMP,137360
144
LOCK WASHER , Replaced By: N912004010102
147
SCREW
