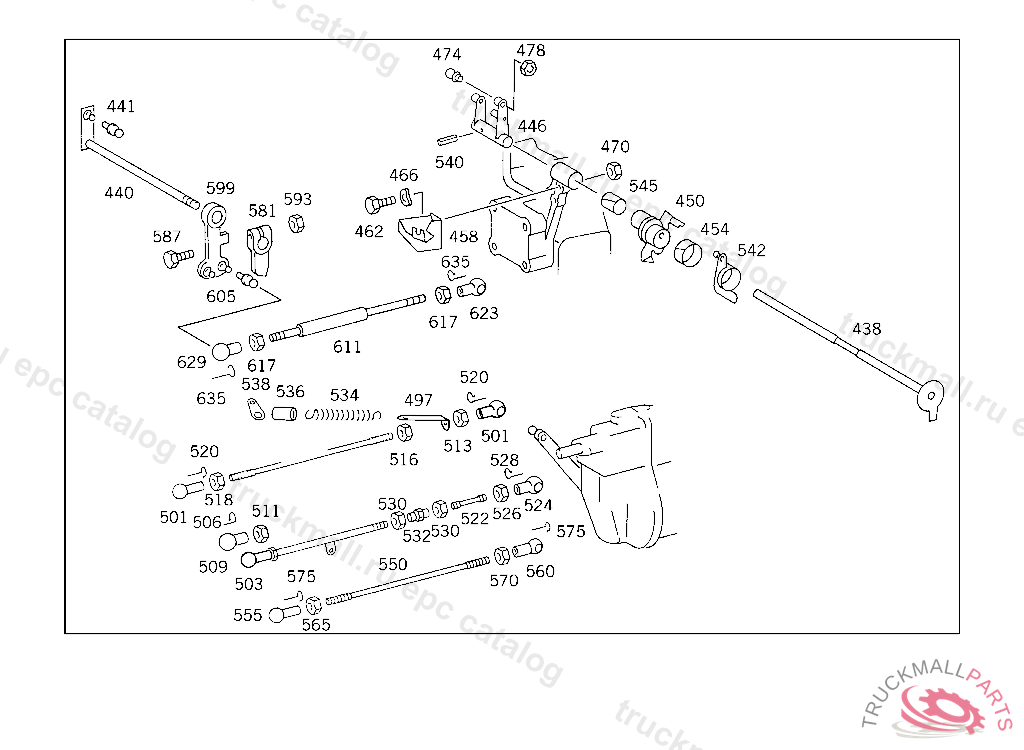

Поз.
Артикул
Описание
440
SHAFT INJECTION PUMP CONTROL
440
SHAFT , UP TO ENGINE 108471 YEAR OF MANUFACTURE 1970
441
BALL PIVOT , Replaced By: A3129910120
474
BALL PIVOT ACCELERATOR PEDAL,4 859026
478
NUT BALL PIVOT TO LEVER
497
BRACKET
501
BALL SOCKET AT CONTROL LEVER
513
NUT FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
516
NUT BALL PIVOT TO LEVER
518
NUT POWER CYLINDER
520
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
534
SPRING
534
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
536
SPACER TUBE CONTROL
536
SPACER TUBE , Replaced By: A3210720053
536
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
538
BRACKET
581
STOP
587
SCREW
593
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
599
LEVER
605
BALL PIVOT , Replaced By: A3129910120
611
ROD CONTROL LEVER, WITH DIESEL ENGINE WITH OM 352 ENGINE
617
NUT BALL PIVOT TO LEVER
623
BALL SOCKET PULL ROD TO LEVER
629
BALL SOCKET AT CONTROL LEVER
635
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
999
SCREW PLUG , Replaced By: A3529971130
999
SEAL RING , Replaced By: A3529970540
999
SCREW
999
LINE , Replaced By: A3520703233
999
LINE , Replaced By: A3520703333
999
LINE , Replaced By: A3520703433
999
LINE , Replaced By: A3520703533
999
LINE , Replaced By: A3520703633
999
LINE , Replaced By: A3520703733
999
BANJO UNION
999
SEAL RING , Replaced By: A3529970540
