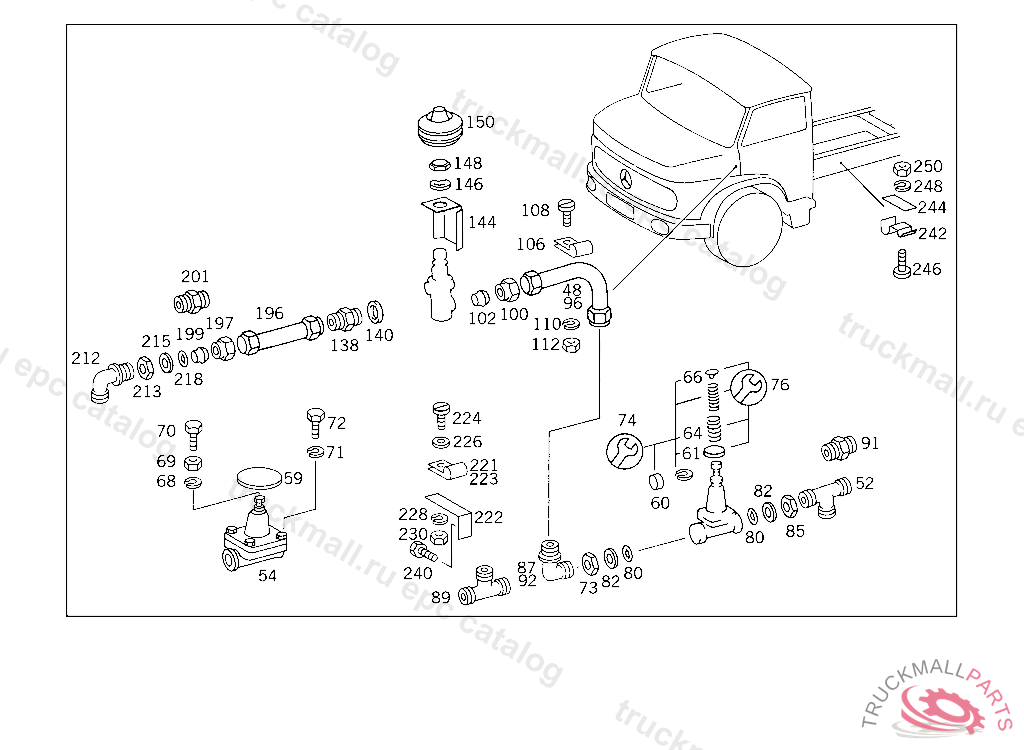

Поз.
Артикул
Описание
48
LINE FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING 15 X 1.5 MM
48
LINE FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING 15 X 1.5 MM
52
T-FITTING , Replaced By: N074317000100
52
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
54
VALVE"BOSCH DO BRASIL
54
VALVE
54
VALVE"BOSCH DO BRASIL
54
VALVE"BOSCH"
59
DIAPHRAGMTO 344 429 73 44
59
DIAPHRAGMTO 344 429 73 44
60
VALVE SEAT RINGWABCO,5 433388
61
DIAPHRAGMTO 000 429 63 44
64
SPRINGTO 000 429 63 44,000 429 59 44
66
SPRING RETAINERTO 000 429 63 44,000 429 59 44
68
LOCK WASHER TAIL LAMP TO BRACKET
69
NUT , Replaced By: N304032008006
70
SCREW LINES TO BRACKET
71
LOCK WASHER TAIL LAMP TO BRACKET
72
SCREW BRACKET TO INTAKE MANIFOLD
72
SCREW BRACKET TO INTAKE MANIFOLD
73
NUT CHECK VALVE TO AIR RESERVOIR
74
REPAIR KITTO 000 429 63 44,000 429 59 44
76
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
80
O-RING CHECK VALVE TO AIR RESERVOIR
82
THRUST RING CHECK VALVE TO AIR RESERVOIR
82
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
85
NUT CHECK VALVE TO AIR RESERVOIR
87
ELBOW FITTING AT OVERFLOW VALVE
87
ELBOW FITTING AT OVERFLOW VALVE
89
T-FITTING , Replaced By: N074317000100
89
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
91
FITTING
91
CONNECTION FITTING , Replaced By: A0039979172
92
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
92
FITTING
96
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
96
LINE , FOR USE WITH BATTERY CASE NOT MOUNTED LOWER, Replaced By: A3444209045
96
LINE , FOR USE WITH BATTERY CASE NOT MOUNTED LOWER, Replaced By: A3444209045
96
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
96
LINE , Replaced By: A3454307965
96
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
96
LINE , FOR USE WITH BATTERY CASE NOT MOUNTED LOWER, Replaced By: A3444209145
96
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
96
LINE , FOR USE WITH BATTERY CASE NOT MOUNTED LOWER, Replaced By: A3444209145
96
LINE , Replaced By: A3454307865
96
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
96
LINE , Replaced By: A3454307765
96
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
96
LINE , Replaced By: A3454307665
96
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
100
UNION NUT
102
GLAND , Replaced By: A0019901667
106
CLAMP LINE MOUNTING
106
CLAMP LINE MOUNTING
108
SCREW CABLE TO ALTERNATOR
110
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
112
NUT
138
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
138
CONNECTOR , Replaced By: A3454298136
138
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
140
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
140
SEAL RING
140
SEAL RING
140
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
144
PROTECTIVE PLATE OPERATING VALVE TO SIDE MEMBER SHELL
144
PROTECTIVE PLATE OPERATING VALVE TO SIDE MEMBER SHELL
146
SPRING WASHER AT CAB FLOOR
146
SPRING WASHER AT CAB FLOOR
148
NUT SUCTION LINE TO OIL PUMP
148
NUT SUCTION LINE TO OIL PUMP
150
GROMMET OPERATING VALVE TO SIDE MEMBER SHELL
150
GROMMET OPERATING VALVE TO SIDE MEMBER SHELL
150
GROMMET MAIN CABLE HARNESS THRU CAB
196
LINE
196
LINE , Replaced By: A3454307565
196
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
196
LINE
197
UNION NUT
197
UNION NUT
199
GLAND , Replaced By: A0019901667
199
GLAND , Replaced By: A0019901667
201
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
201
CONNECTOR , Replaced By: A3454298136
212
ELBOW FITTING AT CYLINDER
212
ELBOW FITTING AT CYLINDER
212
ELBOW FITTING , Replaced By: A3454297438
213
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
213
SEAL RING
213
NUT ,D 091466
215
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
215
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
215
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
218
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
218
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
221
CLAMP LINE MOUNTING
221
CLAMP LINE MOUNTING
222
BRACKET , Replaced By: A3464296040
222
BRACKET , Replaced By: A3464296040
223
CLAMP LINE MOUNTING
223
CLAMP LINE MOUNTING
223
CLAMP LINE MOUNTING
224
SCREW CABLE TO ALTERNATOR
224
SCREW CABLE TO ALTERNATOR
226
WASHER PLUG SOCKET TO BRACKET
226
WASHER PLUG SOCKET TO BRACKET
228
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
228
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
230
NUT
230
NUT
230
NUT
240
SCREW CROSS MEMBER TO SIDE MEMBERS
242
CLAMP COMPRESSED AIR LINE MOUNTING
244
BRACKET LINE MOUNTING
246
SCREW COMPRESSED AIR LINE MOUNTING
248
LOCK WASHER PLUG SOCKET
250
NUT TACHOGRAPH TO BRACKET
999
DIAPHRAGMTO 000 429 00 44
999
THRUST WASHERTO 000 429 00 44
999
LOCKTO 000 429 00 44
999
SPRING RETAINERTO 000 429 00 44
999
VALVE NIPPLETO 000 429 00 44
999
SPRINGTO 000 429 00 44
999
SPRINGTO 000 429 00 44
999
VALVE
999
ELBOW FITTING , Replaced By: A0004294638
999
REPAIR KITTO 003 429 02 44
999
SEAL RINGTO 321 434 00 01,D 047018
999
CUP 3/2-WAY VALVE WABCO
999
VALVE DISCTO 321 434 00 01,D 047018
999
SEALING CORD CROSS FITTING,CONNECTIONS: "20,30,40", Replaced By: A0029975648
999
BALL SOCKET PULL ROD TO LEVER
999
HANDLETO 000 434 23 01
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 30 01
999
SEAL RINGTO 000 434 30 01
999
SEAL RINGTO 000 434 30 01
999
SEAL RINGTO 000 434 30 01
999
LINE , Replaced By: A3444207737
999
LINE , Replaced By: A3444207837
999
LINE15X1.5 MM,376447
999
LINE15X1.5 MM,376447
999
LINE15X1.5 MM,376447
999
BUSHING , Replaced By: A3444340150
999
LINE FROM T-FITTING TO BRAKE BOOSTER, NOT USED
999
LINE FROM 3/2-WAY VALVE TO POWER CYLINDER, NOT USED
999
LINE FROM OVERFLOW VALVE TO TWO-WAY VALVE, NOT USED
999
CAP PRESSURE SWITCH, NOT USED
999
CAP PRESSURE SWITCH, NOT USED
999
HOSE THROUGH SIDE MEMBER,515732
999
PAD , 016,017,018 UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999 UP TO IDENT NO. 4 667210,FROM IDENT NO.SEE SA 25011
999
LEVER , USED WITH AIR BRAKE
999
LEVER CONTROL, USED WITH AIR BRAKE
999
BUSHING , USED WITH AIR BRAKE
999
LINE FROM DOUBLE FITTING TO AIR RESERVOIR 15X1.5 MM
999
LINE15X1.5 MM, INAPPLICABLE TO EXHAUST BRAKE,COMPRESSED AIR OPERATED
999
BEARING EXHAUST BRAKE SHAFT, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 589554
999
INTERMEDIATE SHAFT , USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 589554
999
INTERMEDIATE SHAFT
999
LINE FROM OVERFLOW VALVE TO FITTING 6X 0.7 MM
999
BEARING
999
LINE FROM FITTING TO OPERATING VALVE 6X 0.7 MM
999
LINE FROM OPERATING VALVE TO CONNECTION FITTING 6 X 0.7 MM
999
LINE FROM FITTING TO CONNECTION FITTING 6X 0.7 MM
999
LINE FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE 6 X 0.7 MM
999
CLIP ELECTRIC CABLE MOUNTING
999
LEVER ,GB718836
999
CONNECTOR AT AIR RESERVOIR, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
SHIM BRAKE PEDAL THRU CAB FLOOR, 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
999
BUSHING , USED WITH AIR BRAKE
999
SCREW , USED WITH AIR BRAKE
999
LEVER
999
CONNECTOR , UP TO IDENT NO. 4 667209, FROM IDENT NO. SEE SA 25011
999
BRAKE PEDAL , 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
999
BEARING , 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
999
LEVER , 016,017,018 UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999 UP TO IDENT NO. 4 667210,FROM IDENT NO.SEE SA 25011
999
INTERMEDIATE SHAFT , 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
999
GUIDE BRAKE PEDAL THRU CAB FLOOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 589554
999
BUSHING , 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
999
BRACKET BRAKE PEDAL THRU CAB FLOOR, 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
999
ROD , Replaced By: A3604302092
999
PISTON ROD
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
CONNECTOR , Replaced By: A3454307079
999
SCREW BRACKET MOUNTING
999
GLAND , Replaced By: A0019901967
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
