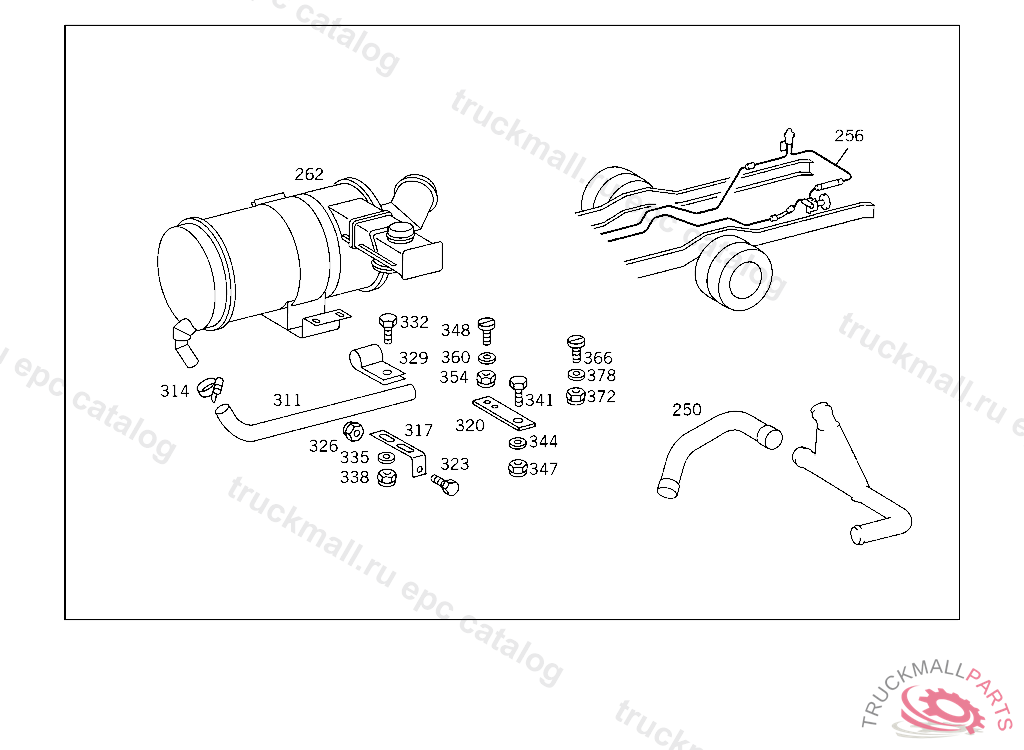

Поз.
Артикул
Описание
250
HOSE FROM BUBBLE SEPRATOR TO OIL COOLER
256
LINE FROM OIL TANK TO HOSE
262
AIR CLEANER
311
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
314
LOOM TIE AS REQUIRED
314
LOOM TIE AS REQUIRED
314
CLAMP AS REQUIRED
317
BRACKET LINE MOUNTING
317
BRACKET
317
BRACKET FUEL LINE
320
BRACKET FLEXIBLE SHAFT MOUNTING
323
SCREW , Replaced By: N304017010040
326
NUT BRACKET TO SIDE MEMBER,XB209706
329
CLAMP
332
SCREW CAP TO BRACKET
335
WASHER , Replaced By: N009021006208
338
NUT PUMP TO BRACKET
341
SCREW LINES TO BRACKET
344
WASHER BRACKET TO CAB REAR PANEL
347
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
348
SCREW CABLE TO ALTERNATOR
354
NUT PUMP TO BRACKET
360
WASHER , Replaced By: N009021006208
366
SCREW FUSE BOX TO APPARATUS PLATE
372
NUT PUMP TO BRACKET
378
WASHER , Replaced By: N009021006208
999
INTAKE PIPE
999
HOSE AIR CLEANER, 352.00/1,353,358 FROM CHASSIS 676465-4 153178 ALSO INSTALLED ON 500001-515186,TYP 360 FROM CHASSIS 676465-4 153178
999
HOSE
999
RUBBER BUFFER EXHAUST MUFFLER
999
LOOM TIE , Replaced By: A0009979990
999
LOOM TIE , Replaced By: N916018090000
999
AIR CLEANER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 632989, Replaced By: A3080947402
999
AIR CLEANERMANN
999
NUTTO 344 094 70 02
999
AIR CLEANER , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
999
AIR INTAKE PIPE
999
PIPE ELBOW , INAPPLICABLE TO SUPERCHARGING SYSTEM, Replaced By: A3445288708, +001A3529971382, +002A3449979890
999
AIR INTAKE PIPE
999
CLAMP MAIN CABLE HARNESS TO FIRE WALL
999
LOOM TIE. CLAMP
999
CLAMP. LOOM TIE90-110
999
CLAMP100-120
999
HOSE
999
AIR CLEANER , Replaced By: A3450948002
999
FILTER ELEMENT , Replaced By: A3440947104
999
AIR CLEANER , MANN DO BRASIL, Replaced By: A3450947902
999
AIR CLEANER , Replaced By: A3450947802
999
AIR CLEANER"MANN DO BRASIL", 030-041 FROM IDENT NO.: 679208
999
BRACKET BATTERY CABLE
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
PIPE ELBOW , 401,402,403,406,407,408,420,424 FROM CHASSIS 12245602 INAPPLICABLE TO SUPERCHARGING SYSTEM
999
BRACKET AIR CLEANER,604174
999
BRACKET
999
BRACKET AIR INTAKE CASE,483437
999
BRACKET ,604174
999
BRACKET , Replaced By: A3464296040
999
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO WATER PUMP
999
HOSE
999
SWITCH
