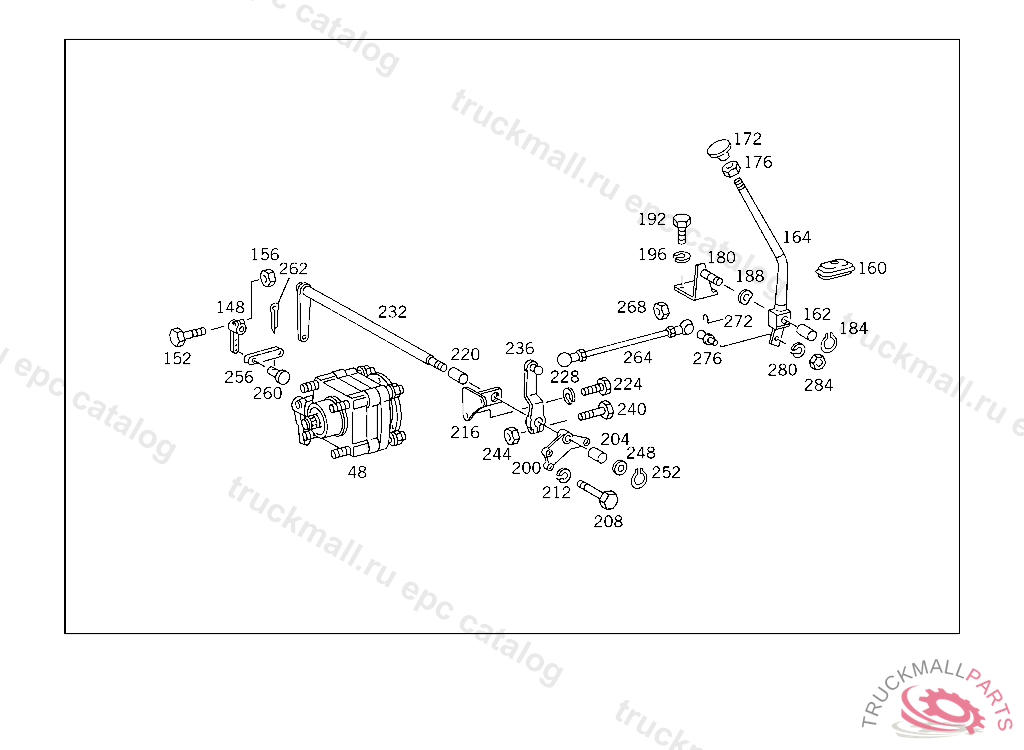

Поз.
Артикул
Описание
48
P.T.O.
48
P.T.O. , Replaced By: A0002600110
148
SHIFT LEVER
152
HEX. HEAD. SCREW LEVER TO SHIFTING SHAFT
156
NUT LEVER TO SHIFTING SHAFT
160
BOOT , Replaced By: A3222640096
160
BOOT SHIFT LEVER BEARING COVERING
160
BOOT SHIFT LEVER
162
BUSHING
162
BUSHING
164
SHIFT LEVER
172
HANDLE
172
HANDLE SHIFT LEVER
176
HEX. NUT. NUT SHIFT LEVER KNOB
180
BEARING BRACKET P.T.O. SHIFT LEVER
180
BEARING BRACKET , Replaced By: A3452607294
184
LOCK RING RELEASE YOKE TO BEARING BRACKET
188
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
192
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
196
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
200
BEARING BRACKET
204
BUSHING
208
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
212
LOCK WASHER , Replaced By: N912004010102
216
BEARING BRACKET LEVER TO TRANSMISSION
220
BUSHING PAWL TO ROD END,5 443047
220
BUSHING
224
SCREW CROSS MEMBER TO SIDE MEMBERS
228
LOCK WASHER , Replaced By: N912004010102
232
LEVER
236
LEVER
240
HEX. HEAD. SCREW LEVER TO SHIFTING SHAFT
244
NUT LEVER TO SHIFTING SHAFT
248
WASHER TIGHTENER PULLEY TO LEVER,D 124754
252
LOCK RING REVERSE SPEED STOP
256
CONNECTOR SHIFT LEVER TO LEVER
260
PIN CONNECTOR TO LEVER
262
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
264
PULL ROD
268
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
272
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
276
BALL PIVOT BELT TIGHTENER
280
LOCK WASHER , Replaced By: N912004010102
284
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
