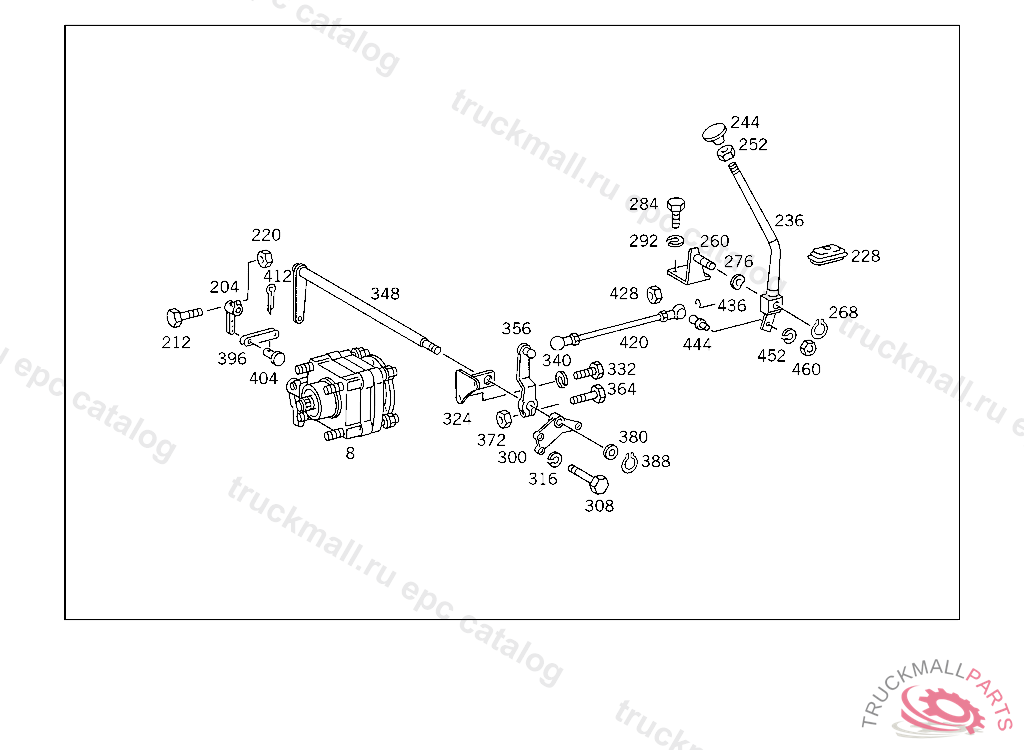

Поз.
Артикул
Описание
8
P.T.O.
8
P.T.O. , Replaced By: A0002600110
204
SHIFT LEVER
212
HEX. HEAD. SCREW LEVER TO SHIFTING SHAFT
220
NUT LEVER TO SHIFTING SHAFT
228
BOOT SHIFT LEVER
228
BOOT SHIFT LEVER BEARING COVERING
228
BOOT , Replaced By: A3222640096
236
SHIFT LEVER
244
HANDLE
244
HANDLE SHIFT LEVER
252
HEX. NUT. NUT SHIFT LEVER KNOB
260
BEARING BRACKET P.T.O. SHIFT LEVER
260
BEARING BRACKET , Replaced By: A3452607294
268
LOCK RING RELEASE YOKE TO BEARING BRACKET
276
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
284
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
292
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
300
BEARING BRACKET
308
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
316
LOCK WASHER , Replaced By: N912004010102
324
BEARING BRACKET LEVER TO TRANSMISSION
332
SCREW CROSS MEMBER TO SIDE MEMBERS
340
LOCK WASHER , Replaced By: N912004010102
348
LEVER
356
LEVER
364
HEX. HEAD. SCREW LEVER TO SHIFTING SHAFT
372
NUT LEVER TO SHIFTING SHAFT
380
WASHER TIGHTENER PULLEY TO LEVER,D 124754
388
LOCK RING REVERSE SPEED STOP
396
CONNECTOR SHIFT LEVER TO LEVER
404
PIN CONNECTOR TO LEVER
412
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
420
PULL ROD
420
PULL ROD , Replaced By: A3452607089
420
PULL ROD
428
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
436
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
444
BALL PIVOT BELT TIGHTENER
452
LOCK WASHER , Replaced By: N912004010102
460
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
GASKET , Replaced By: A3432640479
999
BUSHING
999
BUSHING PAWL TO ROD END,5 443047
999
BUSHING
999
SHIM AS REQUIRED 1.20 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
999
SHIM AS REQUIRED 1.00 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
999
SHIM AS REQUIRED 0.80 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
999
SHIM , Replaced By: A0002720776
999
GASKET , Replaced By: A0002642980
999
STUD BOLT , Replaced By: A0002610070
