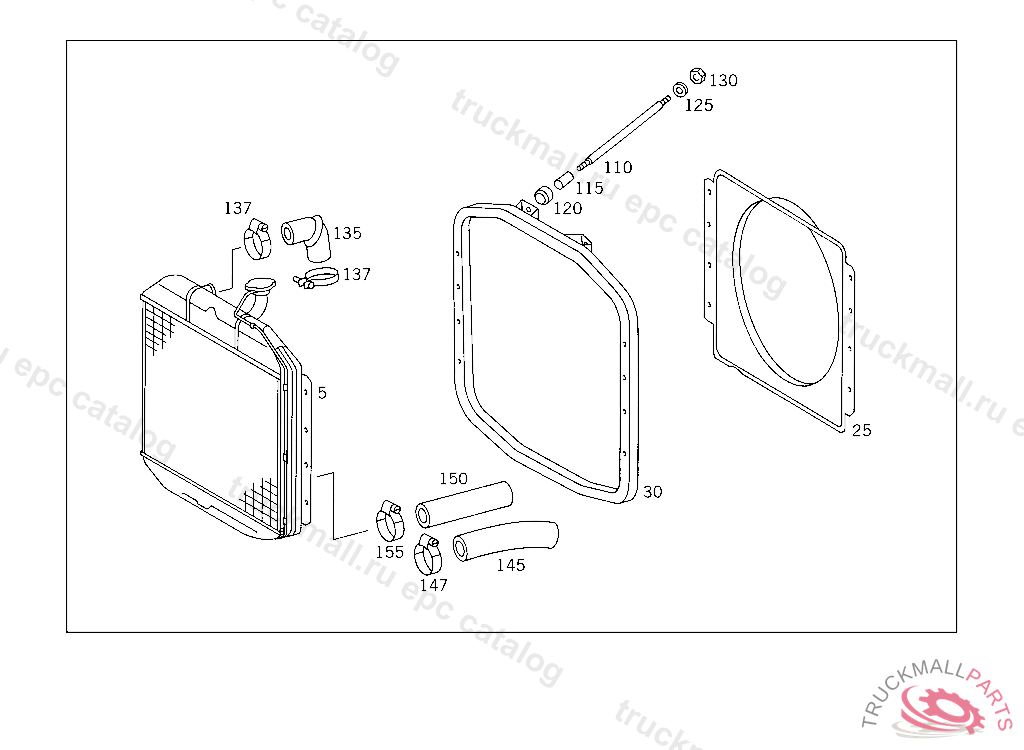

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR , Replaced By: A3455017101
5
RADIATOR , Replaced By: A3455017101
25
FAN SHROUD
25
FAN SHROUD , Replaced By: A3455050055
25
FAN SHROUD , Replaced By: A3455050055
30
SUPPORT RADIATOR BLOCK
30
SUPPORT , Replaced By: A3515000127
110
RADIATOR STRUT , Replaced By: A3445007045
110
RADIATOR STRUT LEFT, FROM CHASSIS 12000005
110
RADIATOR STRUT , Replaced By: A3455007245
110
RADIATOR STRUT , 032-041 FROM CHASSIS 248006, 132-141 FROM CHASSIS 249672 030-041 UP TO CHASSIS 587298 030-041 FROM CHASSIS 699836
110
RADIATOR STRUT , Replaced By: A3455007345
115
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
115
SPACER TUBE , Replaced By: A3199910540
120
RUBBER RING SHOCK ABSORBER MOUNTING
125
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
130
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
135
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
137
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
137
CLAMP. LOOM TIE (DRY FILTER)
137
LOOM TIE FROM THERMOSTAT TO RADIATOR FILLER NECK
137
LOOM TIE (DRY FILTER)
137
BRACKET
137
CLAMP COMPRESSED AIR LINE
137
LOOM TIE HOSE TO FILLER NECK
137
CLAMP , Replaced By: A0019972590
145
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
147
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
147
CLAMP HOSE TO FITTING AND TO OIL TANK
147
LOOM TIE. CLAMP HOSE TO HEATING PIPE
150
HOSE
155
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
155
CLAMP HOSE TO FITTING AND TO OIL TANK
155
LOOM TIE. CLAMP HOSE TO HEATING PIPE
