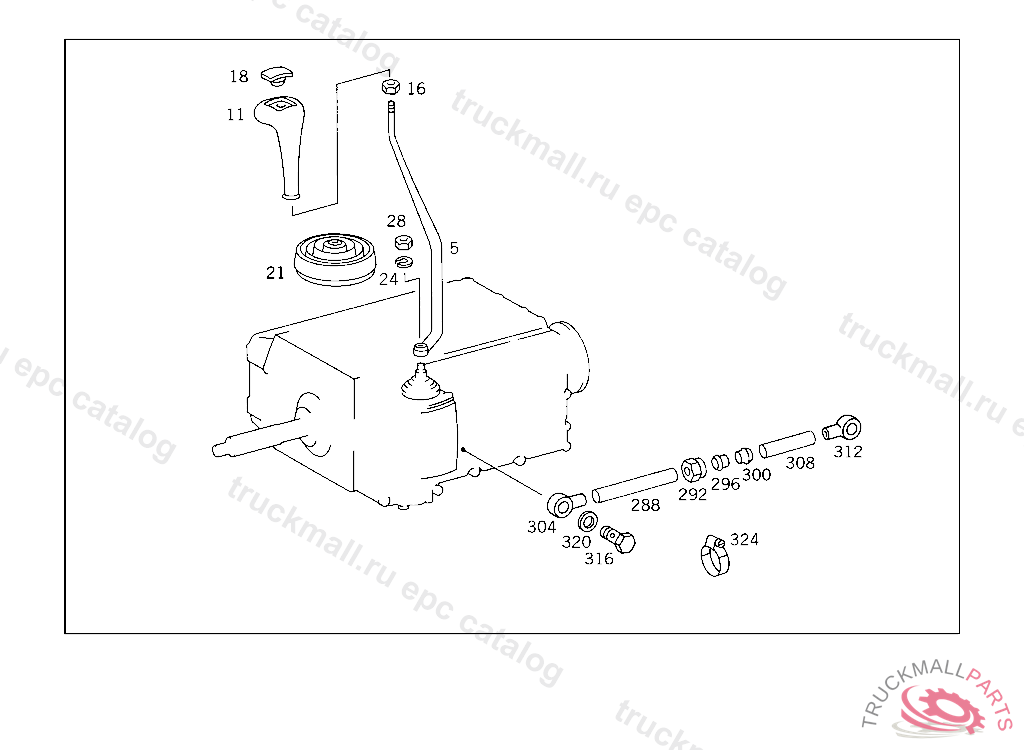

Поз.
Артикул
Описание
5
SHIFT LEVER
5
SHIFT LEVER
11
KNOB
16
HEX. NUT. NUT SHIFT LEVER KNOB
18
21
BOOT , Replaced By: A6882677096
21
BOOT SHIFT LEVER
24
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
28
NUT SPRING BOLT
288
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
292
UNION NUT LINE CONNECTION
296
GLAND LINE MOUNTING,5 9363655 812730
300
SLEEVE LINE CONNECTION
300
FITTING , Replaced By: N915062006000
304
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
308
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
312
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
316
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
316
HOLLOW SCREW LEFT DISTRIBUTOR,CONNECTION: "70"
320
SEAL RING LINE CONNECTION
324
LOOM TIE ELECTRIC CABLE MOUNTING
324
LOOM TIE , Replaced By: A3459977390
999
SNAP RING DOUBLE LEVER TO BRACKET
