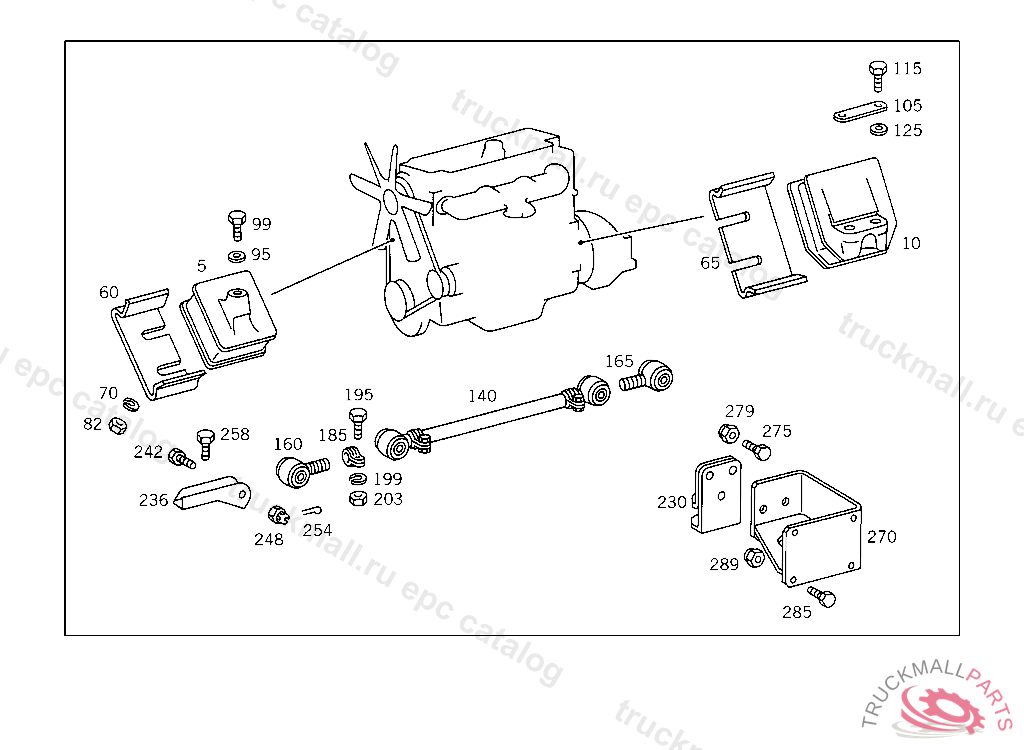

Поз.
Артикул
Описание
5
RUBBER MOUNTING ENGINE FRONT SUSPENSION
5
RUBBER MOUNTING ENGINE FRONT SUSPENSION
10
RUBBER MOUNTING
10
RUBBER MOUNTING
60
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
65
ENGINE STAY RUBBER MOUNTING TO ENGINE REAR SUPPORT
70
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
82
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
95
WASHER SUPPORTING ARM TO FRONT RUBBER MOUNTING
95
WASHER CONSOLE TO FRAME
99
SCREW SUPPORTING ARM TO FRONT RUBBER MOUNTING
105
LOCK
115
SCREW , Replaced By: N308676014012
115
SCREW CONSOLE TO SIDE MEMBER
125
WASHER CROSS MEMBER TO SUPPORT
140
ROD ENGINE ALONGSIDE FIXING
160
ROD ENDTO 345 240 71 25
165
ROD ENDTO 345 240 71 25
185
CLAMPTO 345 240 71 25
195
SCREW COVERING TO BRACKET
199
LOCK WASHER TAIL LAMP TO BRACKET
203
NUT COVER PLATE
230
BEARING BRACKET ENGINE ALONGSIDE FIXING
236
BEARING BRACKET
242
SCREW PULL ROD TO BEARING BRACKET
248
NUT PULL ROD TO BEARING BRACKET
254
COTTER PIN STRAP TO SUPPORT
270
BRACKET ENGINE ALONGSIDE FIXING
275
SCREW BEARING BRACKET TO SIDE MEMBER
279
NUT BRACKET TO LEFT SIDE MEMBER
285
SCREW , Replaced By: N304017010002
289
NUT , Replaced By: N910113010000
