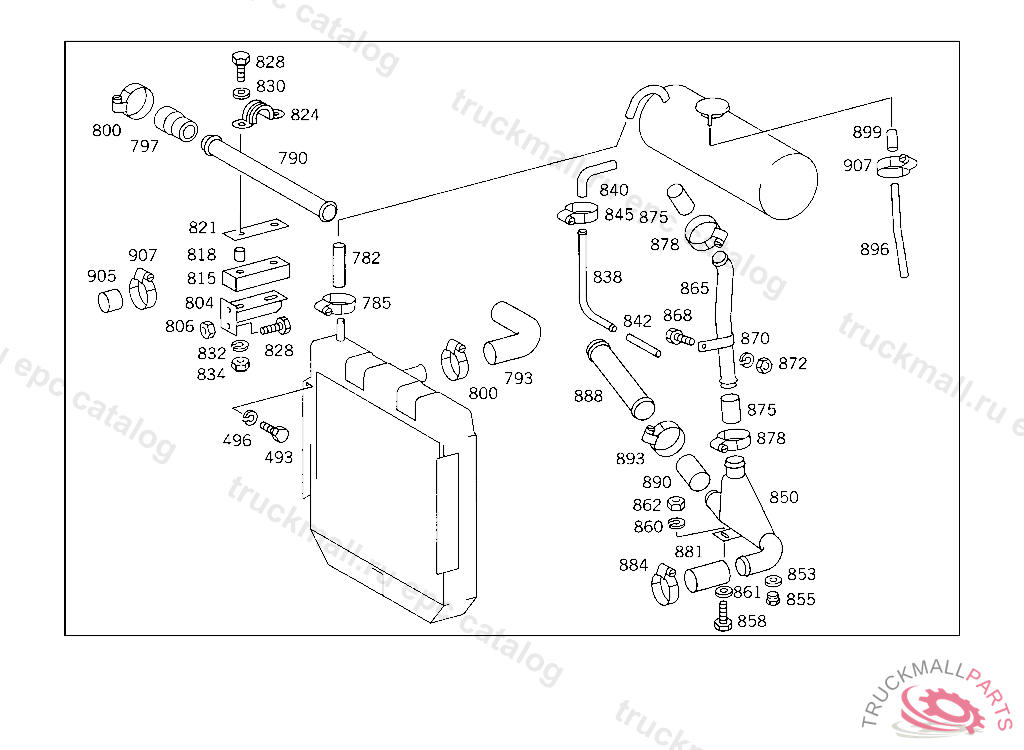

Поз.
Артикул
Описание
493
SCREW PLUG SOCKET TO FRAME
496
LOCK WASHER RAIL TO BATTERY SUPPORT
782
HOSE FROM EXPANSION TANK TO RADIATOR
785
CLAMP HOSE TO HEATING PIPE
785
CLAMP AIR COMPRESSOR
785
LOOM TIE HOSE TO HEATING PIPE
785
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
790
COOLING WATER PIPE FROM RADIATOR TO THERMOSTAT
790
LINE ,11373086, Replaced By: A3455017224, +001A3645017082
793
HOSE
793
HOSE BRACKET TO RETAINING CLAMP,JB796308
797
HOSE FROM THERMOSTAT TO RADIATOR
800
CLAMP. LOOM TIE (DRY FILTER)
800
CLAMP , Replaced By: N000000000672
800
LOOM TIE HOSE TO FILLER NECK
800
LOOM TIE (DRY FILTER)
800
CLAMP COMPRESSED AIR LINE
800
CLAMP HOSE FASTENING 50-70X13 MM
800
BRACKET
804
BRACKET COOLING WATER PIPE TO RADIATOR,TOP,11373086
804
BRACKET COOLING WATER PIPE TO RADIATOR,TOP,11373087
806
NUT
815
RUBBER PAD
818
SPACER TUBE BRACKET
821
BRACKET COOLING WATER LINE TU RUBBER PAD
824
CLAMP COOLING WATER LINE TU RUBBER PAD
828
SCREW LINES TO BRACKET
828
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
828
SCREW COLD START SYSTEM TO BRACKET
830
WASHER TRAILER PLUG SOCKET TO BRACKET
830
WASHER PLUG SOCKET TO BRACKET
832
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
832
LOCK WASHER RAIL TO BATTERY SUPPORT
834
NUT
834
NUT
838
BREATHER PIPE
840
HOSE
842
HOSE
845
LOOM TIE. CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
845
CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
845
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
845
LOOM TIE. CLAMP HOSE TO HEATING PIPE
845
CLAMP HOSE TO FITTING AND TO OIL TANK
850
SEPARATOR
853
SEAL RING VALVE TO VALVE,K 025179
855
SCREW PLUG WATER DRAIN
858
SCREW PLUG SOCKET TO FRAME
860
LOCK WASHER RAIL TO BATTERY SUPPORT
861
WASHER TRAILER PLUG SOCKET TO BRACKET
862
NUT
865
LINE FROM SEPARATOR TO TANK
865
LINE , Replaced By: A3445000789
865
LINE , Replaced By: A3445000789
868
SCREW PLUG SOCKET TO FRAME
870
LOCK WASHER RAIL TO BATTERY SUPPORT
872
NUT LEVER TO SHIFTING SHAFT
875
HOSE THERMOSTAT,HEATING CONNECTION 38 X 50 X 430
878
CLAMP COMPRESSED AIR LINE
878
BRACKET
878
LOOM TIE HOSE TO FILLER NECK
878
CLAMP , Replaced By: A0019972590
881
HOSE FROM RADIATOR TO OIL COOLER 210 MM,617872
884
LOOM TIE (DRY FILTER)
884
CLAMP HOSE FASTENING 50-70X13 MM
884
CLAMP , Replaced By: N000000000672
884
CLAMP. LOOM TIE (DRY FILTER)
888
LINE FROM BUBBLE SEPRATOR TO OIL COOLER
890
HOSE FROM RADIATOR TO OIL COOLER 210 MM,617872
893
LOOM TIE (DRY FILTER)
893
CLAMP HOSE FASTENING 50-70X13 MM
893
CLAMP. LOOM TIE (DRY FILTER)
893
CLAMP , Replaced By: N000000000672
893
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 50-70
896
BREATHER PIPE OVERFLOW
899
HOSE FROM RADIATOR TO WATER EXPANSION TANK
905
LOCKING CAP COOLING WATER LINE
907
LOOM TIE HOSE TO FILLER NECK
907
CLAMP , Replaced By: A0019972590
999
VALVE
999
COVER
999
LOOM TIE. CLAMP HOSE TO HEATING PIPE
999
CLAMP HOSE TO FITTING AND TO OIL TANK
