Поз.
Артикул
Описание

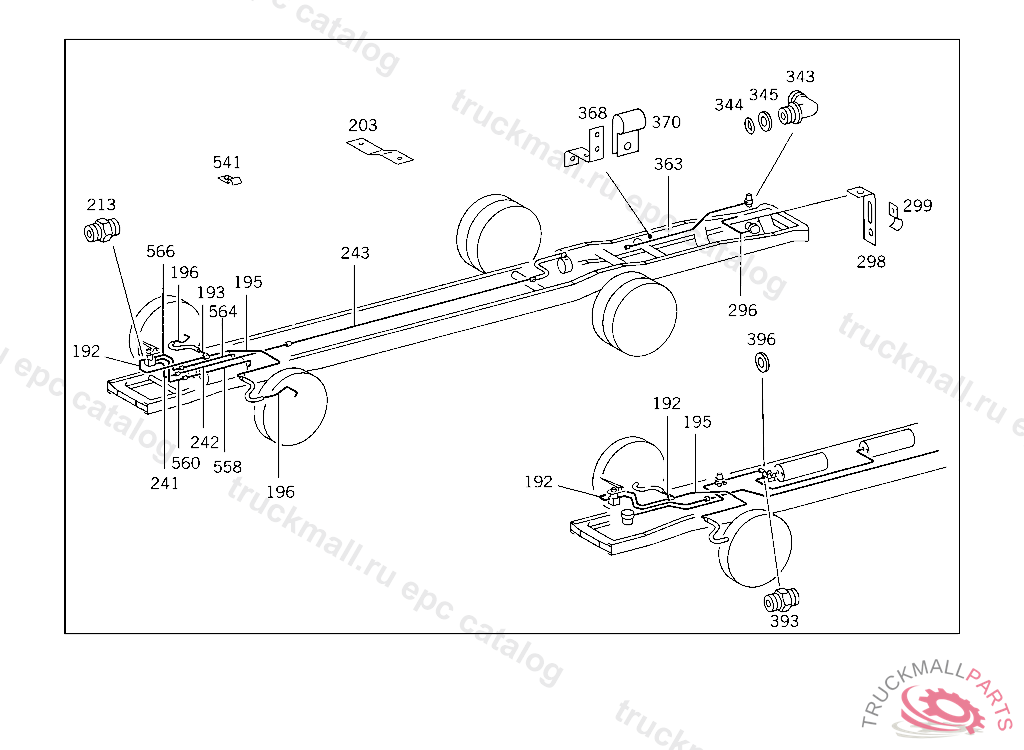

192
LINE FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING,793544
192
LINE FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
193
LINE FROM T-FITTING TO LEFT HOSE FITTING, USED WITH AIR BRAKE, FROM CHASSIS 589555
196
LINE FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
241
LINE
242
LINE DOUBLE LEVER TO THRUST SHACKLE, USED WITH AIR BRAKE,FROM CHASSIS 588186
243
LINE FROM FITTING TO FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
344
O-RING CHECK VALVE TO AIR RESERVOIR
345
THRUST RING CHECK VALVE TO AIR RESERVOIR
363
LINE BRAKE LINE COUPLING 12X1 7M, LENGTH AVAILABLE 3000 MM
393
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
393
FITTING , Replaced By: A0029971172
393
CONNECTOR AIR RESERVOIR "1"
396
THRUST RING CHECK VALVE TO AIR RESERVOIR
396
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
SEAL RING , Replaced By: N915045015100
999
PROTECTIVE CAP BRAKE BOOSTER
999
SPRING
999
CLAMP , Replaced By: N916016006200
999
CLAMP , Replaced By: N916016015203
999
CLAMP , Replaced By: N916016018204
999
CLAMP COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER
999
CLAMP COMPRESSED AIR LINE MOUNTING
999
FITTING
999
FITTING , Replaced By: N003901018004
999
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
999
CLAMP , Replaced By: A3129952420
999
BRACKET HAND-BRAKE/TRAILER-BRAKE COMPRESSEDAIR LINE
999
CLAMP
999
CLAMP HOSE TO RADIATOR BASE FRAME,B 669058
999
BRACKET FUEL LINE
999
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
999
CUPTO 000 431 34 14
999
RODTO 000 431 34 14
999
SPRINGTO 000 431 34 14
999
CUPTO 000 431 34 14
999
SCREW SHIFT CASE TO SLOTTED GATE
999
COTTER PIN
999
COTTER PIN STRAP TO SUPPORT
999
WASHER REDUCTION GEARING TO BRACKET
999
WASHER FUSE TO FUSE BOX
999
WASHER PLUG SOCKET TO BRACKET
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER GROUND CABLE
999
WASHER SUPPORT TO FRAME,D 127794
999
LOCK WASHER PLUG SOCKET
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
LOCK WASHER CLUTCH TO FLYWHEEL
999
LOCK WASHER DELIVERY AND SUCTION LINES TO PIPE CLAMP,1401150112256208
999
LOCK WASHER , Replaced By: N912004010102
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
SPRING WASHER CAB FLOOR
999
HEADLESS SETSCREW
999
EXPANSION PLUG
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW BRACKET TO TRANSMISSION CASE
999
SCREW VALVE BODY ASSEMBLY TO TRANSMISSION M 8X55
999
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
999
SCREW , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
999
SCREW CLAMP TO BRACKET
999
SCREW
999
SCREW SWITCH TO BRACKET 8X16
999
SCREW POWER CYLINDER TO BEARING BRACKET
999
SCREW COLD START SYSTEM TO BRACKET
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
999
SCREW PLUG SOCKET TO FRAME
999
SCREW LINES TO BRACKET
999
SCREW DAMPING PAD TO SUPPORT M 8X45,B 884219
999
SCREW , Replaced By: N304017010002
999
SCREW , Replaced By: N304017010040
999
SCREW WATER SEPARATOR
999
SCREW CROSS MEMBER TO SIDE MEMBERS
999
NUT MODULE TO HOUSING
999
NUT TACHOGRAPH TO BRACKET
999
NUT
999
NUT LEVER TO SHIFTING SHAFT
999
NUT , Replaced By: N304032008006
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
NUT BRACKET TO RETARDER
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
NUT SPRING BOLT
999
NUT PULL ROD
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N308675012000
999
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
NUT , Replaced By: N000936012005
999
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW STEERING COLUMN JACKET TUBE TO FLOOR PLATE
999
SCREW CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
GLAND LINE CONNECTION
999
CUTTING RING. GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901967
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901167
999
SCREW-IN FITTING OIL LINE CONNECTION
999
SCREW-IN FITTING AT PRESSURE REGULATOR
999
CONNECTION FITTING ,880809
999
CONNECTION FITTING , Replaced By: A0049971772
999
CONNECTION FITTING
999
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
CONNECTION FITTING , Replaced By: N003902018002
999
TOOTHED WASHER AT BRAKE LINE COUPLING
999
SEAL RING
999
SEALING RING. SEAL RING ENGINE BREATHING
999
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
SEAL RINGTO 006 997 00 72
999
SEAL RING LINE CONNECTION
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RINGTO 002 430 41 01
999
SEAL RINGTO 345 430 78 01
999
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
999
SCREW PLUG
999
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
999
SHEET METAL SCREW COMPRESSED AIR PIPING TO PEDESTAL
999
SCREW VALVE TO STEERING LOCK
999
SCREW BUZZER TO WINDOW LEVEL GIRDER
999
SCREW COMPRESSED AIR LINE MOUNTING
999
SCREW CAP TO BRACKET
999
SCREW CABLE TO ALTERNATOR
999
WASHER5,3
999
GREASE NIPPLE PROTECTIVE TUBE
999
YOKE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
999
NUT CHECK VALVE TO AIR RESERVOIR
999
NUT SUCTION LINE TO OIL PUMP
999
FITTING , Replaced By: A0009970171
999
FITTING , Replaced By: A0009907470
999
FITTING , Replaced By: A0009907070
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
999
COUNTERSUNK WASHER CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
CLAMPTO 005 420 99 18
999
CLAMP AS REQUIRED
999
PULL ROD FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
RING , Replaced By: A0005830296
999
LOCK WASHER CABLE TO FUSE BOX
999
LOCK WASHER RAIL TO BATTERY SUPPORT
999
NUT TWO-WAY VALVE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT ALTERNATOR TO SUPPORT
999
UNION NUT LINE CONNECTION
999
NUT. UNION NUT LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT LINE CONNECTION
999
UNION NUT LINE MOUNTING
999
UNION NUT BUTT SCREW CONNECTION
999
HOLLOW SCREW
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
SEAL RING , Replaced By: N007603012121
999
SEAL RING LINE CONNECTION
999
BANJO UNION FROM PARKING BRAKE VALVE,CONNECTION "23",TO FIRE WALL,746633
999
BANJO UNION HEATING CONNECTION,K 169122
999
THRUST RING BUTT SCREW CONNECTION
999
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
999
CLAMP LINE TO SIDE MEMBER
999
CLAMP COMPRESSED AIR LINE MOUNTING
999
CLAMP ,K 147121, Replaced By: N000000000319
999
CLAMP BATTERY CABLE MOUNTING
999
CLAMP BRAKE LINE TO CAB SIDE MEMBER
999
CLAMP LINE MOUNTING
999
CLAMP BREATHER LINE TO BRACKET
999
CLAMP PIPE LINE TO CONDENSER
999
HOSE FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION: "12"
999
HOSE RIGHT COMBINATION CYLINDER,CONNECTION: "11","12",11X750 MM,B 646985
