Поз.
Артикул
Описание

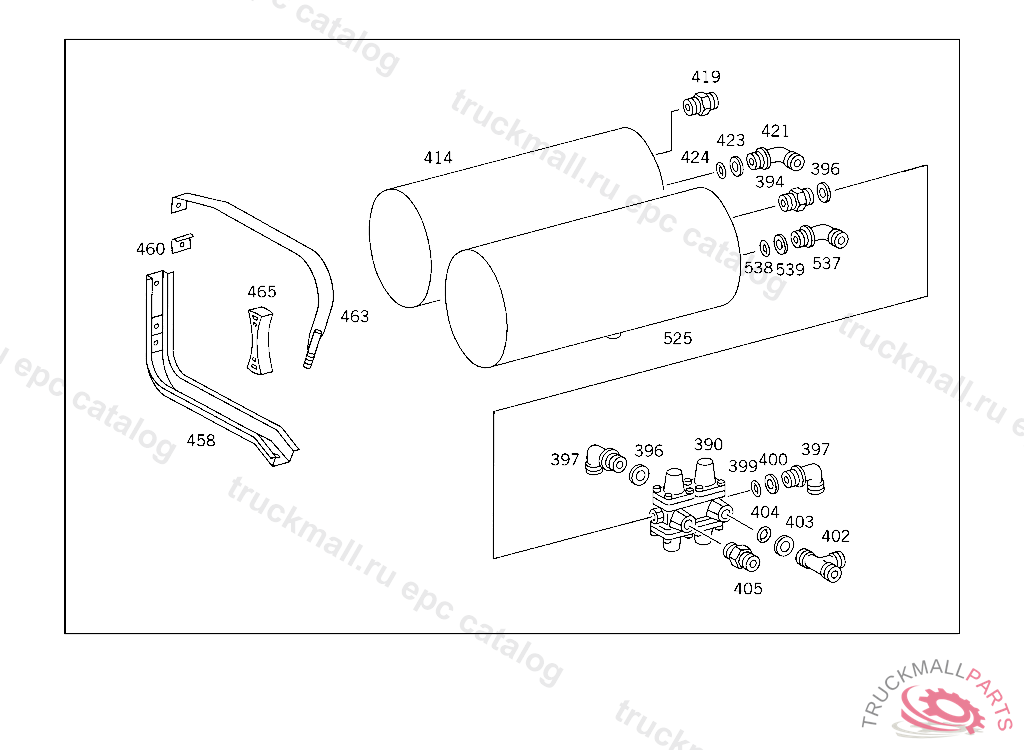

390
VALVE , Replaced By: A0024314006
390
VALVE , Replaced By: A3454317406
394
FITTING LOCKING VALVE
396
THRUST RING CHECK VALVE TO AIR RESERVOIR
396
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
397
ELBOW FITTING , Replaced By: A3849907071
399
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
400
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
402
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
402
FITTING SHIFT VALVE,CONNECTION: "11"
403
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
404
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
405
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
405
FITTING ,5 513147, Replaced By: A0029978172
405
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
414
RESERVOIR
414
RESERVOIR , Replaced By: A3454308205
414
RESERVOIR INSIDE
419
CONNECTOR AIR RESERVOIR "1"
419
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
419
FITTING , Replaced By: A0029971172
421
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
421
FITTING , Replaced By: A0009907771
423
THRUST RING CHECK VALVE TO AIR RESERVOIR
424
O-RING CHECK VALVE TO AIR RESERVOIR
458
CONSOLE , 674067
460
PLATE STRAP
463
STRAP AIR RESERVOIR TO CONSOLE
465
BASE AIR RESERVOIR TO CONSOLE
525
RESERVOIR INSIDE
525
RESERVOIR
525
RESERVOIR , Replaced By: A3454308205
537
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
537
FITTING , Replaced By: A0009907771
538
O-RING CHECK VALVE TO AIR RESERVOIR
539
THRUST RING CHECK VALVE TO AIR RESERVOIR
539
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
CLAMP COMPRESSED AIR LINE MOUNTING
999
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
999
WASHER REDUCTION GEARING TO BRACKET
999
WASHER FUSE TO FUSE BOX
999
WASHER PLUG SOCKET TO BRACKET
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER GROUND CABLE
999
WASHER
999
LOCK WASHER PLUG SOCKET
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
LOCK WASHER CLUTCH TO FLYWHEEL
999
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
999
SCREW (ARTICULATED ROD)
999
SCREW CLAMP TO BRACKET
999
SCREW SWITCH TO BRACKET 8X16
999
SCREW POWER CYLINDER TO BEARING BRACKET
999
SCREW COLD START SYSTEM TO BRACKET
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
999
SCREW PLUG SOCKET TO FRAME
999
SCREW LINES TO BRACKET
999
SCREW DAMPING PAD TO SUPPORT M 8X45,B 884219
999
NUT TACHOGRAPH TO BRACKET
999
NUT
999
NUT , Replaced By: N304032008006
999
NUT BRACKET TO RETARDER
999
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW STEERING COLUMN JACKET TUBE TO FLOOR PLATE
999
SCREW CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
GLAND LINE CONNECTION
999
CUTTING RING. GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901967
999
GLAND LINE CONNECTION
999
SCREW-IN FITTING OIL LINE CONNECTION
999
CONNECTION FITTING ,880809
999
CONNECTION FITTING , Replaced By: A0049971772
999
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
999
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
999
TOOTHED WASHER AT BRAKE LINE COUPLING
999
SEALING RING. SEAL RING ENGINE BREATHING
999
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
SEAL RINGTO 006 997 00 72
999
SEAL RING LINE CONNECTION
999
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
999
SCREW PLUG
999
SHEET METAL SCREW BRACKET TO CAB 4,2X13
999
SCREW BUZZER TO WINDOW LEVEL GIRDER
999
SCREW COMPRESSED AIR LINE MOUNTING
999
SCREW FUSE BOX TO APPARATUS PLATE
999
SCREW CAP TO BRACKET
999
SCREW CABLE TO ALTERNATOR
999
NUT CHECK VALVE TO AIR RESERVOIR
999
NUT SUCTION LINE TO OIL PUMP
999
FITTING , Replaced By: A0009907470
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
NUT ELECTRONIC ACCELERATOR PEDAL
999
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
999
COUNTERSUNK WASHER CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
RING , Replaced By: A0005830296
999
LOCK WASHER RAIL TO BATTERY SUPPORT
999
NUT TWO-WAY VALVE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT BRACKET TO SIDE MEMBER,XB209706
999
NUT ALTERNATOR TO SUPPORT
999
UNION NUT LINE CONNECTION
999
NUT. UNION NUT LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT LINE CONNECTION
999
UNION NUT BUTT SCREW CONNECTION
999
HOLLOW SCREW
999
HOLLOW SCREW , Replaced By: N915036010108
999
SEAL RING LINE CONNECTION
999
BANJO UNION FROM PARKING BRAKE VALVE,CONNECTION "23",TO FIRE WALL,746633
999
BANJO UNION HEATING CONNECTION,K 169122
999
CLAMP ,K 147121, Replaced By: N000000000319
999
CLAMP BRAKE LINE TO CAB SIDE MEMBER
999
CLAMP LINE MOUNTING
999
CLAMP BREATHER LINE TO BRACKET
999
HOSE FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION: "12"
999
HOSE RIGHT COMBINATION CYLINDER,CONNECTION: "11","12",11X750 MM,B 646985
