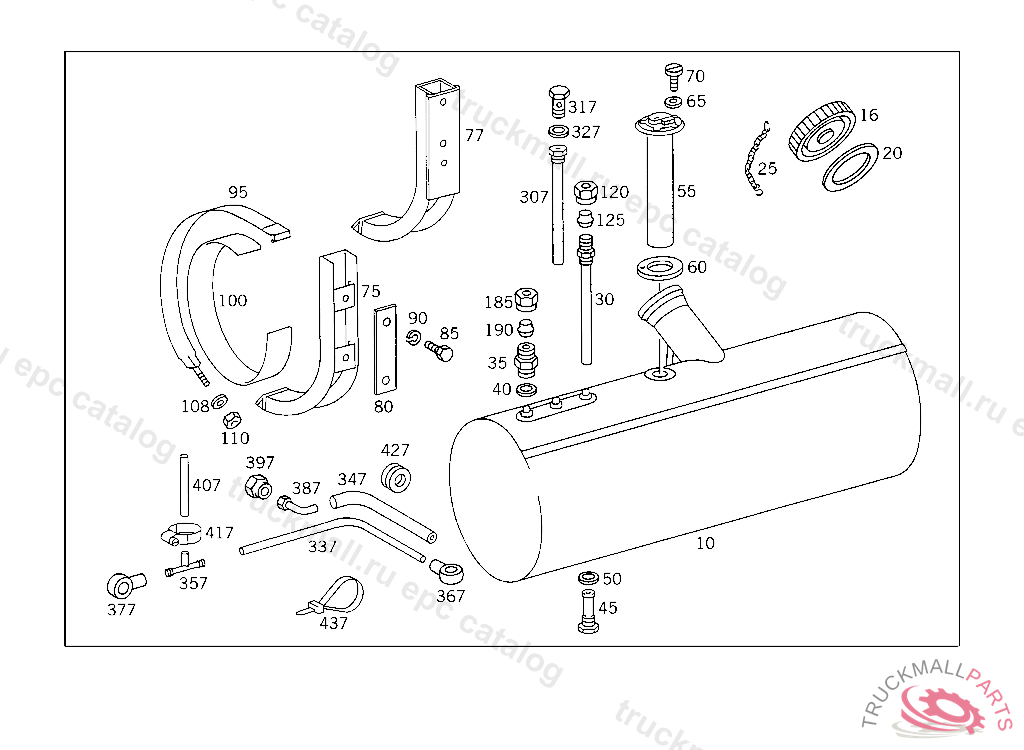

Поз.
Артикул
Описание
10
FUEL TANK LESS SENDER UNIT,659794
10
FUEL TANK LESS SENDER UNIT
10
FUEL TANK LESS SENDER UNIT
16
FILLER CAP
20
SEAL RING
25
CHAIN FILLER CAP
30
RISING PIPE , 344.058 UP TO SHASSIS 659793
35
FITTING
40
SEAL RING AT TANK
45
FUEL STRAINER
50
SEAL RING FUEL STRAINER SCREEN
55
SENDER UNIT TANK
55
SENDER UNIT TANK
55
SENDER UNIT , Replaced By: A3455427917
55
SENDER UNIT , Replaced By: A3455427617
60
GASKET SENDER UNIT AND COVER TO FUEL TANK
65
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
70
SCREW COMPRESSED AIR LINE MOUNTING
75
SUPPORT WITH SEAL CONE
77
SUPPORT FUEL TANK,659794
80
SHIM CONSOLE TO SIDE MEMBER,KB860814
85
SCREW BATTERY CASE
90
LOCK WASHER SUPPORT TO SIDE MEMBER
95
STRAP FUEL TANK
100
SHIM FUEL TANK TO CONSOLE 60 MM
100
CARDBOARD FUEL TANK TO SUPPORT, 344.058 UP TO SHASSIS 659793
108
WASHER SUPPORT TO FRAME,D 127794
110
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
120
NUT. UNION NUT RETURN
125
SEAL CONE , 344.058 UP TO SHASSIS 659793
185
NUT. UNION NUT RETURN
190
SEAL CONE , 344.058 UP TO SHASSIS 659793
307
RISING PIPE ,659794
317
HOLLOW SCREW FUEL LINE TO TANK,659794
327
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
327
SEAL RING AT TANK
327
SEAL RING AT TANK
337
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
347
INSULATING HOSE
347
INSULATING HOSE , ORDER BY THE METER
357
DISTRIBUTOR LEAK LINE,659794
367
BANJO UNION , Replaced By: N915052008019
377
BANJO UNION FEED 8/14 MM,659794
387
CONNECTOR
397
NUT. UNION NUT RETURN
407
HOSE , ORDER BY THE METER
407
HOSE , ORDER BY THE METER
407
HOSE , Replaced By: A3769978182
407
HOSE , Replaced By: A3449977582
417
CLAMP LINE MOUNTING
427
GROMMET LINE PASSAGE AT SIDE MEMBER
437
LOOM TIE ELECTRIC CABLE MOUNTING
437
LOOM TIE , Replaced By: A3459977390
