Поз.
Артикул
Описание

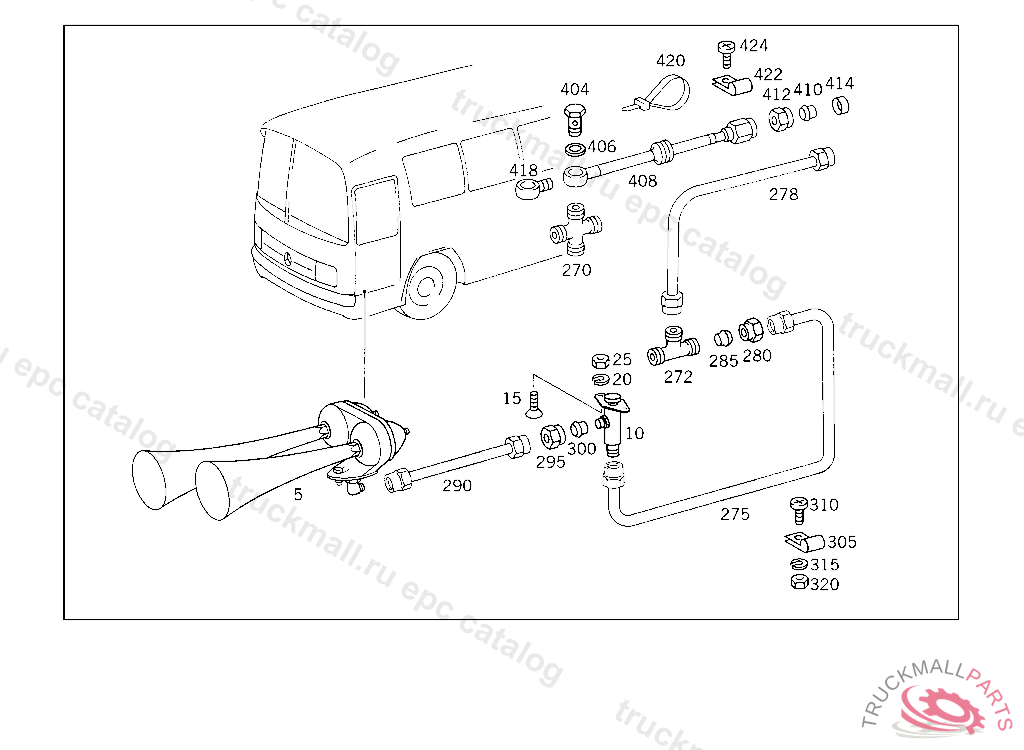

5
AIR HORN , Replaced By: A3645427021
5
AIR HORN , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3445427021
5
HORN , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3445427021
5
AIR HORN , Replaced By: A6965420021
5
AIR HORN , Replaced By: A6965420021
10
VALVE
10
VALVE , Replaced By: A3215420028
15
SCREW VALVE TO FLOOR
20
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
25
NUT
270
DISTRIBUTOR ,47018
272
T-FITTING ,627034
272
T-FITTING FITTING,5 461950
275
LINE FROM T-FITTING TO VALVE 6X0.7 MM
278
LINE FROM AIR RESERVOIR TO T-FITTING 6X0.7 MM,47019
280
UNION NUT
285
GLAND , Replaced By: A0019901667
290
LINE AIR HORN 6X0.7 MM
290
LINE , Replaced By: A3644208736
295
UNION NUT
300
GLAND , Replaced By: A0019901667
305
CLAMP COMPRESSED AIR LINE MOUNTING
310
SCREW COMPRESSED AIR LINE MOUNTING
315
LOCK WASHER PLUG SOCKET
320
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
404
HOLLOW SCREW LEFT DISTRIBUTOR,CONNECTION: "70"
406
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
408
LINE FROM VALVE TO DISTRIBUTOR
410
GLAND , Replaced By: A0019901667
412
UNION NUT
414
BUSHING , Replaced By: N915062004000
414
SLEEVE LEAK LINE
418
BANJO UNION FROM DISTRIBUTOR TO VALVE
420
CLAMP HOSE TO FILLER NECK
420
LOOM TIE ELECTRIC CABLE MOUNTING
420
LOOM TIE , Replaced By: A3459977390
422
CLAMP SENSOR CABLE TO FRONT AXLE
424
SCREW CAP TO BRACKET
999
CUP 3/2-WAY VALVE WABCO
999
HANDLETO 000 434 23 01
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
ELECTRIC CABLE , Replaced By: A3215400032
999
ELECTRIC CABLE HORN AND STOP LIGHT SWITCH
999
ELECTRIC CABLE
999
LINE FROM CROSS FITTING TO EMERGENCY RELEASE VALVE 8X0.7 MM, FROM CHASSIS 13024440 ALSO INSTALLED ON 13024165,13024296,13024311
999
RELAY , THE OLD PART MUST NO LONGER BE INSTALLED
999
HORN
999
LINE FROM PRESSURE RELIEF VALVE TO FOOT OPERATED VALVE 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
999
LINE AIR HORN, NOT USED
999
ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
LINE8X0.7 MM
999
LINE FROM T-FITTING TO T-FITTING 8X0.7 MM
999
SCREW BRACKET MOUNTING
999
PIN BUSHING
