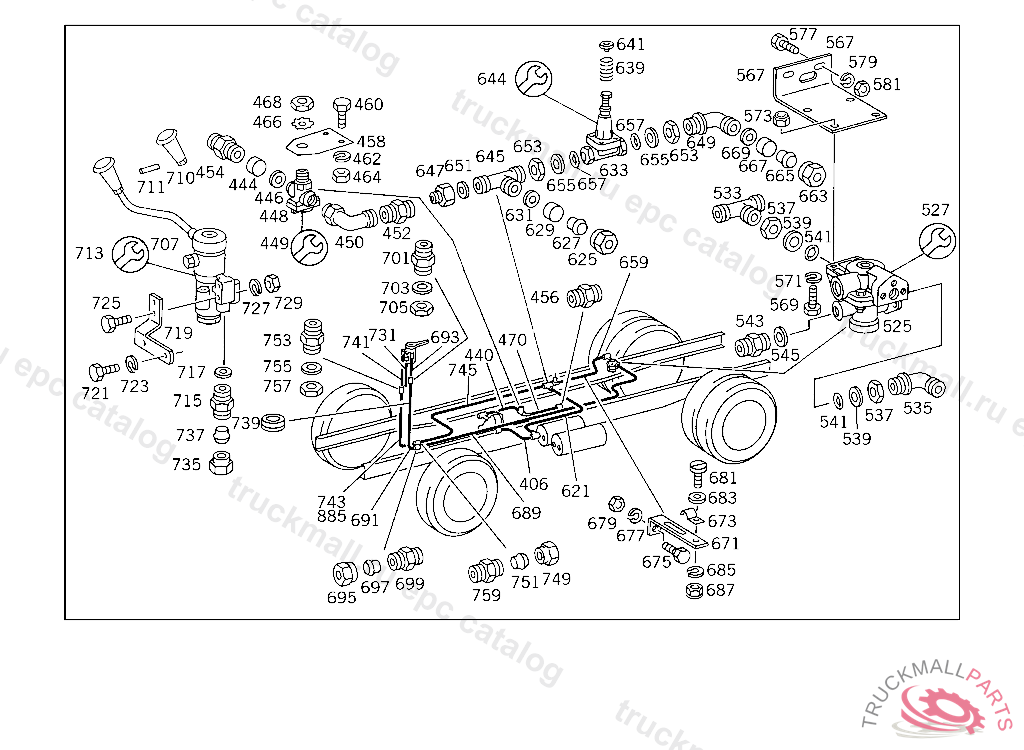

Поз.
Артикул
Описание
406
LINE FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" 15X1.5 MM
440
LINE FROM BRAKE-BOOSTER T-FITTING TO TWO-WAY VALVE 15X1.5 MM,549429
444
THRUST RING BUTT SCREW CONNECTION
446
SEAL RING , Replaced By: N007603012121
448
VALVE TWO-WAY VALVE, B03543/06/08 UP TO IDENT NO.: 549429
449
REPAIR KIT , B03543/06/08 UP TO IDENT NO.: 549429
450
ELBOW FITTING AT TWO-WAY VALVE
452
CONNECTOR AT TWO-WAY VALVE, B03543/06/08 UP TO IDENT NO.: 549429
454
CONNECTOR TWO-WAY VALVE,CONNECTIONS: "1","2"
456
CONNECTOR AT TWO-WAY VALVE
458
BRACKET , B03543/06/08 UP TO IDENT NO.: 549429
460
SCREW , Replaced By: N304017010040
462
LOCK WASHER , Replaced By: N912004010102
464
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
466
TOOTHED WASHER TWO-WAY VALVE TO BRACKET
468
NUT CHECK VALVE TO AIR RESERVOIR
470
ELECTRIC CABLE FROM CONNECTION FITTING TO TWO-WAY VALVE 6X0.7 MM,549429
525
BRAKE VALVE CONTROL VALVE,549429
527
REPAIR KITTO 001 431 56 05
533
T-FITTING , Replaced By: N074317000100
533
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
535
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
535
FITTING
537
NUT CHECK VALVE TO AIR RESERVOIR
539
THRUST RING CHECK VALVE TO AIR RESERVOIR
539
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
541
O-RING CHECK VALVE TO AIR RESERVOIR
543
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
543
FITTING , Replaced By: A0009970171
545
SEAL RING LINE CONNECTION
567
BRACKET TRAILER CONTROL VALVE
569
SCREW , Replaced By: N304017010002
571
LOCK WASHER , Replaced By: N912004010102
573
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
577
SCREW , Replaced By: N304017010002
579
LOCK WASHER , Replaced By: N912004010102
581
HEX. NUT. NUT SHIFT LEVER KNOB
621
LINE FROM AIR RESERVOIR T-FITTING TO OVERFLOW VALVE 15X1.5 MM
625
UNION NUT BUTT SCREW CONNECTION
627
GLAND LINE CONNECTION
629
THRUST RING BUTT SCREW CONNECTION
631
SEAL RING , Replaced By: N007603012121
633
VALVE (OVERFLOW VALVE) WESTINGHOUSE
639
SPRINGTO 000 429 63 44,000 429 59 44
641
SPRING RETAINERTO 000 429 63 44,000 429 59 44
644
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
645
T-FITTING , Replaced By: N074317000100
645
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
647
FITTING AIR BRAKE CYLINDER,549430
649
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
649
FITTING
651
SEAL RING , Replaced By: N007603012121
653
NUT CHECK VALVE TO AIR RESERVOIR
655
THRUST RING CHECK VALVE TO AIR RESERVOIR
655
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
657
O-RING CHECK VALVE TO AIR RESERVOIR
659
LINE FROM OVERFLOW VALVE TO CONTROL VALVE
659
LINE , Replaced By: A3454205326
663
UNION NUT BUTT SCREW CONNECTION
665
GLAND LINE CONNECTION
667
THRUST RING BUTT SCREW CONNECTION
669
SEAL RING , Replaced By: N007603012121
671
BRACKET , Replaced By: A3184280240
673
CLAMP , Replaced By: A3129952420
675
SCREW BRACKET TO INTAKE MANIFOLD
677
LOCK WASHER RAIL TO BATTERY SUPPORT
679
NUT LEVER TO SHIFTING SHAFT
681
SCREW CABLE TO ALTERNATOR
683
WASHER PLUG SOCKET TO BRACKET
685
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
687
NUT
689
LINE FROM CONNECTOR AT TWO-WAY VALVE TO CONNECTION FITTING 8X0.7 MM
691
LINE FROM CONNECTION FITTING TO BULKHEAD FITTING 8X0.7 MM
691
LINE , Replaced By: A3454307366
693
LINE FROM HAND BRAKE VALVE,"A" CONNECTION, TO BULKHEAD FITTING 8X0.7 MM
693
LINE , Replaced By: A3454309466
695
UNION NUT LINE CONNECTION
697
GLAND LINE CONNECTION
699
FITTING , Replaced By: A0039978972
699
CONNECTION FITTING ,880809
701
FITTING HYDRAULIC LINE TO BRACKET,K 130132
701
FITTING
703
LOCK WASHER SUPPORT TO SIDE MEMBER
705
NUT ELECTRONIC ACCELERATOR PEDAL
707
VALVE HAND BRAKE VALVE WABCO
707
VALVE , Replaced By: A3454307581
707
VALVE , Replaced By: A3454307581
707
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3454307481
710
HANDLETO 345 430 75 81
711
PINTO 345 430 75 81
713
REPAIR KITTO 345 430 75 81
713
REPAIR KIT IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 000 586 23 43,
713
REPAIR KIT , Replaced By: A0034301081
715
SCREW-IN FITTING LINE CONNECTION
717
SEAL RING
719
BRACKET HAND BRAKE VALVE
721
SCREW PLUG SOCKET TO FRAME
723
LOCK WASHER RAIL TO BATTERY SUPPORT
725
SCREW POWER CYLINDER TO BEARING BRACKET
727
LOCK WASHER RAIL TO BATTERY SUPPORT
729
NUT LEVER TO SHIFTING SHAFT
731
LINE HAND BRAKE VALVE BLEEDING 8X0.7 MM
731
LINE , Replaced By: A3454309566
735
UNION NUT LINE CONNECTION
737
GLAND LINE CONNECTION
739
GROMMET TACHOGRAPH OR SPEEDOMETER
741
LINE FROM CONNECTION FITTING TO BULKHEAD FITTING 8X0.7 MM
741
LINE , Replaced By: A3454307766
743
LINE FROM BULKHEAD FITTING AT FIRE WALL TO CONNECTION FITTING 8X0.7 MM
743
LINE , Replaced By: A3454307566
745
LINE FROM CONNECTION FITTING TO OVERFLOW VALVE 8X0.7 MM
749
UNION NUT LINE CONNECTION
751
GLAND LINE CONNECTION
753
FITTING HYDRAULIC LINE TO BRACKET,K 130132
753
FITTING
755
LOCK WASHER SUPPORT TO SIDE MEMBER
757
NUT ELECTRONIC ACCELERATOR PEDAL
759
CONNECTION FITTING ,880809
885
LINE FROM FIRE WALL TO HAND BRAKE VALVE, CONNECTION: 11,21
999
VALVE SEAT RINGWABCO,5 433388
999
DIAPHRAGMTO 001 429 48 44
999
T-FITTING AIR RESERVOIR I
999
REPAIR KIT HAND BRAKE VALVE TO 364 430 72 81,JB793544
999
REPAIR KITTO 001 430 23 81, NOT USED
999
DIAPHRAGMTO 000 429 63 44
999
VALVE ,4 390315
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
VALVE. PRESSURE REGULATOR ,FB486597
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
ELBOW FITTING AT PRESSURE REGULATOR,462277
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
REPAIR KIT , Replaced By: A0034303381
999
FITTING DELIVERY LINE TO PUMP
999
REPAIR KITTO 001 430 58 81/59 81,WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
999
REPAIR KITTO 001 431 01 81, USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
BRACKET , Replaced By: A3454298640
999
ELBOW FITTING , Replaced By: A3849907071
999
BRACKET FUEL LINE
999
CLAMP , Replaced By: A1109950401
999
AIR HORN , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3445427021
999
ELBOW FITTING , Replaced By: A3454297938
999
AIR HORN , Replaced By: A3645427021
999
AIR CLEANER. TIRE INFLATOR CYLINDER ,511032
999
LINE FROM DOUBLE FITTING TO THREE-WAY VALVE
999
LINE
999
LINE INSIDE AND OUTSIDE AIR RESERVOIRS 15X1.5 MM, 001,002,003,021,024,025 FROM CHASSIS 002984,005,006,007,008,033 FROM CHASSIS 000864 USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
LINE FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" 15X1.5 MM, 001,002,003,021,024,025 FROM CHASSIS 002984,005,006,007,008,033 FROM CHASSIS 000864 USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
LINE FROM AIR RESERVOIR II TO HAND BRAKE VALVE 15X1.5 MM, 001,002,003,021,024,025 FROM CHASSIS 002984,005,006,007,008,033 FROM CHASSIS 000864 USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
LINE COMBINATION CYLINDER T-FITTING 15X1.5 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE COMBINATION CYLINDER T-FITTING
999
CONNECTOR AT AIR RESERVOIR, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
LINE FROM PRESSURE REGULATOR TO DOUBLE FITTING 15X1.5 MM,4 13051
999
LINE ELBOW FITTING TO PRESSURE REGULATOR
999
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
999
LINE FROM AIR RESERVOIR TO OPERATING VALVE 6 X 0.7 MM
999
BRACKET , Replaced By: A3454318440
999
ELBOW FITTING AT OVERFLOW VALVE
999
CLAMP PRESSURE-REGULATOR-TO-AIR-RESERVOIR LINE
999
FITTING LOCKING VALVE
999
FITTING VALVE TO VALVE
999
LINE
999
LINE FROM FIRE WALL TO HAND BRAKE VALVE, CONNECTION: "12",746633
999
VALVE (HAND BRAKE VALVE)
999
BRACKET REAR AXLE RELAY VALVE
999
ELBOW FITTING AT OVERFLOW VALVE
