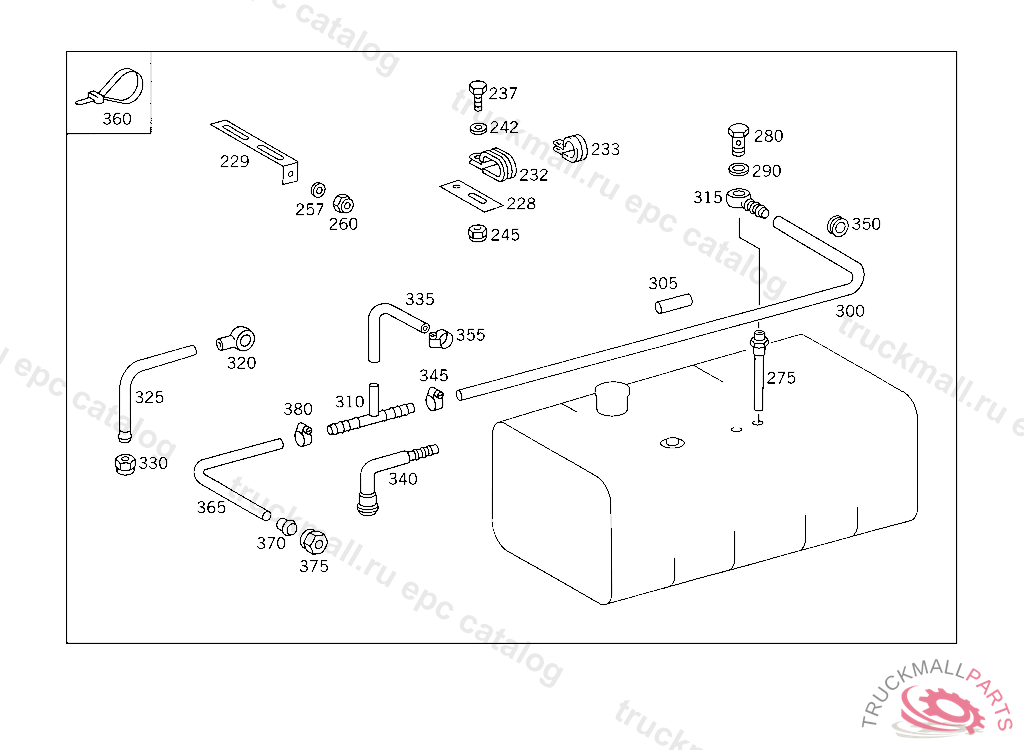

Поз.
Артикул
Описание
228
BRACKET AT CROSS MEMBER
229
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
232
CLAMP FUEL LINES TO BRACKET
233
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
237
SCREW CLAMP TO BRACKET
242
WASHER , Replaced By: N009021006208
245
NUT PUMP TO BRACKET
257
WASHER BRACKET TO CAB REAR PANEL
260
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
275
RISING PIPE ,LB882463
280
HOLLOW SCREW FUEL LINE TO TANK,659794
290
SEAL RING AT TANK
290
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
300
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
305
INSULATING HOSE , ORDER BY THE METER
305
INSULATING HOSE CHECK VALVE,CONNECTION "2"
310
DISTRIBUTOR LEAK LINE,659794
315
BANJO UNION , Replaced By: N915052008019
320
BANJO UNION FEED 8/14 MM,659794
325
CONNECTOR
330
NUT. UNION NUT RETURN
335
HOSE , ORDER BY THE METER
335
HOSE , Replaced By: A3769978182
340
ELBOW FITTING FUEL LINES TO FITTING CONEXAO ESPIGAO - "L"
340
CONNECTOR
345
CLAMP LINE MOUNTING
355
CLAMP LINE MOUNTING
360
LOOM TIE ELECTRIC CABLE MOUNTING
360
LOOM TIE , Replaced By: A3459977390
365
LINE FUEL LINE TO CYLINDER HEAD,689885
370
SEAL CONE FUEL LINE TO CYLINDER HEAD,689885
375
UNION NUT
380
CLAMP LINE MOUNTING
999
SENDER UNIT , Replaced By: A3505427017
