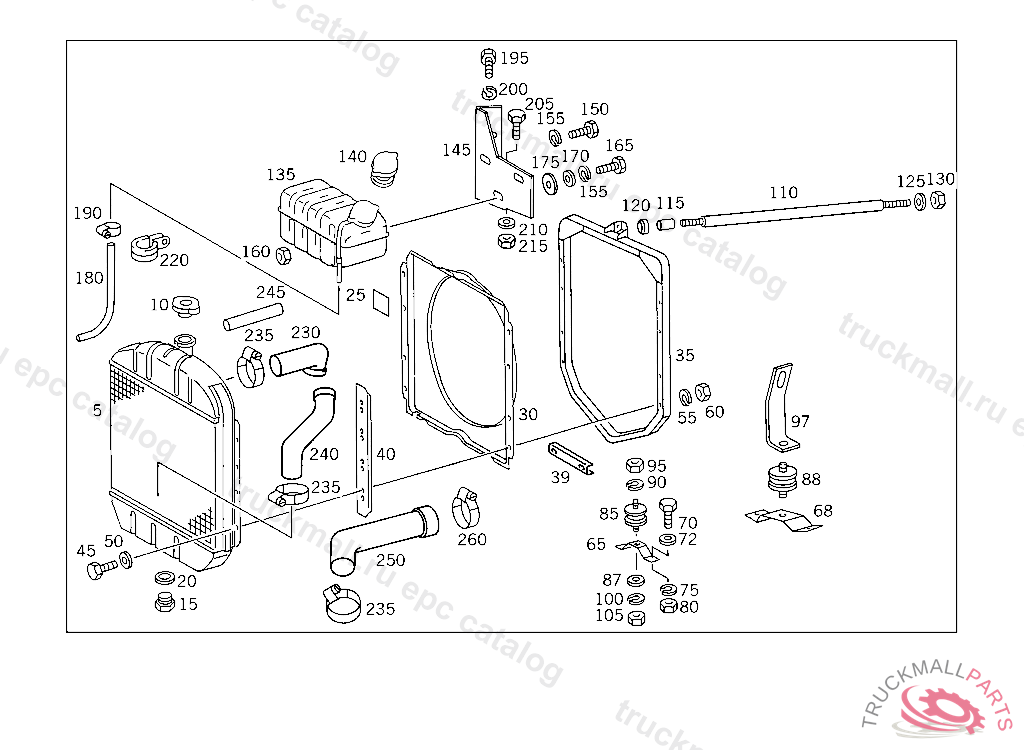

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR ,600836
5
RADIATOR ,600836
5
RADIATOR ,600836
5
RADIATOR ,600836
5
RADIATOR , 030-041 UP TO CHASSIS 699835
10
RADIATOR CAP
15
SCREW PLUG
20
SEAL RING
25
PLASTIC SECTION FAN SHROUD,600836
30
FAN SHROUD , 030-041 FROM CHASSIS 699836
30
FAN SHROUD RADIATOR
35
SUPPORT RADIATOR
35
SUPPORT RADIATOR BLOCK
35
SUPPORT , 030-041 UP TO CHASSIS 699835
39
STRUT
40
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
45
SCREW , Replaced By: N304017010040
45
SCREW PLUG SOCKET TO FRAME
50
WASHER GROUND CABLE
50
WASHER TRAILER PLUG SOCKET TO BRACKET
55
LOCK WASHER , Replaced By: N912004010102
55
LOCK WASHER RAIL TO BATTERY SUPPORT
60
NUT LEVER TO SHIFTING SHAFT
65
ANGLE RADIATOR MOUNTING,BOTTOM
70
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
70
SCREW BRACKET TO FRAME M 12X35
72
WASHER BRACKET TO ENGINE CROSS MEMBER
75
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
80
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
85
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
87
WASHER GROUND CABLE
90
LOCK WASHER , Replaced By: N912004010102
95
NUT BRACKET TO RETARDER
100
LOCK WASHER , Replaced By: N912004010102
105
NUT BRACKET TO RETARDER
110
RADIATOR STRUT
110
RADIATOR STRUT , 032-041 FROM CHASSIS 248006, 132-141 FROM CHASSIS 249672 030-041 UP TO CHASSIS 587298 030-041 FROM CHASSIS 699836
110
RADIATOR STRUT , 032-041 FROM CHASSIS 248006, 132-141 FROM CHASSIS 249672 030-041 UP TO CHASSIS 587298 030-041 FROM CHASSIS 699836
115
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
120
RUBBER RING SHOCK ABSORBER MOUNTING
125
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
130
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
230
HOSE FROM THERMOSTAT TO RADIATOR
235
BRACKET
235
LOOM TIE HOSE TO FILLER NECK
235
CLAMP COMPRESSED AIR LINE
240
HOSE FROM RADIATOR OUTLET TO WATER PUMP
240
HOSE FROM RADIATOR TO WATER PUMP
999
RADIATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3455017001
999
RADIATOR CAP , Replaced By: A3445010315
999
RADIATOR STRUT , Replaced By: A3455007345
999
SUPPORT , 032-041 UP TO CHASSIS 248005, 132-141 UP TO CHASSIS 249671
999
HOSE , Replaced By: N900271015037
999
RADIATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3455017001
999
SPACER TUBE , Replaced By: A3199910540
999
CLAMP , Replaced By: A0019972590
999
RADIATOR , Replaced By: A3455017101
999
RADIATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3455017001
999
CLAMP ENGINE FRONT CROSS MEMBER
999
RADIATOR , Replaced By: A3455017001
999
SUPPORT , Replaced By: A3455007627
999
RADIATOR STRUT , Replaced By: A3445007045
