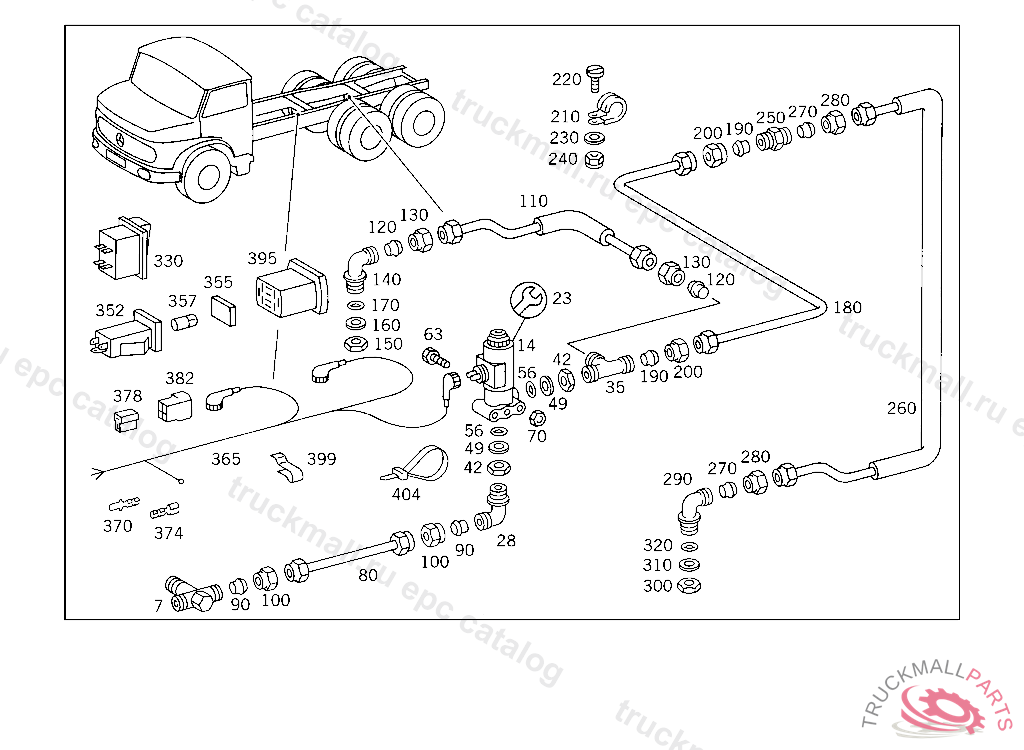

Поз.
Артикул
Описание
7
T-FITTING AT THREE-WAY VALVE
14
VALVE , Replaced By: A0029975836
23
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
28
ELBOW FITTING AT CYLINDER
35
T-FITTING AT THREE-WAY VALVE
42
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
49
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
49
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
56
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
63
SCREW REGULATING VALVE TO BRACKET
70
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
LINE FROM 3/2-WAY VALVE TO SOLENOID VALVE
90
GLAND , Replaced By: A0019901667
100
UNION NUT
110
HOSE FROM THREE-WAY VALVE TO COMPRESSED AIR CYLINDER
120
GLAND LINE CONNECTION
130
UNION NUT LINE CONNECTION
140
ELBOW FITTINGTO 682 431 70 65,D 091465
150
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
160
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
160
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
170
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
180
LINE FROM 3/2-WAY VALVE TO FITTING
190
GLAND LINE CONNECTION
200
UNION NUT LINE CONNECTION
210
SEAT BASE COMPRESSED AIR LINE TO BRACKET
210
SEAT BASE COMPRESSED AIR LINE TO BRACKET
220
SCREW CAP TO BRACKET
220
SCREW CAP TO BRACKET
230
WASHER PLUG SOCKET TO BRACKET
230
WASHER PLUG SOCKET TO BRACKET
240
NUT PUMP TO BRACKET
240
NUT PUMP TO BRACKET
250
FITTING , Replaced By: A0039978972
250
CONNECTION FITTING ,880809
260
HOSE FROM THREE-WAY VALVE TO COMPRESSED AIR CYLINDER
270
GLAND LINE CONNECTION
280
UNION NUT LINE CONNECTION
290
ELBOW FITTINGTO 682 431 70 65,D 091465
300
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
310
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
310
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
320
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
330
SWITCH TRANSVERSE DIFFERENTIAL LOCK,REAR AXLES I AND II
352
TELL-TALE LAMP TELL-TALE LAMP
355
LENS
355
LENS
357
BULB2W
365
CABLE HARNESS FROM PLUG CONNECTION TO 3-WAY VALVE, REDUCTION GEARING,REAR AXLE SWITCH
365
CABLE HARNESS FROM PLUG CONNECTION TO 3-WAY VALVE, REDUCTION GEARING,REAR AXLE SWITCH
365
CABLE HARNESS FROM PLUG CONNECTION TO 3-WAY VALVE, REDUCTION GEARING,REAR AXLE SWITCH
370
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
374
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
374
PIN BUSHING , Replaced By: A0075458226
374
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
378
PIN BUSHING HOUSING BIPOLAR
382
PIN BUSHING HOUSING 4-POLE
395
PIN BUSHING HOUSING HAZARD WARNING LIGHT SWITCH,5 220080
399
CLAMP , Replaced By: A0005460875
404
LOOM TIE ELECTRIC CABLE MOUNTING
404
LOOM TIE , Replaced By: A3459977390
999
LAMP SOCKET ,642394
999
GROMMET3.0 MM
999
PIN BUSHING HOUSING 5-POLE
999
PLUG TO PLUG THE FREE HOLES IN INSTRUMENT PANEL, 344.030-033,036-038.040,041,058 FROM CHASSIS 652015
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
LAMP SOCKET P.T.O. TELL-TALE LAMP 12V/1.2W
999
BULB , Replaced By: A6885447093
