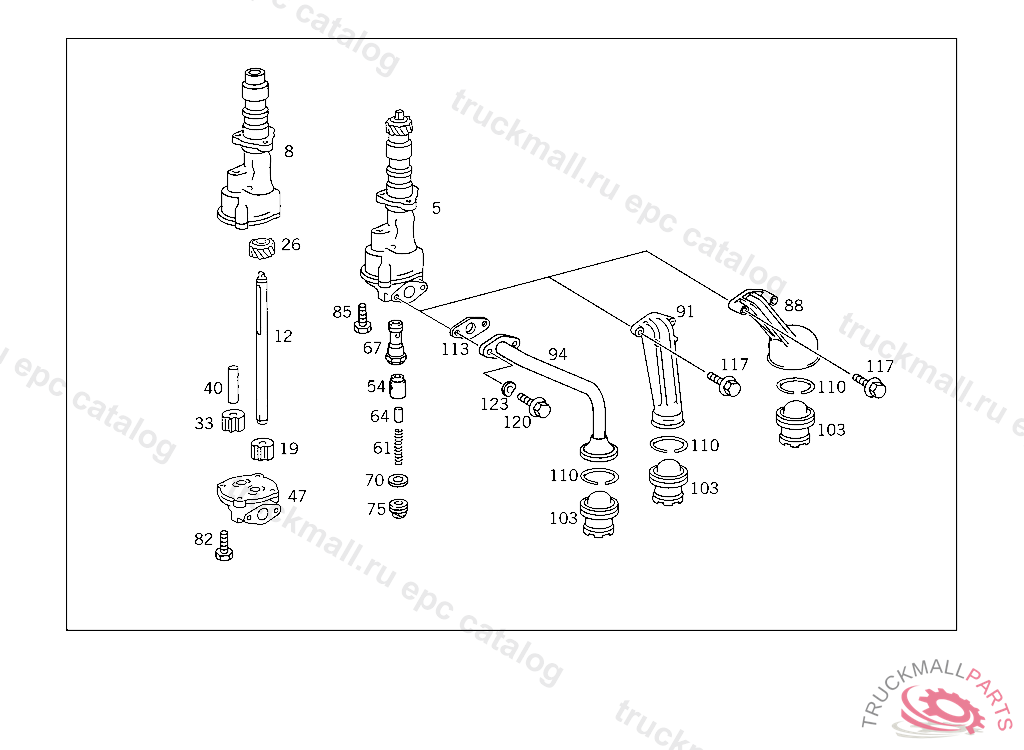

Поз.
Артикул
Описание
5
OIL PUMP LESS SUCTION BASKET
8
HOUSING
12
DRIVE SHAFT
19
GEAR DRIVING
26
HELICAL GEAR OIL PUMP DRIVE, 314 484415 352 827575 353 827575 364 005097 366 028373
33
GEAR DRIVEN
40
OIL PUMP SHAFT
47
COVER
54
HOUSING OIL PRESSURE RELIEF VALEE
61
SPRING
64
PISTON
64
PISTON , Replaced By: A3661810042
75
SCREW PLUG OIL PRESSURE RELIEF VALEE
82
SCREW BRACKET TO INTAKE MANIFOLD
82
SCREW COVER TO STEERING BOX, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
82
SCREW COVER TO HOUSING M8X45
85
SCREW LINES TO BRACKET
91
SUCTION BASKET SUCTION PIPE,OIL PUMP
103
SUCTION BASKET
110
SNAP RING
117
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
