Поз.
Артикул
Описание

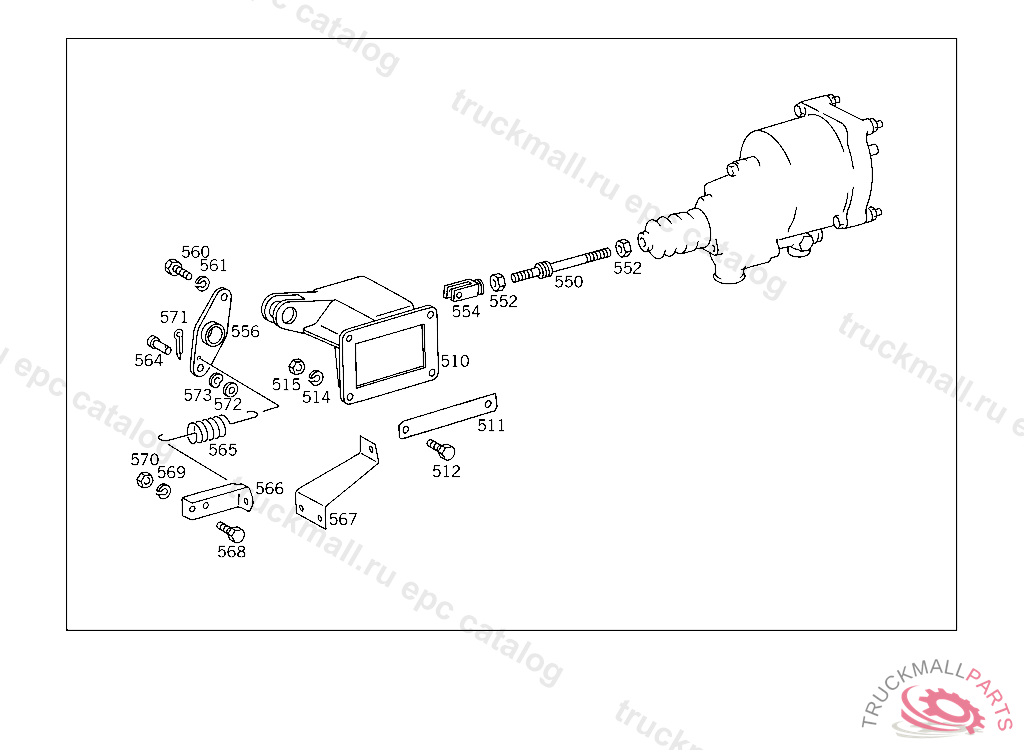

510
BRACKET BRAKE BOOSTER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
511
SHIM BRACKET TO SIDE MEMBER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
512
HEX. HEAD. SCREW BUFFER TO CAB, ON VEHICLES LESS DB CAB
512
SCREW , Replaced By: N304017010002
514
LOCK WASHER , Replaced By: N912004010102
515
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
550
ROD BRAKE BOOSTER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
552
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
554
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
556
LEVER
560
SCREW
561
LOCK WASHER RAIL TO BATTERY SUPPORT
564
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
565
SPRING LEVER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
565
SPRING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3609930210
566
BRACKET RELEASE SPRING,519339
567
BRACKET RELEASE SPRING,519340 USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
568
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
569
LOCK WASHER RAIL TO BATTERY SUPPORT
570
NUT LEVER TO SHIFTING SHAFT
571
COTTER PIN STRAP TO SUPPORT
572
WASHER SUPPORT TO FRAME,D 127794
573
SPRING WASHER CAB FLOOR
999
PROTECTIVE CAP , Replaced By: A0004217187
999
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
DISTRIBUTOR , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
DIAPHRAGMTO 001 429 48 44
999
T-FITTING AIR RESERVOIR I
999
KAPPENVENTIL. VALVETO 002 430 31 01,344 430 80 01
999
BOTTOM VALVE. VALVE , Replaced By: A0015861543
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
STRAINERTO 002 430 31 01
999
LOCK
999
WASHER , Replaced By: A0004311176
999
FILTER BOTTOMTO 000 431 24 14
999
DICHTSCHEIBE. SEAL RING
999
CUPTO 045 430 00 01
999
FILLER CAP , Replaced By: A0004315133
999
THREADED UNIONTO 002 430 41 01
999
PROTECTIVE CAP BRAKE BOOSTER
999
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
FILLER RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
GASKET34X2X6 MM,GRAU
999
RESERVOIR , Replaced By: A0014317702, +001A0004315433
999
VALVE SEATWABCO,002 0,012 0
999
VALVE SEATGRAU
999
RODTO 001 430 99 01, UP TO CHASSIS 47018
999
VALVEWABCO,002 0,012 0
999
STRAINERTO 001 430 99 01, UP TO CHASSIS 47018
999
CUP , NO LONGER AVAILABLE INDIVIDUALLY
999
VALVE , Replaced By: A0014295244
999
PISTON HYDRAULIC BRAKE
999
PISTONTO 001 430 99 01, UP TO CHASSIS 47018
999
CUP , WITH BOSCH CHARACTERISTIC NUMBER 723, Replaced By: A0004312786, +001A0004318583
999
CAPTO 001 431 71 14
999
SPRING
999
SPRINGWABCO,002 0,012 0
999
SPRINGWABCO,002 0,012 0
999
SNAP RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
SPRING
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
SPRING , Replaced By: A0014316493
999
SPRING IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 001 431 40 93, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPRINGTO 001 431 83 05
999
REPAIR KITTO 000 430 47 81
999
SEAL RING BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
999
SEAL RING
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
STRAINER , Replaced By: A0004310034
999
LOCK , Replaced By: A3454317194
999
WASHER , Replaced By: A3454317076
999
WASHER , Replaced By: A3454317376
999
CUP , Replaced By: A3454317286
999
SPRINGTO 000 431 21 14
999
PISTON
999
SEAL RING6.07X1.78 MM,WABCO,002 0,012 0
999
SEAL RING12.42X1.78 MM,WABCO,002 0,012 0
999
SEAL RING17.12X2.62 MM, 402,407 FROM CHASSIS 657000
999
HOLLOW SCREWTO 000 430 27 01, NOT USED USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
BRAKE LINING STANDARD 15.50 MM LONALFEX, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING REPAIR SIZE I 16.5 MM
999
BRAKE LINING REPAIR SIZE II 17.5 MM
999
BRAKE LINING STANDARD 15.70 MM,FRAS-LE, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING REPAIR SIZE I 16.70 MM,FRAS-LE, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING REPAIR SIZE II 17.70 MM,FRAS-LE, UP TO FRONT AXLE 2219487,FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 732.7
999
HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
999
DISTRIBUTOR
999
DISTRIBUTORTO 002 430 27 01, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185 NOT USED
999
WASHERTO 002 430 71 01
999
SPRING RETAINERTO 345 431 72 14
999
LOCKTO 345 430 77 01
999
CUPTO 344 430 73 01,002 430 27 01
999
WASHERTO 344 430 73 01,002 430 27 01
999
BRACKET HAND BRAKE VALVE
999
BRAKE SHOE WITH LINING, UP TO FRONT AXLE 1502306 AND REAR AXLE 00400
999
BRAKE LINING , Replaced By: A3454217010
999
BRAKE LINING , Replaced By: A3454217110
999
BRAKE LINING , Replaced By: A3454217210
999
AIR CLEANER , Replaced By: A0004313934
999
COVER , Replaced By: A0004312892
999
SPACER WASHER , Replaced By: A0049978045
999
SEAL RING , Replaced By: A0049978045
999
CUP , Replaced By: A0004318083
999
ROD , Replaced By: A0004312892
999
CUPTO 000 431 34 14
999
RODTO 000 431 34 14
999
SPRING , Replaced By: A0014316493
999
SPRING , Replaced By: H983454310793
999
SPRINGTO 345 431 72 14
999
SPRING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPRINGTO 000 431 34 14
999
CUPTO 000 431 34 14
999
REPAIR KIT , Replaced By: A0455860542
999
SCREW ,511032
999
SEAL RINGTO 002 430 41 01
999
SEAL RINGTO 002 430 41 01,27 01,045 430 00 01
