Поз.
Артикул
Описание

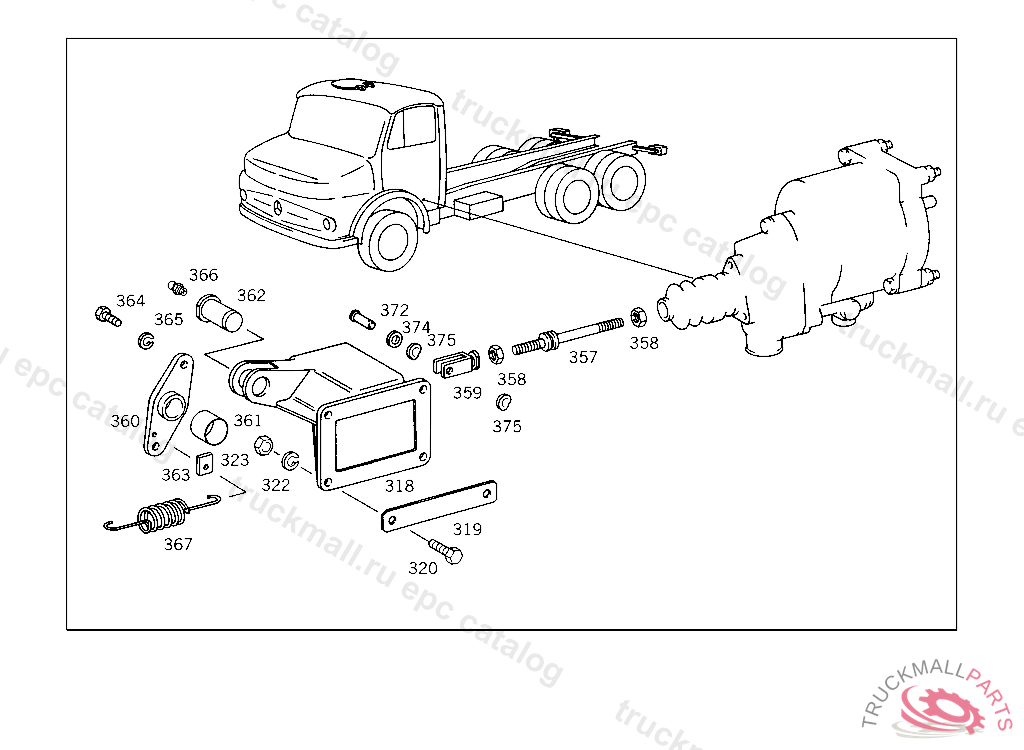

318
BRACKET BRAKE BOOSTER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
319
SHIM BRACKET TO SIDE MEMBER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
320
SCREW , Replaced By: N304017010002
322
LOCK WASHER , Replaced By: N912004010102
323
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
357
ROD BRAKE BOOSTER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
358
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
359
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
360
LEVER
361
BUSHING
362
PIN
363
LOCK LEVER TO BRACKET
364
SCREW
365
LOCK WASHER RAIL TO BATTERY SUPPORT
366
GREASE NIPPLE PROTECTIVE TUBE
367
SPRING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3609930210
372
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
374
WASHER SUPPORT TO FRAME,D 127794
375
SPRING WASHER CAB FLOOR
999
REPAIR KITTO 001 431 98 06
999
REPAIR KIT SMALL SCOPE TO 001 429 68 44
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BRACKET. LOCK , Replaced By: A6525040038
999
BRAKE HOSE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 4 424176, Replaced By: A0024280935
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
999
SPRING RETAINERTO 000 429 63 44,000 429 59 44
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
DIAPHRAGMTO 001 429 48 44
999
CONNECTOR OIL DELIVERY LINE
999
LINE BRAKE LINE COUPLING 12X1 7M, LENGTH AVAILABLE 3000 MM
999
LINE18X1.5 MM, LENGTH AVAILABLE 4000 MM
999
LINE15X1.5 MM, LENGTH AVAILABLE 3000 MM
999
LINE15X1.5 MM, LENGTH AVAILABLE 3000 MM
999
VALVE PARKING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KITTO 002 431 01 06
999
REPAIR KITTO 003 430 44 01
999
REPAIR KIT SPRING LOAD ACCUMULATOR CYLINDER TO 345 431 72 14
999
REPAIR KITTO 345 431 72 14,98 345 431 02 14, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
REPAIR KIT CONTROL VALVE TO 002 431 28 05
999
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PROTECTIVE CAP BRAKE BOOSTER
999
BRAKE CYLINDER , Replaced By: A3644317014
999
FILLER CAP
999
VALVE , Replaced By: A0004320807
999
VALVE
999
GASKETTO 000 429 16 30
999
REPAIR KITWABCO
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
REPAIR KIT , Replaced By: A0004305760
999
AIR PUMP HOSE , Replaced By: A0005911904
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
CAPTO 001 431 71 14
999
T-FITTING FITTING,5 461950
999
T-FITTING , Replaced By: N074317000100
999
T-FITTING REAR AXLE BRAKE CIRCUIT
999
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
999
T-FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227, Replaced By: N000000006204
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
SPRING , Replaced By: A0009935205
999
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
FLANGETO 345 430 75 81
999
HANDLETO 345 430 73 81
999
BRAKE HOSE REAR AXLE
999
VALVE , Replaced By: A0034295244
999
VALVE (OVERFLOW VALVE)
999
VALVE (OVERFLOW VALVE)
999
BRAKE CYLINDER SPRING LOAD ACCUMULATOR CYLINDER WABCO
999
CUP , Replaced By: A0014312386
999
CUPTO BOSCH-NR.0481 027 104
999
PRESSURE REGULATOR"WABCO",486597
999
CUP101
999
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
999
PRESSURE REGULATORWABCO
999
SPRINGTO BOSCH-NR.0481 027 024
999
SPRINGTO BOSCH-NR.0481 027 024
999
PRESSURE REGULATOR"KNORR",FB486598 USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
REPAIR KITTO 001 429 52 44
999
REPAIR KITBOSCH
999
REPAIR KIT , Replaced By: A0024302260
999
REPAIR KIT , Replaced By: A0024306581
999
REPAIR KIT , Replaced By: A0004301407
999
REPAIR KIT
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SPRINGTO 000 429 63 44,000 429 59 44
999
VALVE , Replaced By: A0039971736
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
FITTING , Replaced By: A0039978972
999
FITTING HYDRAULIC LINE TO BRACKET,K 130132
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING
999
BRAKE HOSE FRONT 700 MM,4 615089-4 629024
999
VALVE
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
999
REPAIR KITTO 001 431 37 05,4 375193
999
BRAKE VALVE (TRAILER CONTROL VALVE) "KNORR",TB108827
999
REPAIR KITTO 000 431 56 14,001 431 13 14,WABCO
999
REPAIR KITKNORR
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KITTO 000 430 47 81
999
SEAL RING
999
FITTING 3/2-WAY VALVE,CONNECTION: "30"
999
FITTING RELAY VALVE,CONNECTION: "40",5 359430
999
VALVE RELAY VALVE KNORR
999
REPAIR KIT SMALL SCOPE TO 345 430 73 81
999
REPAIR KITTO 345 430 75 81
999
VALVE , Replaced By: A0029975836
999
SEAL RINGTO 000 431 24 14
999
SEAL RING , Replaced By: A0179974148
999
DISTRIBUTORTO 345 430 77 01, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
FILLER CAP
999
SCREW PLUG
999
THREADED UNIONTO 345 430 77 01
999
SEAL RINGTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 723
999
REPAIR KIT MAJOR TO 345 430 77 01
999
REPAIR KIT MINOR TO 345 430 77 01
999
THRUST RING LOCKING VALVE
999
LINE6X0.7 MM, LENGHT AVAILABLE 6000 MM
999
LINE8X0.7 MM, LENGTH AVAILABLE: 6000 MM
999
STRAINER
999
BRACKET FUEL LINE
999
BRACKET FUEL LINES
999
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
999
CLAMP LINE MOUNTING
999
CLAMP COMPRESSED AIR LINE TO COMPRESSED AIR LINE
999
CLAMP
999
999
ELBOW FITTINGTO 682 431 70 65,D 091465
999
ELBOW FITTING , Replaced By: A3454307779
999
999
999
999
999
999
999
999
999
999
999
LINE FROM FITTING TO SHUT-OFF COCK
999
999
999
999
999
999
LEVER LEFT, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
999
FITTINGTO 345 430 78 01
999
BRACKET PIPING
999
DISTRIBUTOR
999
999
BRAKE LINE COUPLING
999
DISTRIBUTOR REAR AXLE
999
ELBOW FITTING AT BRAKE VALVE
999
SEAL HOLDER
999
BRAKE LINE COUPLING
999
CONNECTOR TO PRESSURE GAUGE, 132-141 FROM CAB 1500848
999
ELBOW FITTING
999
T-FITTING CONTROL VALVE,CONNECTION "1"
999
ELBOW FITTING AT CYLINDER
999
ELBOW FITTING AT TWO-WAY VALVE
999
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
CONNECTOR
999
BRACKET
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0004320807
999
BRAKE MASTER CYLINDER FRONT/REAR BRAKE CIRCUIT
999
LINE FROM DOUBLE FITTING TO PRESSURE REGULATOR 18X1.5 MM
999
RESERVOIR
999
LOCKTO 345 430 77 01
999
PRESSURE REGULATOR"WABCO",486597
999
BRAKE CYLINDERWABCO
999
WASHER CONSOLE TO SIDE MEMBER, USED WITH AIR BRAKE,FROM CHASSIS FB588186
999
ELECTRIC CABLE FROM CONNECTION FITTING TO FIRE WALL 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
ELECTRIC CABLE FROM CONNECTION FITTING TO FIRE WALL 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
REPAIR KIT IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 001 586 43 43, TO 001 431 22 06
999
ELBOW FITTING AT BRAKE BOOSTER, B03543/06/08 FROM IDENT NO.: 549430
999
SCREW PLUG PARKING BRAKE VALVE
999
CLAMP BRACKET TO SIDE MEMBER,549430
999
HOSE FROM THREE-WAY VALVE TO COMPRESSED AIR CYLINDER
999
BRACKET OIL LINE MOUNTING
999
BRACKET , Replaced By: A3184280240
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
ROD FROM DOUBLE LEVER TO REAR AXLE II, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
ELBOW FITTING AT OVERFLOW VALVE
999
BRAKE CYLINDER"WESTINGHOUSE", USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
VALVE AT OUTSIDE AIR RESERVOIR
999
PROTECTIVE CAP , Replaced By: A0004301808
999
SPRING , Replaced By: H983454310793
999
SPRING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
REPAIR KIT , Replaced By: A0004301708
