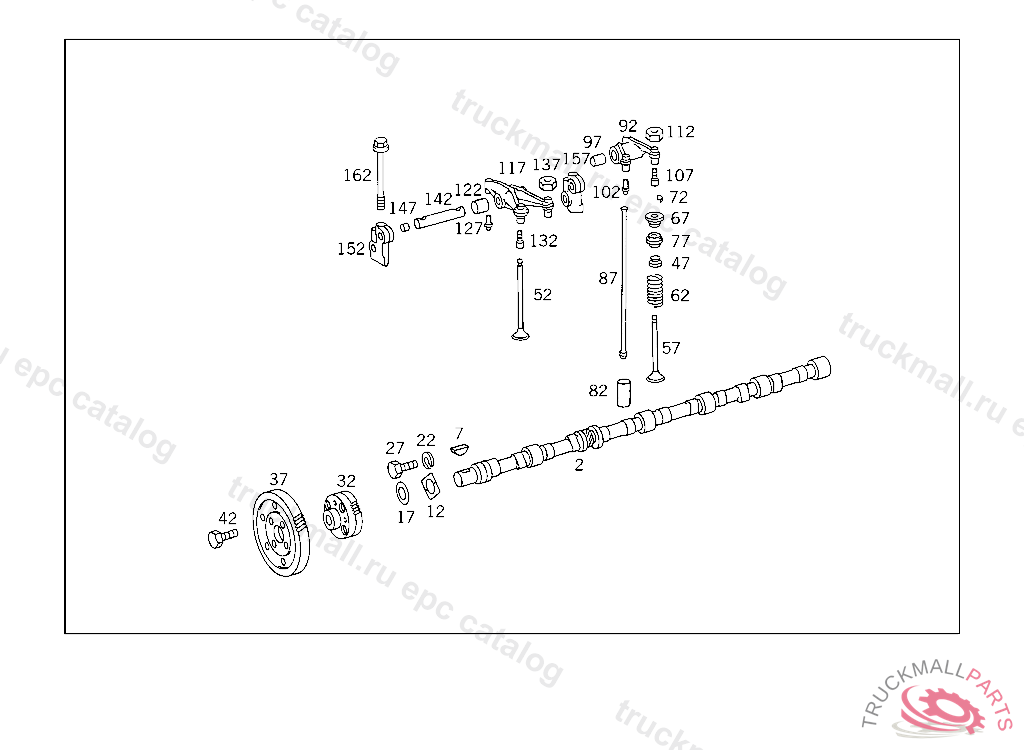

Поз.
Артикул
Описание
2
CAMSHAFT STANDARD
7
WOODRUFF KEY CRANKSHAFT
12
THRUST WASHER
17
SPACER WASHER
22
LOCK WASHER RAIL TO BATTERY SUPPORT
27
SCREW HYDRAULIC CLUTCH TO ENGINE, 021,023 UP TO CHASSIS 086009
32
DRIVE GEAR
37
CAMSHAFT GEAR
42
SCREW , Replaced By: N304017010040
47
BOOT INTAKE TO 352 05312 29-15 29
52
EXHAUST VALVE SEE ALSO GROUP 05
57
INTAKE VALVE SEE ALSO GROUP 05
62
VALVE SPRING
67
SPRING RETAINER
72
VALVE COLLET
72
VALVE COLLET
77
SPACER RING
77
SPRING RETAINER. SPACER RING
82
VALVE TAPPET
82
VALVE TAPPET
82
VALVE TAPPET
82
VALVE TAPPET REPAIR SIZE III 34.73 MM
82
VALVE TAPPET REPAIR SIZE II 34.48 MM
82
VALVE TAPPET REPAIR SIZE I 34.18 MM
87
PUSH ROD INTAKE
87
PUSH ROD INTAKE
87
PUSH ROD EXHAUST
87
PUSH ROD EXHAUST
92
ROCKER ARM INTAKE VALVE
97
BUSHING
102
BALL PIN
107
SET SCREW
107
SET SCREW
112
NUT
117
ROCKER ARM EXHAUST VALVE
122
BUSHING
127
BALL PIN
132
SET SCREW
132
SET SCREW
137
NUT
142
ROCKER ARM SPINDLE
147
EXPANSION PLUG
152
ROCKER ARM BRACKET FRONT
157
ROCKER ARM BRACKET REAR
162
SCREW ROCKER ARM BRACKET TO CYLINDER HEAD
999
EXHAUST VALVE , Replaced By: A3460530005
999
INTAKE VALVE , Replaced By: A3460530001
999
THRUST WASHER , Replaced By: A3460520162
999
BOOT , Replaced By: A3520530296
999
ROCKER ARM SPINDLE , Replaced By: A3450507031
999
VALVE SPRING
