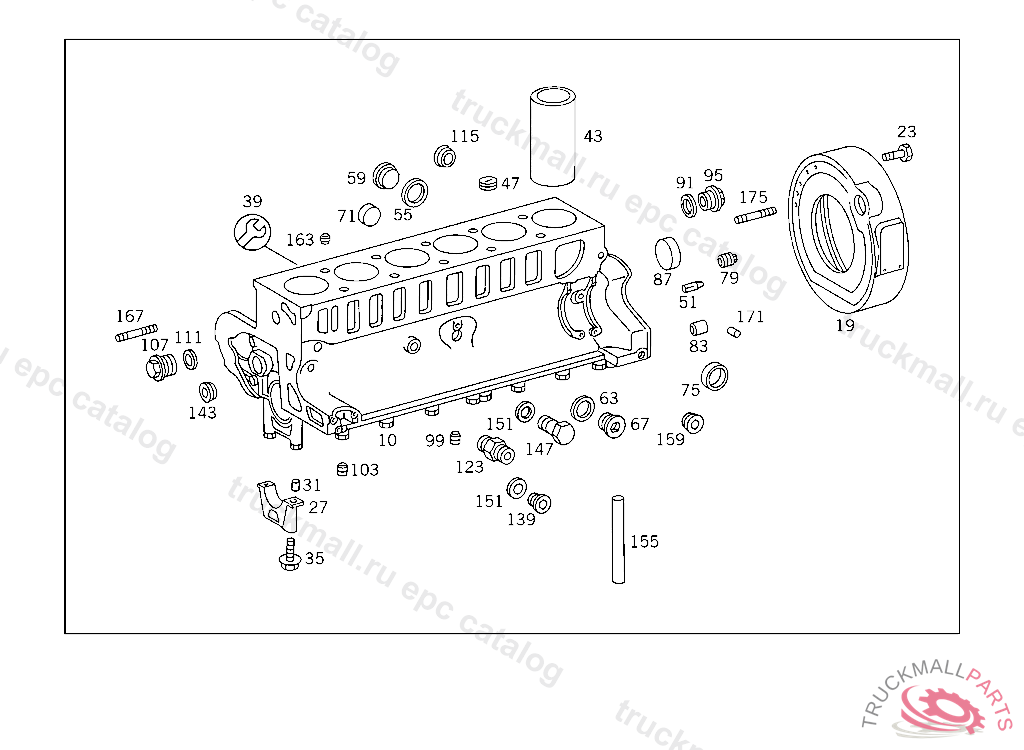

Поз.
Артикул
Описание
10
CRANKCASE
27
BEARING CAP BEARING NO.: 7 BZW.6
27
BEARING CAP BEARING NO.: NO.4
27
BEARING CAP BEARING NO.: NO.1
31
CYLINDER PIN
31
CYLINDRICAL PIN
35
SCREW
35
SCREW CRANKSHAFT BEARING CAP NO.4
39
REPAIR KIT CAMSHAFT BEARINGS
43
CYLINDER LINER REPAIR SOLUTION, CYLINDER CRANKCASE WITH DRY LINERS 133,5 MM
43
CYLINDER LINER REPAIR SOLUTION, CYLINDER CRANKCASE WITH DRY LINERS 133.6 MM
43
CYLINDER LINER REPAIR SOLUTION, CYLINDER CRANKCASE WITH DRY LINERS 133.7 MM
47
PLUG
51
POINTER
55
SEAL RING AT TANK
59
PLUG
59
PLUG ,481364
63
SEAL RING OIL LINE TO OIL COOLER
67
SCREW PLUG
71
EXPANSION PLUG
75
EXPANSION PLUG CORE HOLE 40.30 MM
79
SCREW PLUG OIL FILLING, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
83
DOWEL PIN
87
EXPANSION PLUG
91
SEAL RING TEMPERATURE GAUGE SENDER UNIT
95
SCREW PLUG OIL PASSAGE,REAR
99
SCREW PLUG , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
103
SCREW PLUG STABILIZER
107
SCREW PLUG
107
SCREW PLUG
111
SEAL RINGTO 006 997 00 72
115
SCREW
123
SCREW FITTING FUEL LINE TO TANK
139
SCREW PLUG OIL PASSAGE PLUG
147
SCREW PLUG WATER DRAIN
151
SEAL RING VALVE TO VALVE,K 025179
155
HOSE
163
FITTED SLEEVE
167
STUD
171
CLAMPING SLEEVE
175
STUD BELL HOUSING TO CYLINDER CRANKCASE
999
SPRING ,4 263013
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
SEAL RING
999
SEAL RING
999
GASKET , Replaced By: A3559970049
999
SCREW PLUG , Replaced By: A3450140072
999
OIL PAN , OIL CAPACITY: 21 L EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 603303, Replaced By: A3450102313
999
BREATHER PIPE ,071017, Replaced By: A3450107470, +001A3450107140
999
GASKET KIT , Replaced By: A3450100480
999
GASKET KIT CYLINDER CRANKCASE, FOR BREAK-DOWN OF OF GASKET KIT, SEE END OF GROUP 01
999
OIL FILLER NECK , Replaced By: A3450100564
999
GASKET KIT CYLINDER HEAD
999
GUIDE TUBE , Replaced By: A3450109166
999
CYLINDER LINER , Replaced By: A3550110810
999
CYLINDER LINER , Replaced By: A3550110910
999
CYLINDER LINER , Replaced By: A3550111010
999
CYLINDER HEAD GASKET , Replaced By: A3450160520
999
CYLINDER HEAD GASKET , Replaced By: A3550160420
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
GASKET KIT OIL PAN
999
SEAL RING CRANKSHAFT SEALING,FRONT
999
GASKET TIMING CASE COVER
999
GASKET , Replaced By: A3550160021
999
VALVE SEAT RING , Replaced By: A3550531032
999
VALVE SEAT RING , Replaced By: A3550531132
999
VALVE SEAT RING , Replaced By: A3550531131
999
VALVE SEAT RING , Replaced By: A3550530831
999
VALVE SEAT RING , Replaced By: A3550531331
999
GASKET , Replaced By: A3600770180
999
GASKET , Replaced By: A3551410280
999
GASKETTO 352 010 01 68
999
SEAL
999
GASKET , Replaced By: A3550150122
999
GASKET
999
GASKET EXHAUST MANIFOLD
999
GASKET , Replaced By: A3551840780
999
GASKET OIL COOLER SUPPORT TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3551880180
999
GASKET COOLING WATER LINE TO THERMOSTAT
999
SCREW
999
SEAL RING
999
GASKET CYLINDER SIDE COVER
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
CRANKCASE , Replaced By: A3450101208
999
REPAIR KIT , Replaced By: A3455867001
999
GASKET KIT , Replaced By: A3450100380, +001A3470100480
999
SEAL RING ,D 031294
999
SEAL RING BRACKET TO CYLINDER HEAD
999
SEAL RING BOTTOM
999
GASKET , Replaced By: N917003040000
