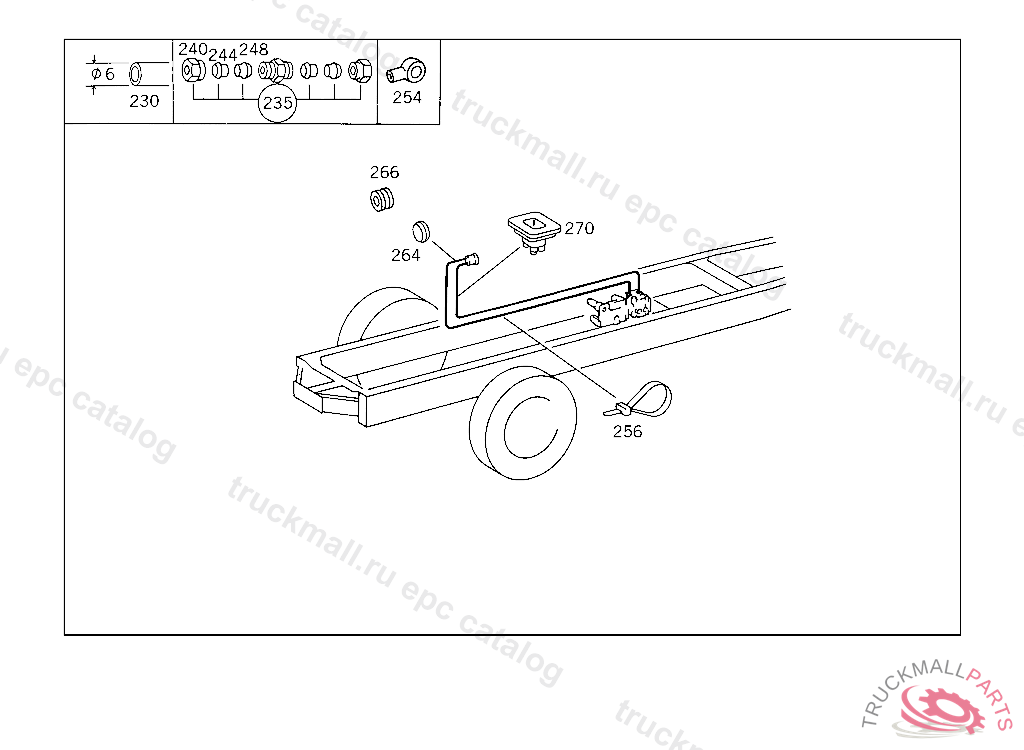

Поз.
Артикул
Описание
230
PLASTIC PIPE RISING PIPE 4X6 MM
230
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
235
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
240
UNION NUT
244
GLAND , Replaced By: A0019901667
244
SEAL CONE
248
SLEEVE LEAK LINE
254
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
254
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
256
LOOM TIE LINE MOUNTING
264
EXPANSION PLUG CAB REAR PANEL
266
GROMMET
270
GROMMET CAB FLOOR
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
PULL ROD , Replaced By: N900331010671
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
FITTING ,4 667210
999
YOKE , Replaced By: A0009961401
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
FITTING , Replaced By: A0009907871
999
NUT , Replaced By: N308675016001
999
WASHER BRACKET TO FRAME
999
WASHER , Replaced By: N000125017016
999
LOCK (PROTECTION AGAINST TORSION),5 934168
999
LINE , Replaced By: A6254293501
999
BEARING BRACKET ,5 197194, Replaced By: A3634230033
999
LINE , Replaced By: A6194290801
999
LINE , Replaced By: A3834290801
999
BRACKET , Replaced By: A3525422840
999
STOP LIGHT SWITCH , Replaced By: A0005457009
999
BRACKET AIR RESERVOIRS I AND II,5 586938
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KIT , Replaced By: A0004301160, +001A0004310273, +001A0004318383, +002A0004312185
999
REPAIR KIT TRISTOP CYLINDER TO 006 420 25 18,WABCO
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART TO 007 420 68 18,007 420 70 18,WABCO
999
SEAL RING , Replaced By: A0009971548
999
VALVE , Replaced By: A0024300381
999
VALVE , Replaced By: A0014306581
999
VALVE , Replaced By: A0034291644
999
SCREW. UNION SCREW LINE CONNECTION
999
SPRING , Replaced By: A0009935205
999
BUSHING , Replaced By: N915062004000
999
REPAIR KIT , Replaced By: A0014300460
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306260
999
REPAIR KITTO 001 430 18 81/78 81
999
HANDLETO 001 430 17 81,KNORR
999
ADAPTER FITTING , Replaced By: A0004296934
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296634
999
GUIDE , Replaced By: N071752014000
999
BOOTTO 006 420 28 18,15 18,WABCO
