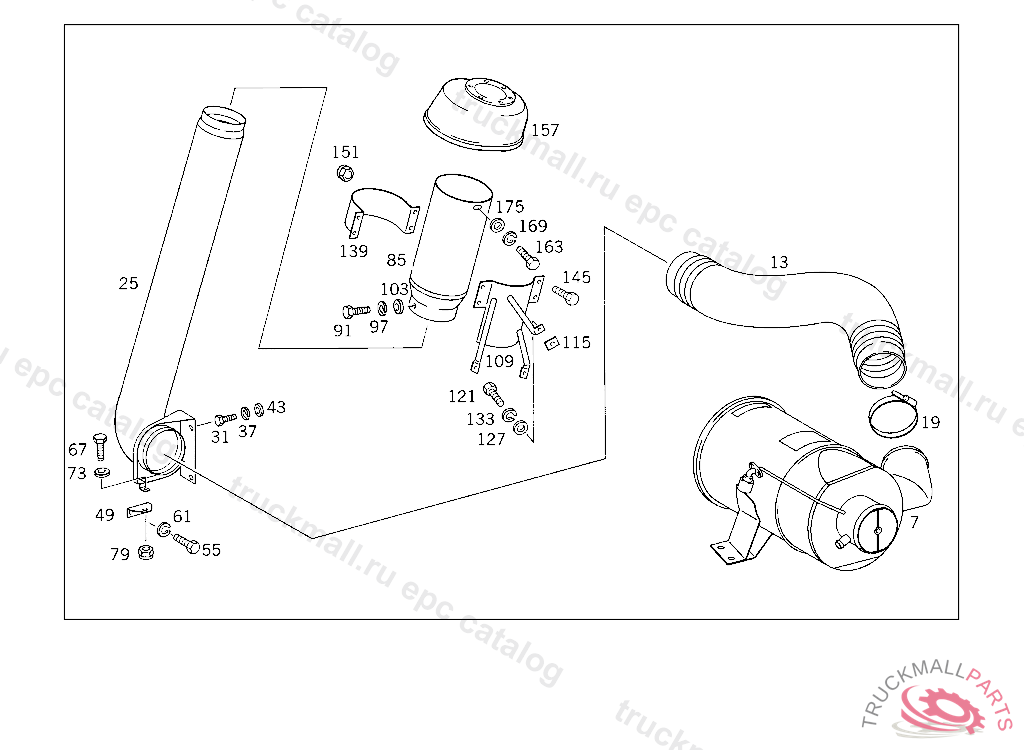

Поз.
Артикул
Описание
7
AIR CLEANER
13
HOSE FROM AIR INTAKE PIPE TO AIR CLEANER
19
CLAMP , Replaced By: N000000000678
19
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
19
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
25
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP,5 094416
31
SCREW PIPE CLAMP
31
SCREW , Replaced By: N304017008021
37
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
43
WASHER EXHAUST MUFFLER TO STRAP
43
WASHER , Replaced By: N000125008443
49
BRACKET ,5 094417
55
SCREW , Replaced By: N304017008034
55
SCREW BRACKET TO CROSS CONNECTION STRUT
61
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
67
SCREW COVER PLATE TO BRACKET
73
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
73
WASHER COMPRESSED AIR LINE TO BRACKET
79
NUT , Replaced By: N913004006001
79
NUT PUMP TO BRACKET
85
AIR INTAKE PIPE FROM AIR INTAKE PIPE TO CYCLONE
91
SCREW COVER PLATE TO BRACKET
97
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
103
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
103
WASHER COMPRESSED AIR LINE TO BRACKET
109
BRACKET AIR CLEANER,5 094417
115
SHIM
121
SCREW PIPE CLAMP
121
SCREW , Replaced By: N304017008021
127
WASHER , Replaced By: N000125008443
127
WASHER EXHAUST MUFFLER TO STRAP
133
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
139
CLAMP INTAKE PIPE TO BRACKET,5 094417
145
SCREW , Replaced By: N304017006020
145
SCREW LICENSE PLATE TO BRACKET
151
NUT PUMP TO BRACKET
151
NUT , Replaced By: N913004006001
157
ANTINOISE CAPSULE AIR INTAKE
163
SCREW COVER PLATE TO BRACKET
169
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
175
WASHER COMPRESSED AIR LINE TO BRACKET
175
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER FELT
999
VALVE
999
MAINTENANCE INDICATOR
999
NUT
999
GASKET
999
FILTER ELEMENT
999
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP,5 094417
999
CLAMP PIPE PIECE TO BRACKET TO A 957 528 17 09
