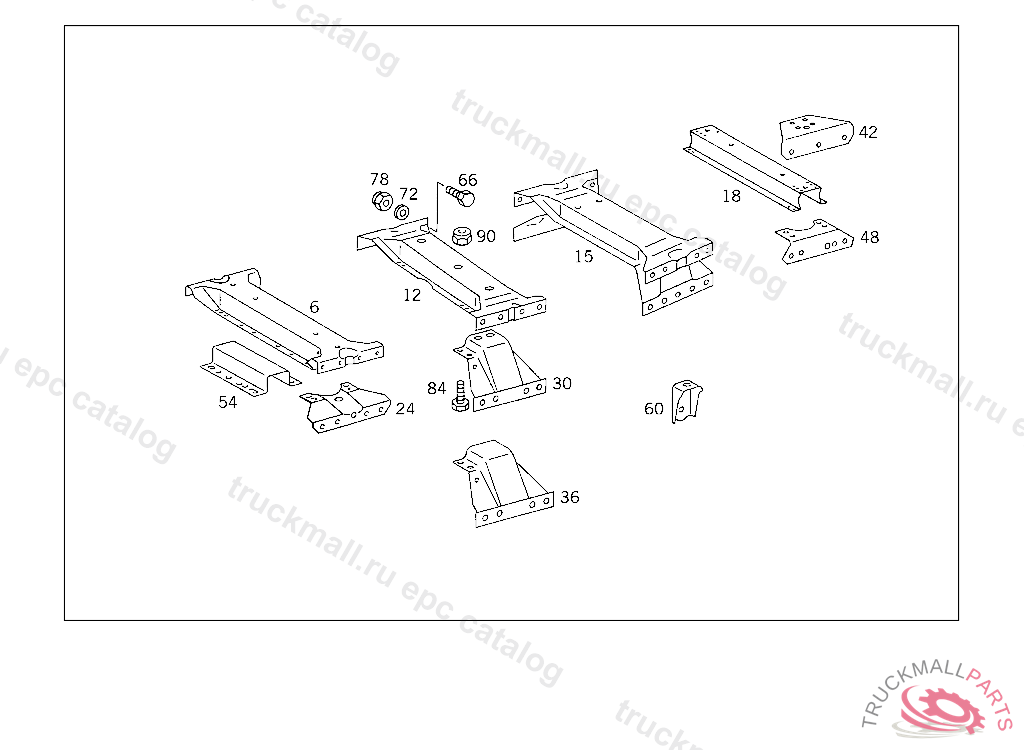

Поз.
Артикул
Описание
6
CROSS MEMBERNO.5A
6
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
6
CROSS MEMBERNO.3B
6
CROSS MEMBERNO.4A
6
CROSS MEMBERNO.5A
6
CROSS MEMBERNO.2A
12
CROSS MEMBERNO.3A
12
CROSS MEMBERNO.4A
12
CROSS MEMBERNO.3A
15
CROSS MEMBERNO.5A
15
CROSS MEMBER , Replaced By: A3953101036
15
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
15
CROSS MEMBER IN FRAME BEND
18
CROSS MEMBERNO.3A
24
REINFORCEMENT LEFT AND RIGHT
24
REINFORCEMENT LEFT AND RIGHT TO 617 312 01 17
30
STRUT , Replaced By: A3873121961
30
STRUT LEFT AND RIGHT
30
STRUT LEFT AND RIGHT
30
STRUT LEFT AND RIGHT
30
STRUT LEFT AND RIGHT
36
STRUT LEFT AND RIGHT
42
ANGLE LEFT AND RIGHT
48
ANGLE LEFT AND RIGHT
54
REINFORCEMENT CROSS MEMBER
60
CONSOLE BODY MOUNTING
66
SCREW , Replaced By: N308676014012
66
SCREW APPARATUS SUPPORT TO FRAME
66
SCREW ANGLE TO CROSS MEMBER M 10X30
66
SCREW SUPPORT TO SIDE MEMBER M 14X45
66
SCREW , Replaced By: N308676014008
66
SCREW MOUNTING TO CONSOLE M 14X35
66
SCREW , Replaced By: A9429901304
66
SCREW , Replaced By: N304017010047
66
SCREW CONNECTOR TO REAR SHIFTING ROD
66
HEX. HEAD SCREW. SCREW STRUT TO SIDE MEMBER
66
SCREW SHIFTING ROD TO SHIFT LEVER
72
WASHER RADIATOR TO RUBBER MOUNTING
72
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
72
WASHER , Replaced By: N000125015019
78
NUT , Replaced By: N910113010000
78
NUT STEERING SUPPORT TO FRAME
78
NUT , Replaced By: N910113014000
78
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
78
NUT STRAP TO BRACKET
84
SCREW BRACKET TO FRAME M 12X35
84
SCREW STRUT TO CROSS MEMBER M 10X25
84
SCREW , Replaced By: N304017010040
90
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
90
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
90
NUT , Replaced By: N910113012003
90
NUT SUPPORT TO SIDE MEMBER
