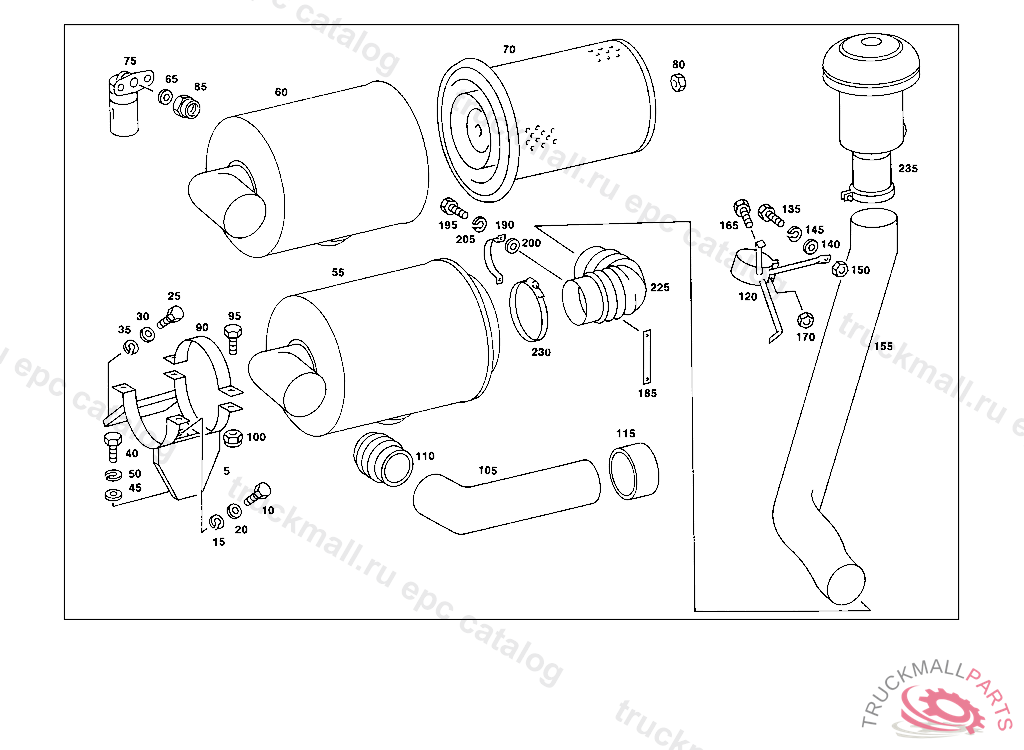

Поз.
Артикул
Описание
5
SUPPORT
10
SCREW BRACKET TO SIDE MEMBER
15
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
20
WASHER , Replaced By: N009021010209
20
WASHER BRACKET TO COVERING
25
SCREW REAR EXHAUST PIPE TO MUFFLER
30
WASHER , Replaced By: N009021010209
30
WASHER BRACKET TO COVERING
30
WASHER SUPPORT TO ENGINE HOOD SUPPORT MOUNTING ANGLE
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
40
SCREW SUPPORT TO ENGINE HOOD SUPPORT MOUNTING ANGLE
45
WASHER SUPPORT TO ENGINE HOOD SUPPORT MOUNTING ANGLE
45
WASHER BRACKET TO LEFT SIDE MEMBER
45
WASHER , Replaced By: N009021008213
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
55
AIR CLEANER (PAPER AIR CLEANER)
60
FILTER BOWL
65
WASHER FELT
65
GASKETTO 000 094 11 68,345 094 71 68
70
FILTER ELEMENT
75
VACUUM BOX
75
VACUUM BOX , Replaced By: A0000941268
80
NUT
85
UNION NUT
90
CLAMP
95
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
95
SCREW , Replaced By: N304017008027
100
NUT
105
AIR INTAKE PIPE
110
BOOT INTAKE PIPE TO AIR CLEANER
115
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
120
BRACKET AIR CLEANER,5 094416
120
BRACKET AIR CLEANER,5 094416
135
SCREW VALVE TO BRACKET, Replaced By: N304014008002
135
SCREW VALVE TO BRACKET
135
SCREW VALVE TO BRACKET
135
SCREW , Replaced By: N304017008021
135
SCREW PIPE CLAMP
135
SCREW PIPE CLAMP
135
SCREW PIPE CLAMP
140
WASHER , Replaced By: N000125008443
140
WASHER EXHAUST MUFFLER TO STRAP
140
WASHER EXHAUST MUFFLER TO STRAP
140
WASHER EXHAUST MUFFLER TO STRAP
145
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
150
NUT
150
NUT
155
AIR INTAKE PIPE
155
AIR INTAKE PIPE
165
SCREW , Replaced By: N304017006020
165
SCREW LICENSE PLATE TO BRACKET
170
NUT BALL PIVOT TO LEVER
170
NUT BALL PIVOT TO LEVER
185
REINFORCEMENT INTAKE PIPE TO FRONT PANEL
185
REINFORCEMENT INTAKE PIPE TO FRONT PANEL
190
CLAMP INTAKE PIPE TO FRONT PANEL
190
CLAMP INTAKE PIPE TO FRONT PANEL
195
SCREW , Replaced By: N304017008021
195
SCREW PIPE CLAMP
200
WASHER , Replaced By: N000125008443
200
WASHER EXHAUST MUFFLER TO STRAP
205
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
225
HOSE INTAKE PIPE TO AIR CLEANER, ORDER BY THE METER
230
CLAMP , Replaced By: A0059971490
230
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
230
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
235
AIR CLEANER
235
AIR CLEANER
999
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0000948482
999
SEAL CONE
999
AIR CLEANER OIL BATH
999
AIR CLEANER OIL BATH
999
STRAP OIL BATH AIR CLEANER
999
BEARING BRACKET OIL BATH AIR CLEANER
999
BOOT OIL BATH AIR CLEANER
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BUSHING INTAKE MANIFOLD
999
STRAP
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BRACKET OIL BATH AIR CLEANER
999
BRACKET OIL BATH AIR CLEANER
999
COVERING INTAKE MANIFOLD
