Поз.
Артикул
Описание

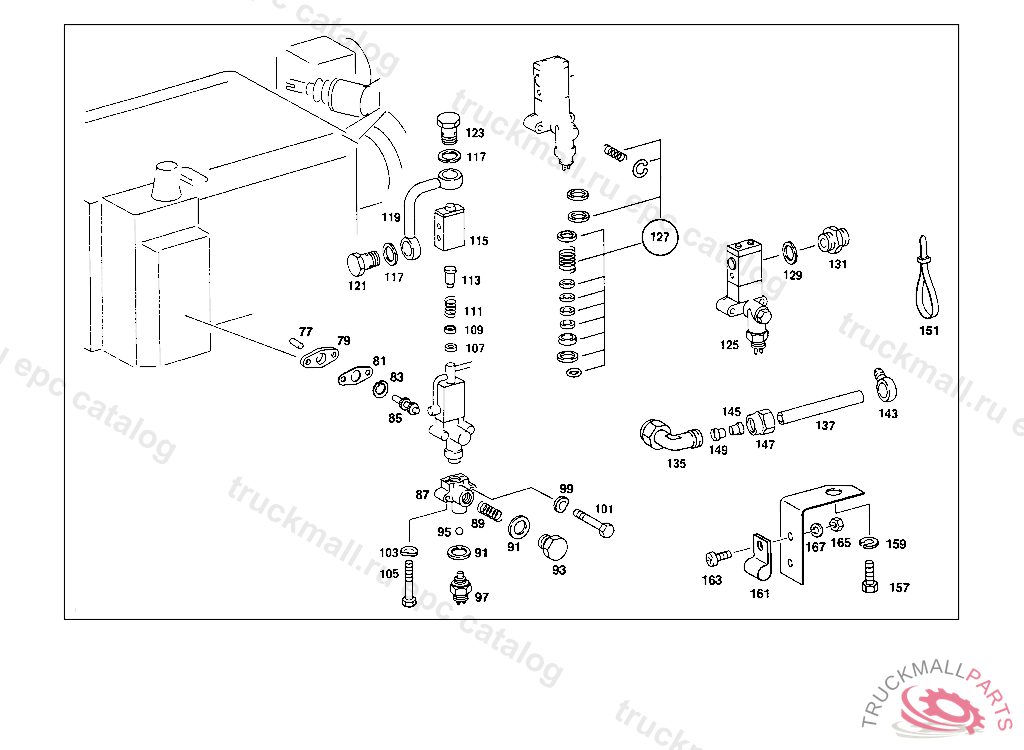

77
PIN
79
GASKET , Replaced By: A0002685080
79
GASKET VALVE TO TRANSMISSION
81
SLOTTED GATE
83
SNAP RINGWEBER,TO 000 553 40 01, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
85
PIN
87
HOUSING
89
SPRING
91
SPACER WASHER , Replaced By: A0002771552, +001A0012648652
91
SPACER WASHER AS REQUIRED 1.2 MM
91
SPACER WASHER AS REQUIRED 0.8 MM
91
SPACER WASHER , Replaced By: A0002771452, +001A0002771552
91
SPACER WASHER , Replaced By: A0012648652, +001A0002771552
91
SPACER WASHER AS REQUIRED 1.0 MM
91
SPACER WASHER , Replaced By: A0012648652, +001A0002771452
91
SPACER WASHER AS REQUIRED 2.0 MM
91
SPACER WASHER , Replaced By: A0002771552, +002A0002771452
91
SPACER WASHER AS REQUIRED 2.4 MM
91
SPACER WASHER AS REQUIRED 0.6 MM
93
SCREW PLUG
95
BALL
97
SWITCH
97
SWITCH , Replaced By: A0015455709
97
SWITCH
97
SWITCH , Replaced By: A0015458214
99
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
99
SPRING WASHER , Replaced By: N000137008212
101
SCREW VALVE TO BRACKET
103
SPRING WASHER ALTERNATOR CONNECTION D+
105
SCREW
107
SEAL RING
109
WASHER
111
SPRING
113
PIN
115
VALVE
117
SEAL RING , Replaced By: N007603010110
117
SEAL RING PNEUMATIC VALVE
119
LINE
121
HOLLOW SCREW
123
HOLLOW SCREW
125
VALVE GEAR INTERLOCK, 10/20 FROM IDENT NO.4 321817-4 411810,50/60 FROM IDENT NO. 4 321817-4 414889
127
REPAIR KIT 3/2-WAY VALVE WABCO
129
SEAL RING , Replaced By: N007603010110
129
SEAL RING PNEUMATIC VALVE
131
FITTING 3/2-WAY VALVE,CONNECTION: "30"
135
FITTING , Replaced By: A0019909871
135
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
135
FITTING FROM PUMP TO CYLINDER
137
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
137
PLASTIC PIPE RISING PIPE 4X6 MM
143
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
145
GLAND , Replaced By: A0019901667
145
SEAL CONE
147
UNION NUT
149
BUSHING , Replaced By: N915062004000
149
SLEEVE LEAK LINE
151
LOOM TIE , Replaced By: A0019978390
151
LOOM TIE LINE MOUNTING 280 MM
157
SCREW , Replaced By: N308676012038
157
SCREW BRACKET TO TRANSMISSION
159
LOCK WASHER FITTING TO BRACKET
161
CLAMP LINE MOUNTING
163
SCREW BRACKET TO CAB CROSS MEMBER
165
NUT BALL PIVOT TO LEVER
167
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
GEAR INTERLOCK , IN ADDITION,AS REQUIRED 000 268 20 74,000 268 21 74,000 268 22 74,000 268 23 744 321816, Replaced By: A0002603957, +002N000137008204, +002N000931008047
999
PIN SWITCH
999
LINE , Replaced By: A0004296201
999
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
BRACKET FLEXIBLE SHAFT TO TRANSMISSION
999
ROD , Replaced By: N900331008263
999
COTTER PIN PULL ROD TO SHIFT LEVER
999
INSULATING HOSE8X0,01 MM
999
HOLLOW SCREW HEATING CONNECTION
