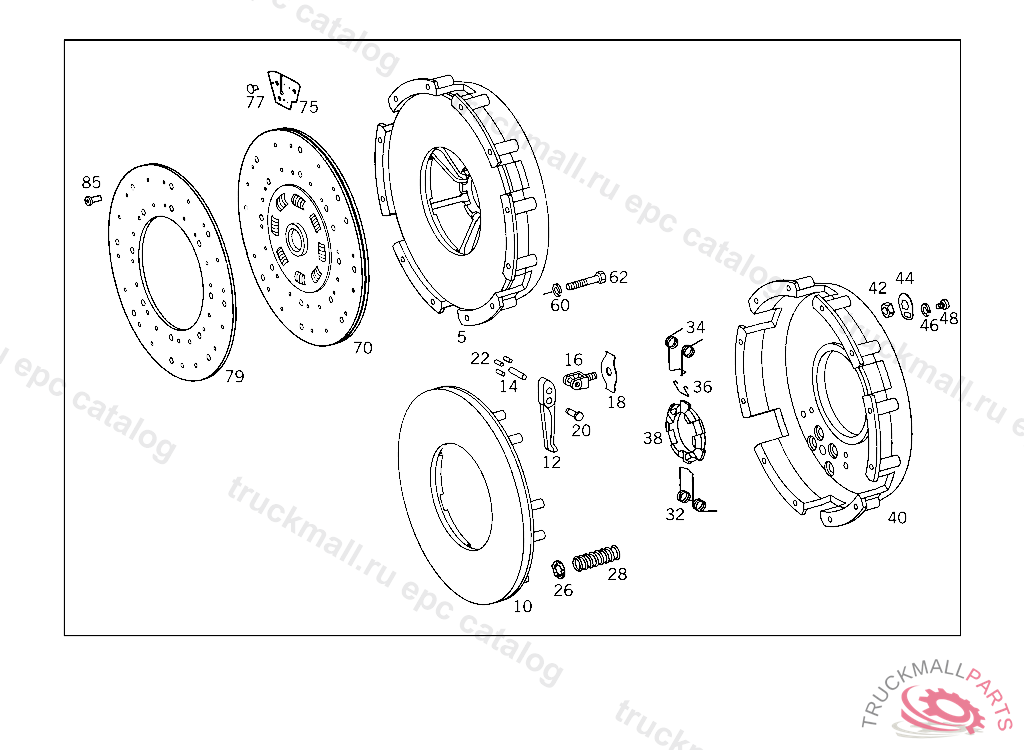

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
CLUTCH PRESSURE PLATE , Replaced By: A0032502204
10
PRESSURE PLATE
12
RELEASE LEVER CLUTCH ACTUATION
12
RELEASE LEVER , Replaced By: A0002524613
14
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
16
BRACKET RELEASE LEVER
16
BRACKET , Replaced By: A0002520614
18
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
18
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
20
SPINDLE , Replaced By: A0002522816, +001A1249945241
20
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
22
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
26
INSULATING WASHER
28
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
28
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
32
SPRING SUSPENDED BELOW LEAF SPRING
32
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
34
SPRING , Replaced By: A0002523227
36
CLAMP , Replaced By: A0002523227
36
CLAMP RELEASE FLANGE TO RELEASE LEVER
36
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
38
FLANGE
38
FLANGETO 001 250 07 04,003 250 20 04
40
HOUSING
42
NUT , Replaced By: A0002523072
42
NUT FOR BRACKETS
44
LOCK , Replaced By: A0002521073
44
LOCK FOR BRACKETS
46
LOCK WASHER BRACKET TO STEERING COLUMN END
48
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
48
SCREW RELEASE LEVER,BRACKET
60
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
62
SCREW , Replaced By: N304017010055
62
SCREW , Replaced By: N304017010050
70
CLUTCH DISC
70
CLUTCH DISC
70
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
75
LEAF SPRING
75
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
77
RIVET , Replaced By: A0002522075
77
RIVET LEAF SPRING TO CLUTCH DISC
77
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
79
CLUTCH LINING
79
CLUTCH LINING ASBESTOS-FREE
79
CLUTCH LINING , Replaced By: A0012522910
79
CLUTCH LINING , Replaced By: A0002523110
85
RIVET , Replaced By: A0002521275
85
RIVET LINING WITH INTERMEDIATE SPRING
85
RIVET LEAF SPRING TO CLUTCH DISC
85
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
85
RIVET LINING WITH CLUTCH DISC,5 563495
999
SLEEVE CLUTCH PRESSURE PLATE
999
PRESSURE PLATE
999
SPRING SUSPENDED BELOW LEAF SPRING
999
SCREW , Replaced By: N000960018109
999
SCREW , Replaced By: N308676018009
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
LOCK PLATE LEVER TO BRACKET
999
LOCK WASHER BELL HOUSING TO TRANSMISSION
