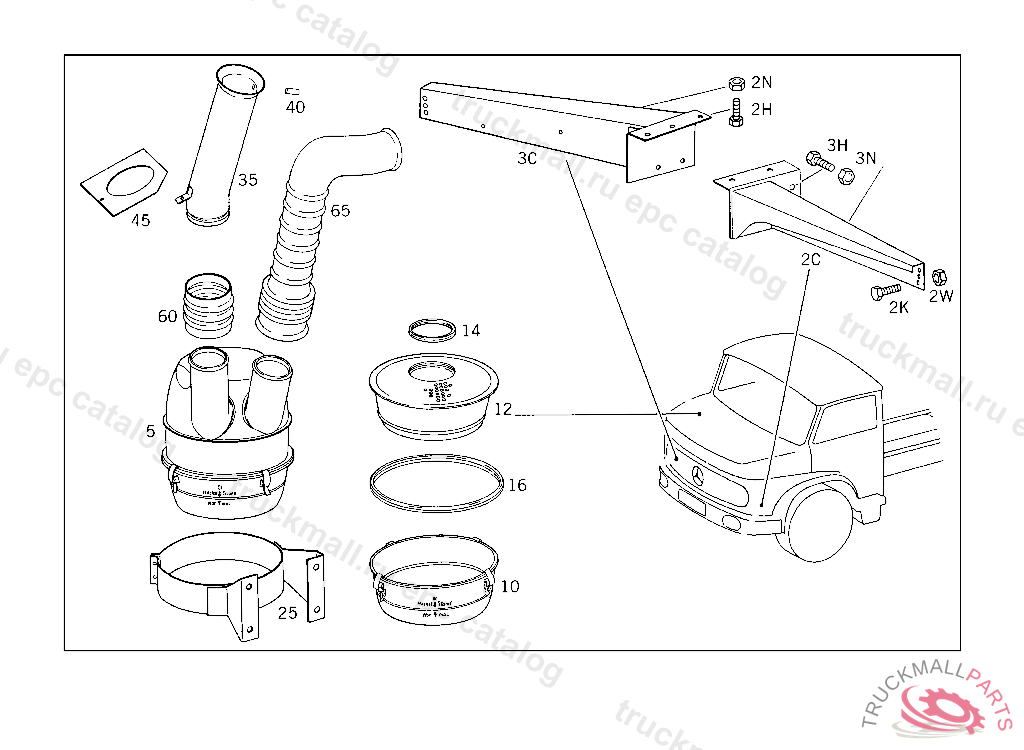

Поз.
Артикул
Описание
5
AIR CLEANER OIL BATH
10
FILTER BOWL
12
FILTER ELEMENT
14
GASKET INSIDE
16
GASKET OUTSIDE
25
BRACKET OIL BATH AIR CLEANER
25
BRACKET OIL BATH AIR CLEANER
35
AIR INTAKE PIPE
35
AIR INTAKE PIPE
40
BUSHING INTAKE MANIFOLD
45
COVERING INTAKE MANIFOLD
60
BOOT OIL BATH AIR CLEANER
65
AIR INTAKE PIPE
65
AIR INTAKE PIPE
999
SNAP RING DIA., 128 MM
999
AIR CLEANER OIL BATH
999
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
999
ANGLE BUMPER,LEFT
999
ANGLE BUMPER,RIGHT
999
ANGLE BUMPER,RIGHT
999
ANGLE BUMPER,LEFT
999
BOOT INTAKE PIPE TO AIR CLEANER
999
SCREW INTAKE PIPE TO AIR BAFFLE
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
SCREW SHIFT CASE TO SLOTTED GATE
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW , Replaced By: N304017008027
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N308673014001
999
SCREW , Replaced By: N308676012026
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW , Replaced By: N308676014020
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
HOSE FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER 80 MM, UP TO IDENT NO. 676464 EXCEPT FOR 500001-599999 ORDER BY THE METER
999
NUT SUPPORT TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
NUT , Replaced By: N910113014001
999
CLAMP , Replaced By: A0059971490
