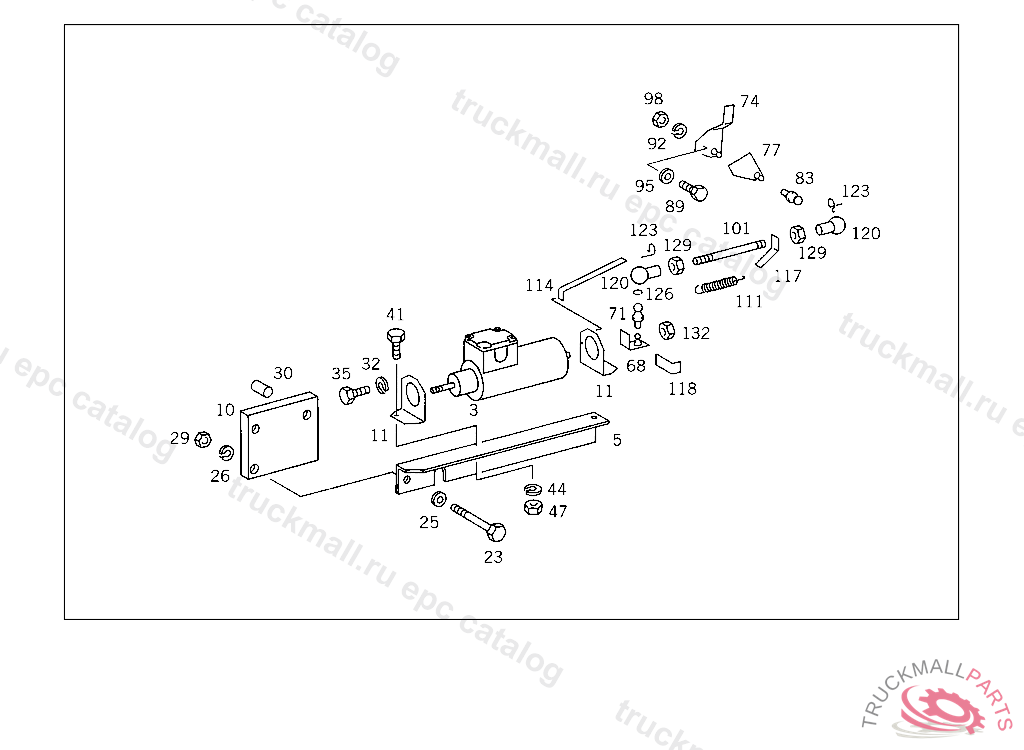

Поз.
Артикул
Описание
3
STOPPING SOLENOID
3
STOPPING SOLENOID
5
SUPPORT MAGNET
5
SUPPORT MAGNET
5
SUPPORT
10
SHIM
11
BRACKET
23
SCREW COMPRESSOR TO MOUNTING PLATE, HALTERUNG KLIMAKOMPRESSOR FA.KONVEKTA
23
SCREW , UP TO CHASSIS: 020 044381, EXCEPT FOR 030624-036882 024,025 044271, EXCEPT FOR 034172-039073 028,029 024154 032,033 039349, EXCEPT FOR 030603-034116
23
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
23
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M 12X60
23
SCREW CONNECTOR TO EXHAUST MANIFOLD
23
SCREW CONNECTOR TO EXHAUST MANIFOLD
23
SCREW FLANGE TO SHAFT M12X50
23
SCREW BRACKET TO SIDE MEMBER M 12X40
23
SCREW , Replaced By: N007984012011
25
WASHER
26
LOCK WASHER FITTING TO BRACKET
29
NUT STRAP TO SUPPORT,5 149419
30
SPACER TUBE BRACKET TO APPARATUS SUPPORT
32
LOCK WASHER LINE MOUNTING
32
LOCK WASHER BRACKET TO STEERING COLUMN END
32
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
SCREW IN CASE OF SUBSEQUENT INSTALLATION
35
SCREW BRACKET TO SOLENOID
35
SCREW COVER PLATE TO COVER PLATE M 6 X 10
35
SCREW , Replaced By: N304017006034
41
SCREW , Replaced By: N304017008021
41
SCREW , Replaced By: N304017008021
41
SCREW PIPE CLAMP
44
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
NUT , Replaced By: N304032008006
47
NUT
68
LEVER , Replaced By: A3140600026
71
BALL PIVOT LEVER
71
BALL PIVOT , Replaced By: A3129910120
74
LEVER
77
BRACKET
83
BALL PIVOT
89
SCREW , Replaced By: N304017006020
89
SCREW LICENSE PLATE TO BRACKET
92
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
95
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
98
NUT BALL PIVOT TO LEVER
101
PULL ROD
101
ROD
111
SPRING
114
BRACKET SPRING
117
BRACKET
118
BRACKET
120
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
123
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
126
SNAP RING SPRING-LOADED PUSH ROD
129
NUT
129
NUT , Replaced By: N304032008006
132
NUT BALL PIVOT TO LEVER
132
NUT BRACKET TO SUPPORT AND TO END PIECE
999
BRACKET ENGINE SUPPORT
999
SPACER TUBE , Replaced By: A3524310353
999
SHAFT (CONTROL SHAFT), NOT USED
999
LEVER
999
CABLE RUN *** PG 11
999
HEADLESS SETSCREW
999
SCREW. CAP BOLT FLANGE TO PUMP, Replaced By: N000912012204
999
SCREW EXHAUST PIPE TO EXHAUST MANIFOLD
999
HEX. HEAD. SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
999
SCREW
999
LEVER AT INJECTION PUMP
999
STOPPING SOLENOID
999
SUPPORT
999
BRACKET
999
BRACKET
999
BRACKET SPRING
