Поз.
Артикул
Описание

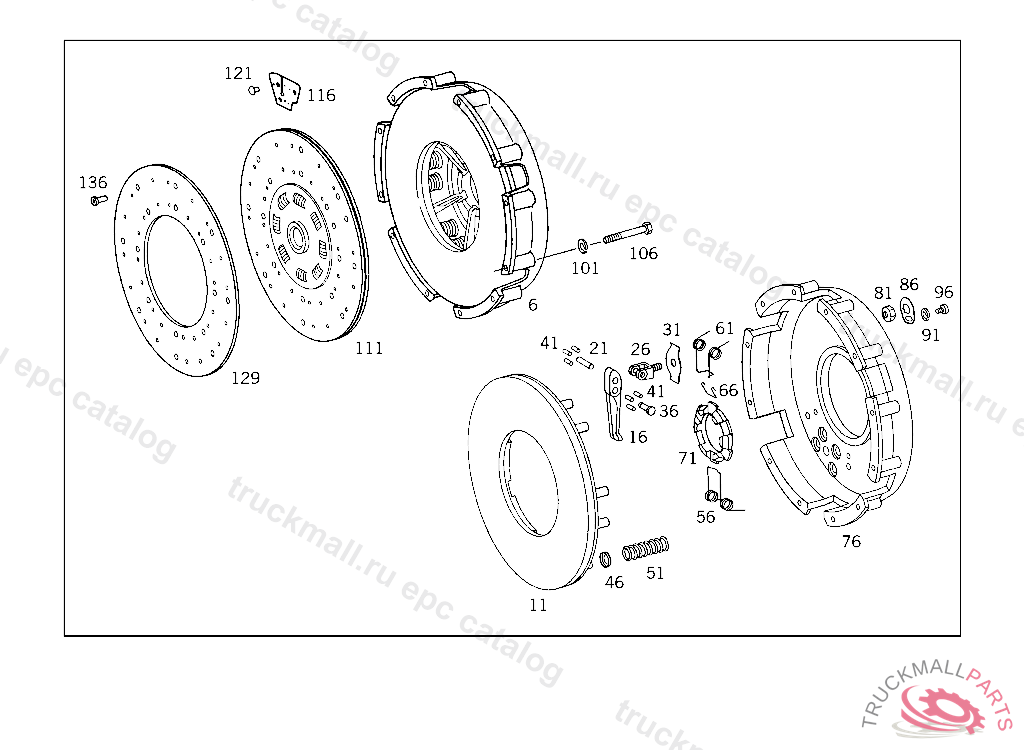

6
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
6
CLUTCH PRESSURE PLATE , Replaced By: A0032502204
11
PRESSURE PLATE
16
RELEASE LEVER CLUTCH ACTUATION
16
RELEASE LEVER , Replaced By: A0002524613
21
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
26
BRACKET RELEASE LEVER
31
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
31
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
36
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
36
SPINDLE , Replaced By: A0002522816, +001N006799007003
41
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
46
INSULATING WASHER
51
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
51
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
56
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
56
SPRING SUSPENDED BELOW LEAF SPRING
61
SPRING , Replaced By: A0002523227
66
CLAMP , Replaced By: A0002523227
66
CLAMP RELEASE FLANGE TO RELEASE LEVER
66
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
71
FLANGE
71
FLANGETO 001 250 07 04,003 250 20 04
76
HOUSING
81
NUT FOR BRACKETS
81
NUT , Replaced By: A0002523072
86
LOCK , Replaced By: A0002521073
86
LOCK FOR BRACKETS
91
LOCK WASHER BRACKET TO STEERING COLUMN END
96
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
96
SCREW RELEASE LEVER,BRACKET
101
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
106
SCREW , Replaced By: N304017010055
106
SCREW , Replaced By: N304017010050
111
CLUTCH DISC
111
CLUTCH DISC
111
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
116
LEAF SPRING
116
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
121
RIVET , Replaced By: A0002522075
121
RIVET LEAF SPRING TO CLUTCH DISC
121
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
129
CLUTCH LINING ASBESTOS-FREE
129
CLUTCH LINING
129
CLUTCH LINING , Replaced By: A0012522910
136
RIVET , Replaced By: A0002521275
136
RIVET LINING WITH INTERMEDIATE SPRING
136
RIVET LEAF SPRING TO CLUTCH DISC
136
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
136
RIVET LINING WITH CLUTCH DISC,5 563495
999
SLEEVE CLUTCH PRESSURE PLATE
999
SPRING SUSPENDED BELOW LEAF SPRING
999
HOUSING , UP TO IDENT NO. 764484 EXCEPT FOR 500001-599999, Replaced By: A3462505005, +008N000960018013
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
SCREW , Replaced By: N000960018109
999
SCREW , Replaced By: N308676018009
999
SCREW BELL HOUSING TO TRANSMISSION
999
SCREWM 18X18X33X55
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
LOCK WASHER SHOCK ABSORBER TO CONSOLE, FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB,FOR USE WITH LONG MERCEDES-BENZ CAB OR LESS MERCEDES-BENZ CAB
