Поз.
Артикул
Описание

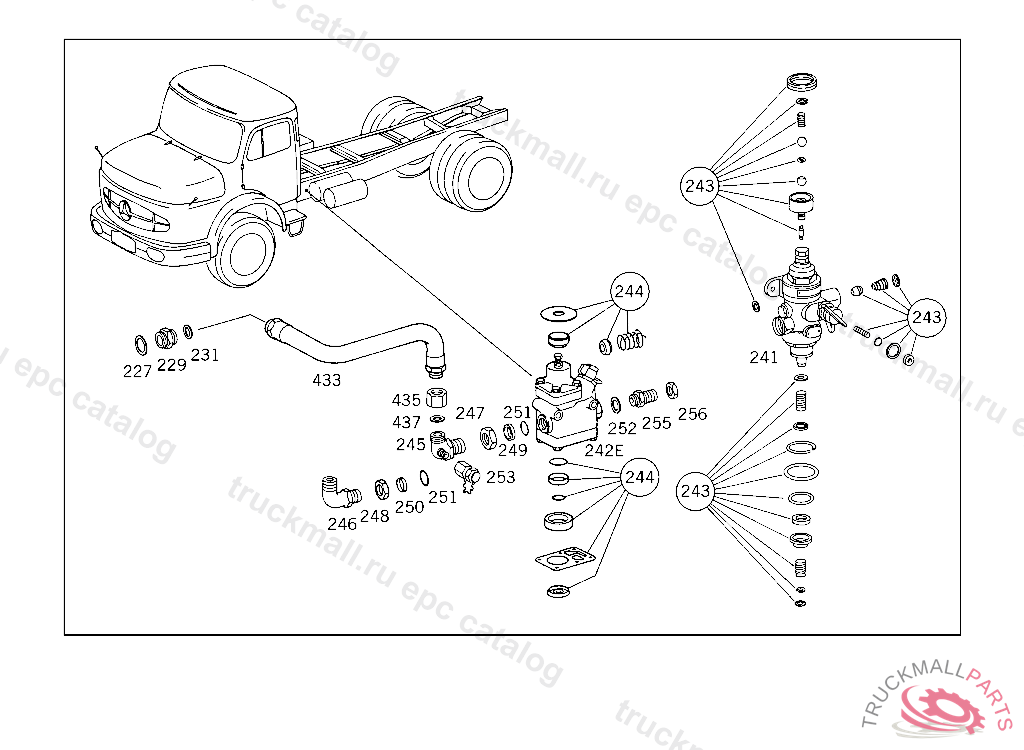

227
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
229
FITTING CONNECTION "2"
231
SEAL RING LINE CONNECTION
241
PRESSURE REGULATOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0024316006
241
PRESSURE REGULATOR , Replaced By: A0024315906
244
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
244
REPAIR KIT , Replaced By: A0004301407
245
ELBOW FITTING AT PRESSURE REGULATOR, 726927-976626
246
ELBOW FITTING LINE CONNECTION
247
NUT SUCTION LINE TO OIL PUMP
248
NUT CHECK VALVE TO AIR RESERVOIR
249
THRUST RING SUCTION LINE TO OIL PUMP
250
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
251
SEALING CORD SUCTION LINE TO OIL PUMP
252
O-RING CHECK VALVE TO AIR RESERVOIR
253
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
253
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
253
TEST CONNECTION
253
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
255
BULKHEAD FITTING THROUGH SIDE MEMBER, BUTT CONNECTION
256
NUT CHECK VALVE TO AIR RESERVOIR
433
BRAKE HOSE , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
435
ADAPTER FITTING FROM COMPRESSED AIR HOSE TO PRESSURE REGULATOR, 726927
437
SEAL RING LINE CONNECTION
999
BUSHING , 036466825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
999
BUSHING , Replaced By: A3634230150
999
PROTECTIVE PLATE , UP TO REAR AXLE 060665, Replaced By: A3664200944, +012N000934016002, +004N000936016007, +008N000960016161
999
SHIM VALVE TO CAB, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW CLAMP MOUNTING M 6X16
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
999
COTTER PINTO 000 429 16 30
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COVER PLATE TO COVER PLATE
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER
999
SPRING WASHER , Replaced By: N000137008212
999
LOCK RING 14X1 DIN 472. RETAINING RING
999
LOCK RINGWABCO,5 433388
999
LOCK RING SHIFT LEVER BEARING
999
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
NUT BALL PIVOT TO LEVER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT STRAP TO SUPPORT
999
NUT , Replaced By: N308673016001
999
NUT STEERING SHAFT TO BOX, 738938
999
NUT
999
SCREW , Replaced By: N308676012031
999
SCREW PISTON TO AIR-SPRING-BELLOWS SUPPORT,K 103333
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N308676012026
999
CONNECTION FITTING , Replaced By: A0039979172
999
BULKHEAD FITTING AT SIDE MEMBER,4 367108
999
SEAL RING AT OPERATING VALVE
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RINGTO 006 997 00 72
999
SEAL RING LINE CONNECTION
999
SCREW , Replaced By: N000000001146
999
DOUBLE FITTING , Replaced By: A0019972872
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
T-FITTING
999
FITTING , Replaced By: A0029971872
999
FITTING LINE MOUNTING
999
FITTING , Replaced By: A0009970171
999
FITTING , Replaced By: A0019972372
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
999
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW , Replaced By: N308676012011
999
CLAMP HOSE TO FITTING
999
CLAMPTO 005 420 99 18
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
NUT BRACKET TO SIDE MEMBER
999
UNION NUT FEED LINE
999
SEAL RING , Replaced By: N007603012121
999
CLAMP , Replaced By: N000000000667
999
HOSE FRONT/REAR AXLE BRAKE HOSE 13X22 MM, ORDER BY THE METER
999
FITTING RELAY VALVE,CONNECTION: "1,2"
999
BUSHING , Replaced By: A3464210550
999
SPACER WASHER , Replaced By: A3174210352
999
SPACER WASHER
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
BRACKET RELAY VALVE,600893 350.033 UP TO IDENT NO. 680088
999
REPAIR KIT BRAKE SHOE ROLLER, UP TO CHASSIS 4 387020, FROM CHASSIS SEE SPARE PARTS LIST 739.0
999
BEARING BRACKET RIGHT
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210510, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210610, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210710, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230210, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230310, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230410, +016A3079900297
999
PIVOT PIN ,036408, Replaced By: A3354210218, +001A3354230144, +002N074361022203, +002N074361022351
999
THRUST SHACKLE ,036408, Replaced By: A3354230144, +002A3354210218, +002N074361022204, +002N074361022351
999
BUSHING , Replaced By: A3634230150
999
BRAKE LINING , Replaced By: A3434230610
999
BRAKE LINING , Replaced By: A3434230710
999
BRAKE LINING , Replaced By: A3434230810
999
GUIDE
999
ROLLER , Replaced By: A3014200039, +002A0039971548
999
REPAIR KIT ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3 NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIER KIT
999
BEARING BRACKET RIGHT,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
999
BUSHING , Replaced By: A3464210550
999
BRACKET FUEL LINE
999
BRACKET OIL LINE MOUNTING
999
BRACKET JOINT TO FRAME,4 645187
999
BRACKET
999
BRACKET , Replaced By: A3464296440
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
THRUST PIECE BRAKE SHOE TO BRAKE ANCHOR
999
ROLLER , Replaced By: A3014200039, +002A0039971548
999
GROMMET
999
SEAL RING BRAKE HOSE
999
HOSE , TO 004 420 11 18,005 420 94 18
999
SEAL RING , 019908
999
SEAL RING , 765123
999
SEAL RING , 765123
999
SEAL RING , 019908
999
SEAL RING17.12X2.62 MM, 402,407 FROM CHASSIS 657000
999
SEAL RING12.42X1.78 MM,WABCO,002 0,012 0
999
SEAL RING32.99X2.62 MM,WABCO,002 0,012 0
999
SEAL RING6.07X1.78 MM,WABCO,002 0,012 0
999
SEAL RING
999
SEAL RING34.6X2.6 MM
999
SEAL RING
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 000 429 65 44, NOT USED
999
SEAL RING74.20X5.70 MM,WABCO
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING22.3X2.4 MM,GRAU
999
WHEEL BRAKE CYLINDER , Replaced By: A0074201218
999
WHEEL BRAKE CYLINDER ,4 304303, Replaced By: A0074201218, +002N913004016004
999
WHEEL BRAKE CYLINDER , FROM CHASSIS 868037 EXCEPT FOR 500001-520913, Replaced By: A0074201218, +002N913004016004
999
SEAL RING BRAKE HOSE
999
SEAL RING BRAKE SHOE ROLLER
999
VALVE RELAY VALVE KNORR
999
VALVE OVERFLOW VALVE WITH RETURN FLOW KNORR
999
VALVE OVERFLOW VALVE
999
WHEEL BRAKE CYLINDER , 019908, Replaced By: A0034204718, +002N007603022100, +002N074298022202
999
LOOM TIE , Replaced By: N916017020000
999
FITTING BRAKE HOSE,5 418584
999
SPRING , 765123
999
SPRING , TO 000 429 81 44
999
REPAIR KITTO 000 434 11 01
999
REPAIR KITTO 001 431 79 05, FROM CHASSIS 4 375194-4 428563
999
REPAIR KITGRAU,5 148812
999
REPAIR KIT , Replaced By: A0024301560
999
REPAIR KITKNORR
999
REPAIR KITKNORR
999
REPAIR KIT , Replaced By: A0004301168
999
REPAIR KIT , Replaced By: A0025865242
999
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
999
PRESSURE REGULATORBOSCH
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO,K 262627
999
VALVE OVERFLOW VALVE WITH RETURN FLOW GRAU
999
REPAIR KIT DIAPHRAGM PART TO 008 420 62 18, KNORR
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
999
PLUGTO 001 420 39 24,001 420 40 24,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
999
LOOM TIE , Replaced By: N900288014002
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
SPRINGTO 000 429 63 44,000 429 59 44
999
REPAIR KIT , Replaced By: A0004301107
999
SPRINGTO 000 434 21 01
999
PRESSURE REGULATOR , Replaced By: A0024316006
999
PRESSURE REGULATOR , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 4 208908-5 148812, Replaced By: A0024315906
999
PRESSURE REGULATORWABCO
999
PRESSURE REGULATOR"WABCO",486597
999
GASKET , Replaced By: A0004311980
999
SEAL RING86X2 MM,GRAU
999
SEAL RING28X2 MM,GRAU
999
SPRING
999
SPRING
999
BRAKE VALVE , Replaced By: A0014312405
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
VALVE OVERFLOW VALVE
999
VALVE , Replaced By: A0034295244
999
VALVE (RELAY VALVE) GRAU
