Поз.
Артикул
Описание

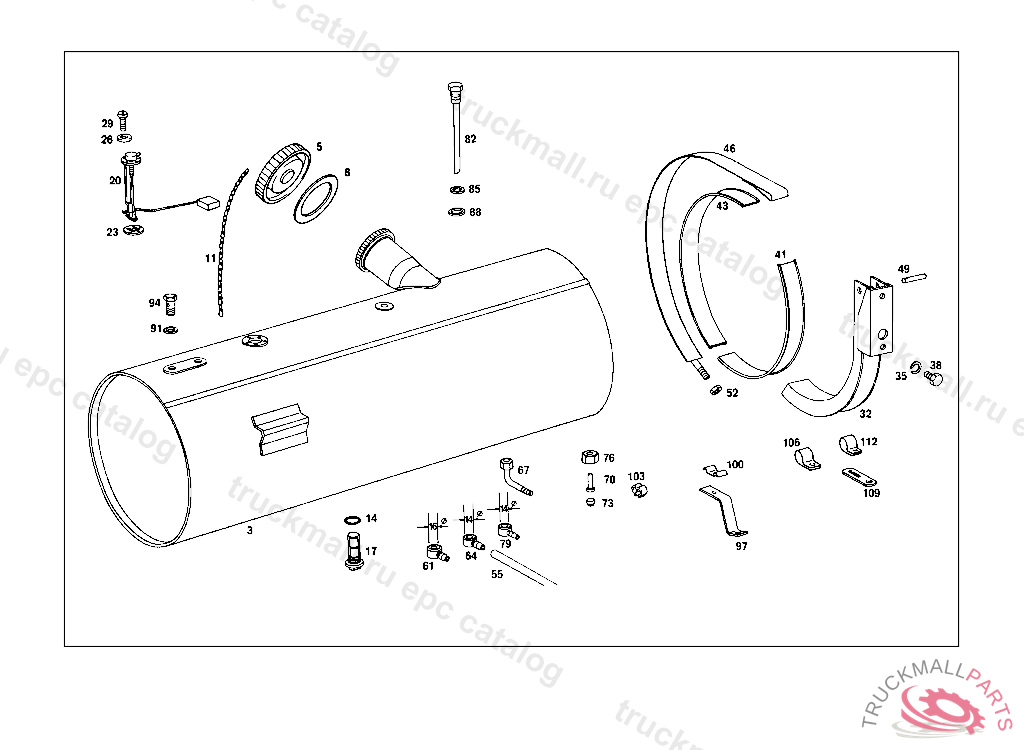

3
FUEL TANK200 L, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
5
FILLER CAP
8
SEAL RING
11
CHAIN FILLER CAP
14
SEAL RING FUEL STRAINER SCREEN
17
FUEL STRAINER AT TANK
17
FUEL STRAINER FUEL TANK
20
SENDER UNIT FUEL GAUGE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
23
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
23
GASKET SENDER UNIT AND COVER TO FUEL TANK
26
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
29
SCREW HOOK TO BRACKET
29
SCREW , Replaced By: N007985005175
32
SUPPORT FOR FRONT TANK, UP TO CHASSIS 641814 RANGE OF DELIVERY INCLUDES:1XSTRAP 337 470 12 40,1XPIN 001433 016010,2XCOTTER PIN 000094 004025
32
SUPPORT REAR
35
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
38
SCREW BRACKET TO SIDE MEMBER
41
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
43
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
46
STRAP FUEL TANK,4 492432
49
PIN STRAP TO SUPPORT
52
NUT STRAP TO SUPPORT
55
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
61
BANJO UNION , Replaced By: N915052008019
61
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
64
BANJO UNION , Replaced By: N000000000363
67
ELBOW FITTING RETURN
70
SLEEVE LEAK LINE
70
BUSHING , Replaced By: N915062004000
73
SEAL CONE
73
GLAND , Replaced By: A0019901667
76
UNION NUT
79
BANJO UNION , Replaced By: N000000000364
79
BANJO UNION , Replaced By: N915052004007
82
RISING PIPE , Replaced By: A3609900263
85
SEAL RING CONNECTION: 1,4 719029
88
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
91
SEAL RING FUEL LINE TO FEED PUMP
94
HOLLOW SCREW FUEL LINE TO FEED PUMP
94
HOLLOW SCREW , Replaced By: N915036010108
97
BRACKET FUEL LINE
100
CLAMP
103
CLAMP FEED & RETURN
106
CLAMP , Replaced By: N916016018202
106
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
109
BRACKET OIL LINE MOUNTING,5 059970
112
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
112
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
BUSHING , Replaced By: N915062004000
999
LOOM TIE LINE MOUNTING
999
SEAL RING
999
FILLER CAP , Replaced By: A3094700005
999
FUEL STRAINER AT TANK
999
RUBBER SECTION RESERVOIR, ORDER BY THE METER
999
BRACKET FUEL LINE TO FRAME
999
HOLLOW SCREW RISING PIPE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310 008 997 54 82,446 MM LONG
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
BRACKET , Replaced By: A3852670040
999
BRACKET FUEL LINES TO TRANSMISSION
999
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017008021
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N308676012012
999
SEAL RING
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW PIPE CLAMP
999
NUT
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER FITTING TO BRACKET
