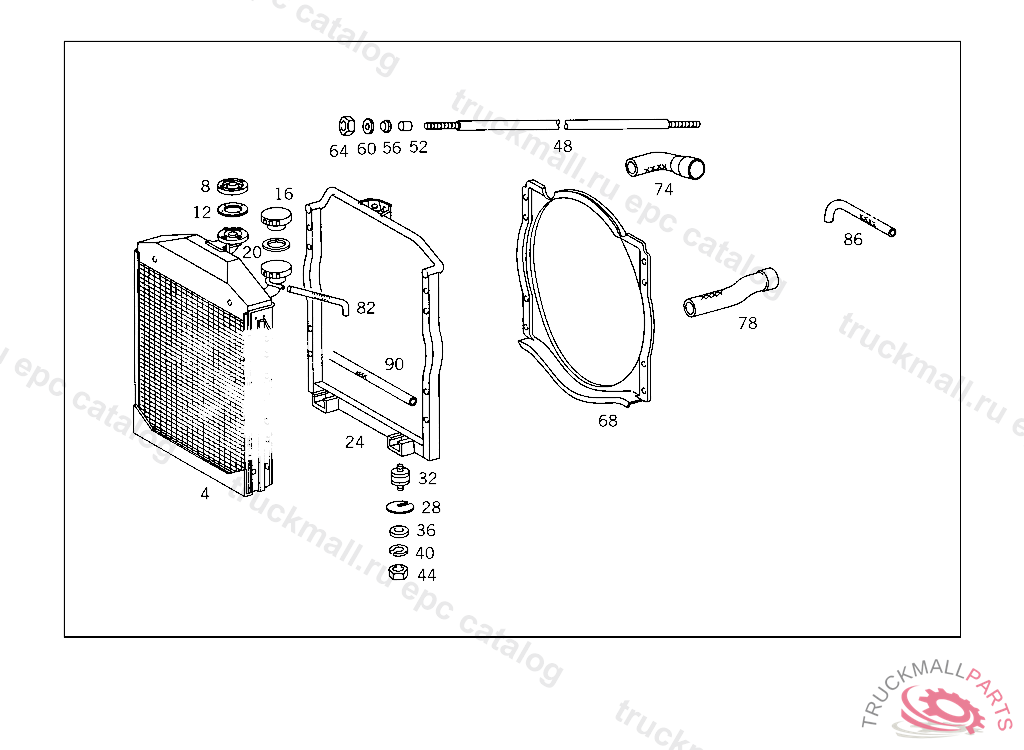

Поз.
Артикул
Описание
4
RADIATORBEHR
4
RADIATOR , Replaced By: A3465005803, +001A3465015982
8
RADIATOR CAPTO 346 500 50 03,4 2993464 787608
12
GASKET
16
RADIATOR CAPTO 346 500 54 03,4 299346
20
GASKETTO 346 500 54 03
24
SUPPORT , 007551
28
SHIM , L FROM CHASSIS 000151 ALSO INSTALLED ON 000087-000092,000098-000107,000143,LP FROM CHASSIS 000067
32
RUBBER MOUNTING
36
WASHER RADIATOR TO RUBBER MOUNTING
36
WASHER , Replaced By: N000125010532
40
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
44
NUT BRACKET TO SUPPORT AND TO END PIECE
48
RADIATOR STRUT , Replaced By: A3385000045
48
RADIATOR STRUT
52
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
56
RUBBER RING SHOCK ABSORBER MOUNTING
60
WASHER , Replaced By: N009021006208
60
WASHER COMPRESSED AIR LINE TO BRACKET
64
NUT BRACKET TO SUPPORT AND TO END PIECE
68
AIR BAFFLE
74
HOSE FROM INLET,OR COOLING WATER LINE,TO THERMOSTAT
78
HOSE LOWER COOLING WATER LINE TO RADIATOR & OIL COOLER
82
HOSE DE-AERATION
86
HOSE HEATING PIPE
90
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
VALVE WATER DRAIN
999
RADIATOR CAPTO 346 500 54 03,4 299345
999
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
999
HOSE OVERFLOW
999
SUPPORT , Replaced By: A3355001127
999
RADIATOR , Replaced By: A3465005403
999
RADIATOR ,4 787608, Replaced By: A3465005903, +001A3465015982
999
RADIATORHAUGG,4 787609
999
HOSE DE-AERATION AT UPPER COOLING WATER PIPE, FROM IDENT NO. 4 742813 EXCEPT FOR 4 743433-4 745018,4 745860-4 746037
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP HOSE FASTENING 50-70X13 MM
999
SCREW , Replaced By: N304017008043
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SCREW VALVE TO BRACKET M 8X55
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N000000000667
999
CLAMP , Replaced By: N000000000672
