Поз.
Артикул
Описание

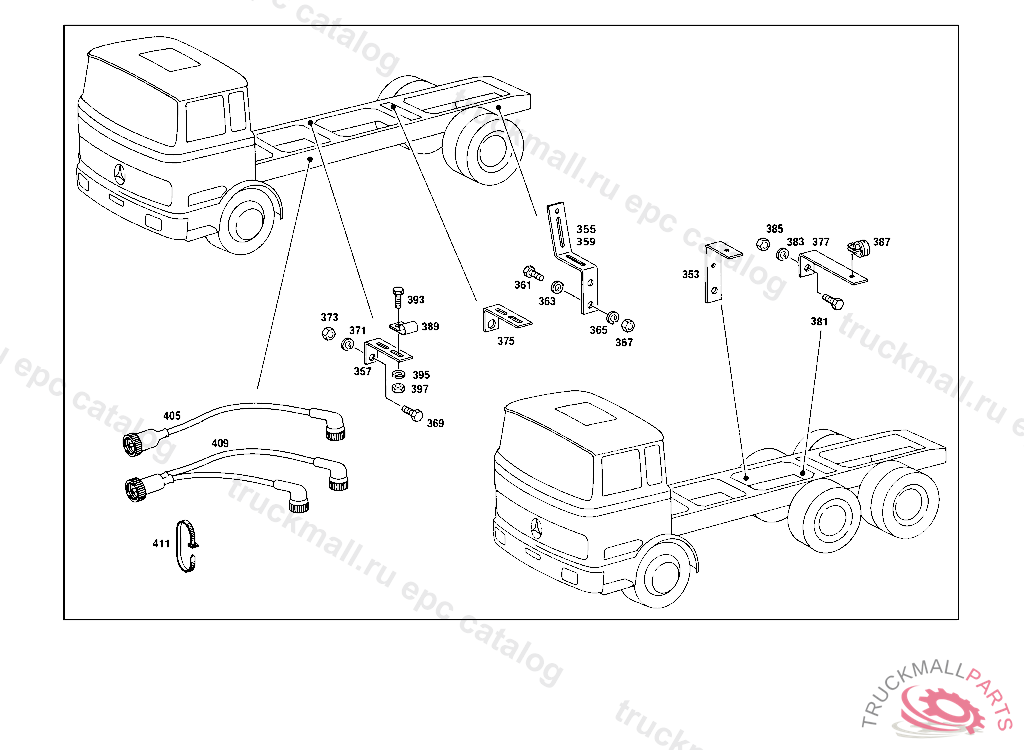

353
BRACKET
355
BRACKET JOINT TO FRAME,4 645187
357
BRACKET OIL LINE MOUNTING
357
BRACKET , Replaced By: A3464296040
359
BRACKET JOINT TO FRAME,4 645187
361
SCREW BRACKET TO CROSS CONNECTION STRUT
361
SCREW , Replaced By: N304017008034
363
WASHER BRACKET TO LEFT SIDE MEMBER
363
WASHER , Replaced By: N009021008213
363
WASHER EXHAUST MUFFLER TO STRAP
363
WASHER , Replaced By: N000125008443
365
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
367
NUT
369
SCREW END PIECE TO EXHAUST PIPE M 10X25
371
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
373
NUT
373
NUT , Replaced By: N304032010002
373
NUT BRACKET TO SUPPORT AND TO END PIECE
375
BRACKET OIL LINE MOUNTING
375
BRACKET FUEL LINE
377
BRACKET FROM AIR COMPRESSOR TO PRESSURE REGULATOR
377
BRACKET , Replaced By: A3833020540
381
SCREW END PIECE TO EXHAUST PIPE M 12X30
381
SCREW , Replaced By: N304017012020
383
LOCK WASHER FITTING TO BRACKET
385
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
385
NUT , Replaced By: N308673012002
387
CLAMP HOSE TO FLANGE AND TO VALVE
389
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
389
CLAMP ,K 147121, Replaced By: N000000000319
389
CLAMP , Replaced By: N916016008200
389
CLAMP , Replaced By: A3604300143
389
CLAMP DELIVERY AND SUCTION LINES TO STEERING
389
CLAMP , Replaced By: A6739950001
389
CLAMP LINE MOUNTING
393
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
395
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
397
NUT BALL PIVOT TO LEVER
405
ELECTRIC CABLE , FROM HANDBRAKE CIRCUIT CONTROT AND CABLE CONNECTOR TO PLUG CONNECTION
405
ELECTRIC CABLE , FROM HANDBRAKE CIRCUIT CONTROT AND CABLE CONNECTOR TO PLUG CONNECTION
405
ELECTRIC CABLE , FROM HANDBRAKE CIRCUIT CONTROT AND CABLE CONNECTOR TO PLUG CONNECTION
405
ELECTRIC CABLE , FROM HANDBRAKE CIRCUIT CONTROT AND CABLE CONNECTOR TO PLUG CONNECTION
409
ELECTRIC CABLE , FROM PLUG CONNECTION TO HANDBRAKE CIRCUIT CONTROL AT AIR RESERVOIR
411
LOOM TIE LINE MOUNTING 280 MM
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SEAL RINGTO 000 429 16 31,4 940458
999
ELBOW FITTING , Replaced By: A0004294638
999
VALVE (OVERFLOW VALVE) WESTINGHOUSE
999
VALVE
999
VALVE , Replaced By: A0014296344
999
REPAIR KITKNORR
999
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE VALVE TWO-CIRCUIT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
RESERVOIR ,5 934167, Replaced By: A0034322501, +001A6554320073
999
RESERVOIR , Replaced By: A0034321101
999
RESERVOIR , Replaced By: A0034322301
999
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
999
RESERVOIR , Replaced By: A0004324301
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
SWITCH , Replaced By: A0005456009
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
REPAIR KITTO 001 431 00 05,001 431 24 05
999
REPAIR KIT , Replaced By: A0015860843
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 001 431 35 05,001 431 94 05,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
T-FITTING AT AIR RESERVOIR
999
T-FITTING 3/2-WAY VALVE
999
HANDLETO 000 429 16 31,4 940458
999
BRAKE VALVE
999
BRAKE VALVE
999
FITTING , Replaced By: N915062006000
999
SEAL RINGTO 000 429 16 31,4 940458
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
BRACKET
999
STRAP
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
UNION NUT
999
FITTING
999
FITTING
