Поз.
Артикул
Описание

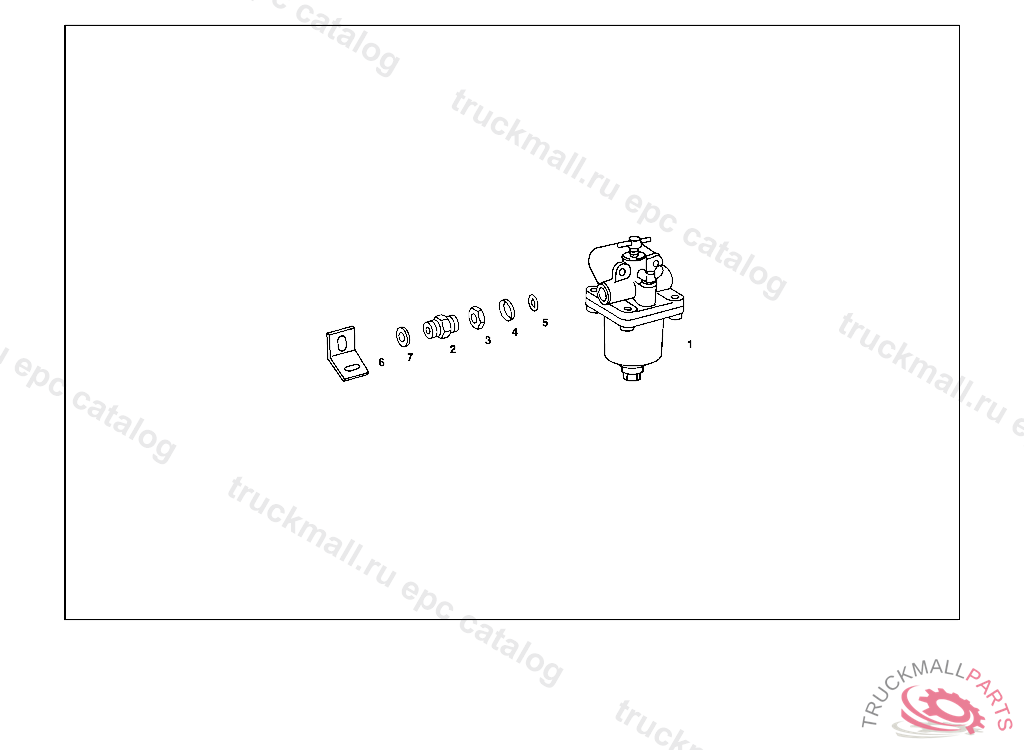

1
ANTI-FREEZE DEVICE
2
FITTING , Replaced By: A0019972372
2
FITTING SHUTTLE VALVE,CONNECTION: "20"
3
NUT CHECK VALVE TO AIR RESERVOIR
4
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
4
THRUST RING CHECK VALVE TO AIR RESERVOIR
5
O-RING CHECK VALVE TO AIR RESERVOIR
6
BRACKET , UP TO CHASSIS 4 239060 EXCEPT FOR 500000-528881
7
SEAL RING LINE CONNECTION
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
BULKHEAD FITTING THROUGH SIDE MEMBER, BUTT CONNECTION
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N308676012026
999
NUT STRAP TO SUPPORT
999
SCREW , Replaced By: N304017008016
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW REAR AXLE REGULATING SOLENOID VALVE
999
SCREW , Replaced By: N000933008134
999
WASHER GROUND STRAP TO ENGINE, UP TO CHASSIS 4 602752,EXCEPT FOR 551570-599999
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET , FROM CHASSIS 4 239061 ALSO INSTALLED ON 528882-599999
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
REPAIR KITTO 000 431 21 15,WEST 432 199 010 0
999
VALVE DRAIN, Replaced By: A0004322107
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322407
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
SCREW PLUG WITH DIPSTICK
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
