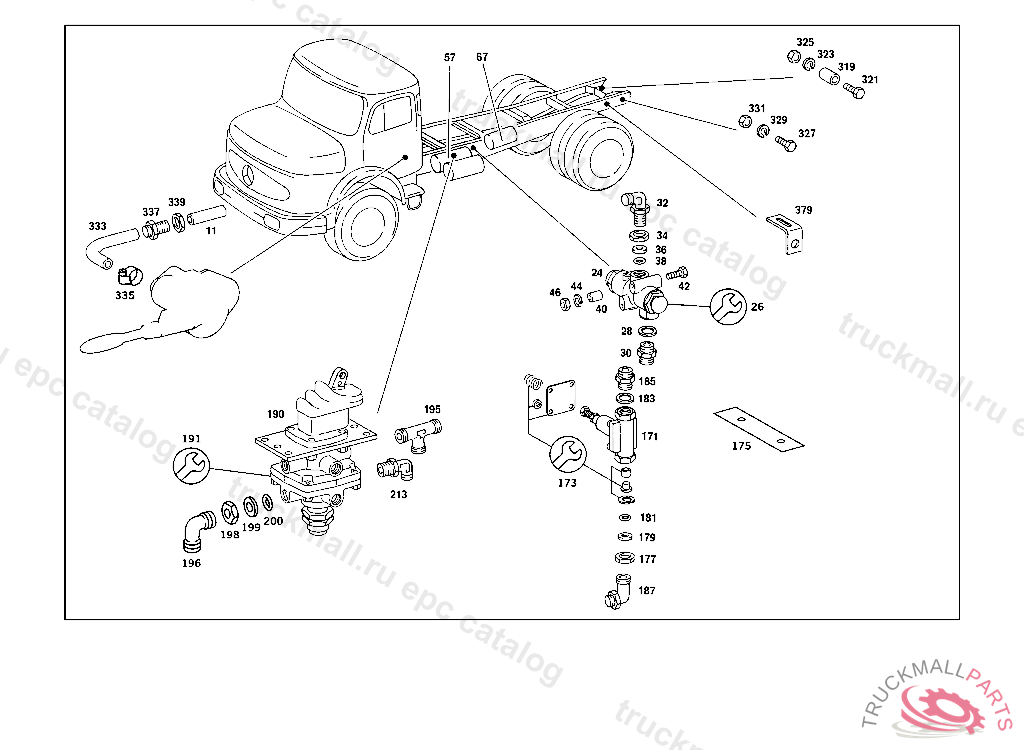

Поз.
Артикул
Описание
11
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
24
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
26
REPAIR KIT
26
REPAIR KIT , Replaced By: A0015860843
28
SEAL RING LINE CONNECTION
30
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
32
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
32
ELBOW FITTING , Replaced By: A0004294638
34
NUT CHECK VALVE TO AIR RESERVOIR
36
THRUST RING CHECK VALVE TO AIR RESERVOIR
36
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
38
O-RING CHECK VALVE TO AIR RESERVOIR
40
PIN TEST CONNECTION TO REAR AXLE
40
SPACER TUBE , Replaced By: A3872640974
42
SCREW VALVE TO CAB M 8X85
44
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
46
NUT
57
RESERVOIR40L,276 MM,8.5 BAR
57
RESERVOIR , Replaced By: A0034322501
67
RESERVOIR30L,246 MM,12.5 BAR
67
RESERVOIR , Replaced By: A0034321801
171
VALVE (OVERFLOW VALVE) 1.5BAR
171
VALVE , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 422115, Replaced By: A0014294744
173
REPAIR KITTO 001 429 52 44
173
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
173
REPAIR KITTO 001 429 52 44
173
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
173
REPAIR KITTO 000 429 63 44,000 429 59 44
175
BRACKET
177
NUT CHECK VALVE TO AIR RESERVOIR
179
THRUST RING CHECK VALVE TO AIR RESERVOIR
179
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
181
O-RING CHECK VALVE TO AIR RESERVOIR
183
SEAL RING LINE CONNECTION
185
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
187
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
187
ELBOW FITTING , Replaced By: A0004294638
190
BRAKE VALVE
191
REPAIR KIT COMPRESSED AIR CYLINDER TO 001 431 35 05,001 431 94 05,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
195
T-FITTING
195
T-FITTING
196
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
198
NUT CHECK VALVE TO AIR RESERVOIR
199
THRUST RING CHECK VALVE TO AIR RESERVOIR
199
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
200
O-RING CHECK VALVE TO AIR RESERVOIR
213
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
319
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
321
SCREW
323
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
325
NUT
327
SCREW VALVE TO BRACKET
327
SCREW VALVE TO BRACKET, Replaced By: N304014008002
329
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
329
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
331
NUT
333
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
335
CLAMP LINE CONNECTION
337
FITTING HYDRAULIC LINE TO BRACKET,K 130132
339
NUT RELEASE BEARING LUBRICATION
339
NUT , Replaced By: N308675014002
339
NUT , Replaced By: N308675014000
379
BRACKET OIL LINE MOUNTING
379
BRACKET , Replaced By: A3464296040
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SEAL RINGTO 000 429 16 31,4 940458
999
VALVE (OVERFLOW VALVE) WESTINGHOUSE
999
VALVE
999
VALVE , Replaced By: A0014296344
999
REPAIR KITKNORR
999
BRAKE VALVE TWO-CIRCUIT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
RESERVOIR ,5 934167, Replaced By: A0034322501, +001A6554320073
999
RESERVOIR , Replaced By: A0034321101
999
RESERVOIR , Replaced By: A0034322301
999
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
999
RESERVOIR , Replaced By: A0004324301
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
SWITCH , Replaced By: A0005456009
999
REPAIR KITTO 001 431 00 05,001 431 24 05
999
T-FITTING AT AIR RESERVOIR
999
T-FITTING 3/2-WAY VALVE
999
HANDLETO 000 429 16 31,4 940458
999
BRAKE VALVE
999
BRAKE VALVE
999
FITTING , Replaced By: N915062006000
999
SEAL RINGTO 000 429 16 31,4 940458
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
BRACKET
999
STRAP
999
UNION NUT
999
FITTING
999
FITTING
