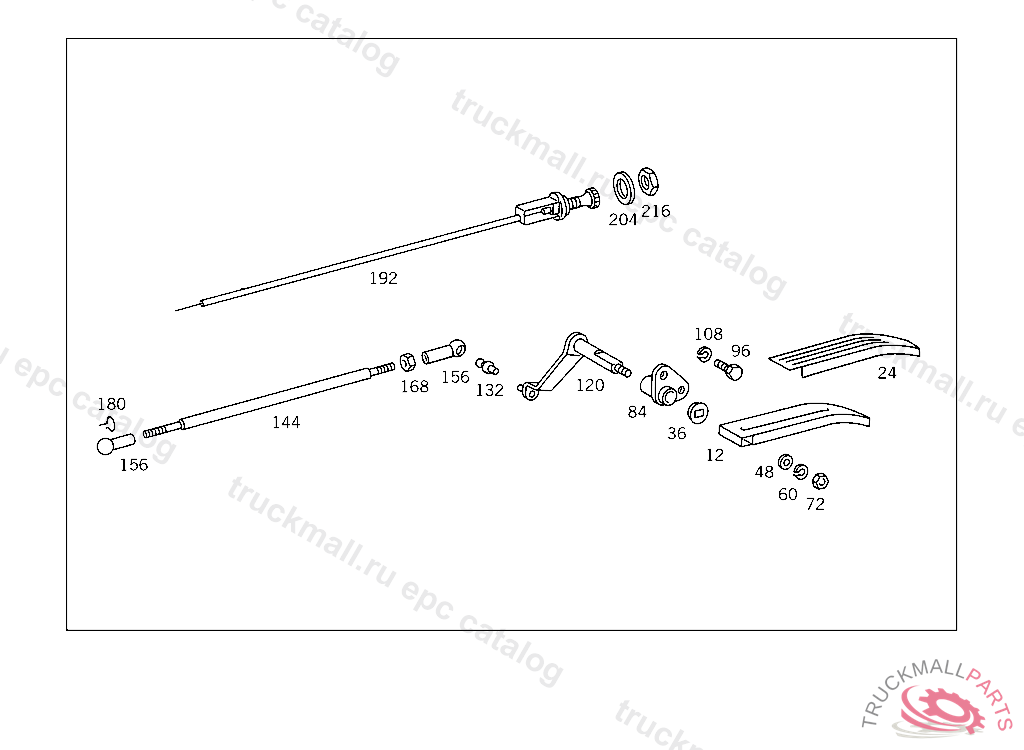

Поз.
Артикул
Описание
12
PLATE ACCELERATOR PEDAL
24
COVERING ACCELERATOR PEDAL BEARING
36
GUARD PLATE ACCELERATOR PEDAL BEARING
48
WASHER , Replaced By: N000125008443
60
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
72
NUT , Replaced By: N304032008006
84
BEARING TUBE ACCELERATOR PEDAL CONTROL
96
SCREW CLAMP TO BRACKET AND TO PIPE
108
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
120
LEVER (CONTROL LEVER)
132
BALL PIVOT LEVER
132
BALL PIVOT , Replaced By: A3129910120
144
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
156
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
156
BALL SOCKET PULL ROD TO LEVER
168
NUT BALL PIVOT TO LEVER
180
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
192
MANUAL CONTROL
204
WASHER STARTER PILOT PUMP
216
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
