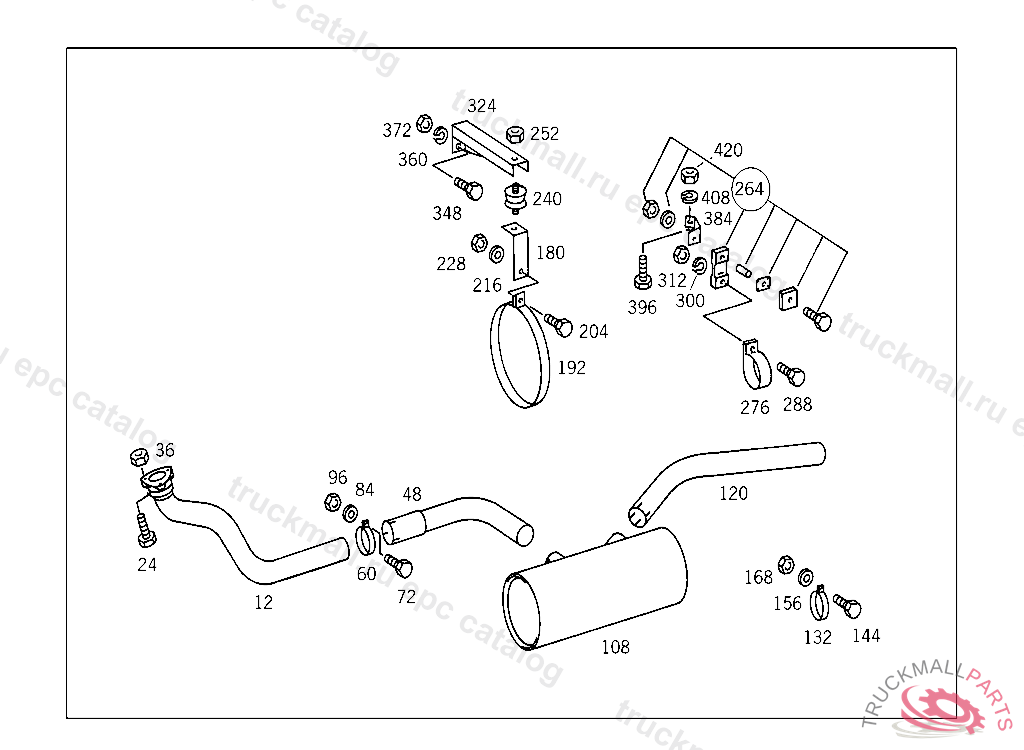

Поз.
Артикул
Описание
12
EXHAUST PIPE FRONT,FRONT PART, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
24
SCREW CONNECTOR TO EXHAUST MANIFOLD
36
NUT CONNECTOR TO EXHAUST MANIFOLD
48
FRONT EXHAUST PIPE FRONT,REAR PART, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
60
CLAMP ATTACHMENT FOR CHARGE AIR PIPE,HOT
72
SCREW , Replaced By: N304017010002
84
WASHER , Replaced By: N000125010532
96
NUT , Replaced By: N910113010000
108
EXHAUST MUFFLER
120
REAR EXHAUST PIPE
132
CLAMP INTERMEDIATE PIECE
144
SCREW , Replaced By: N304017010002
156
WASHER , Replaced By: N000125010532
168
NUT , Replaced By: N910113010000
180
BRACKET EXHAUST MUFFLER
192
CLAMP EXHAUST MUFFLER TO BRACKET
204
SCREW , Replaced By: N304017010002
216
WASHER , Replaced By: N000125010532
228
NUT , Replaced By: N910113010000
240
RUBBER MOUNTING
252
NUT , Replaced By: N910113010000
264
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
276
CLAMP REAR EXHAUST PIPE TO BRACKET
288
SCREWM 8X40
288
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
300
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
312
NUT , Replaced By: N913004008001
324
SUPPORT EXHAUST MUFFLER SUSPENSION, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
324
SUPPORT EXHAUST MUFFLER TO SIDE MEMBER
348
SCREW CONSOLE TO SIDE MEMBER
348
SCREW BRACKET TO FRAME M 12X35
360
LOCK WASHER FITTING TO BRACKET
372
NUT STRAP TO SUPPORT
384
BRACKET EXHAUST PIPE TO CROSS MEMBER
396
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
408
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
420
NUT BRACKET TO SUPPORT AND TO END PIECE
