Поз.
Артикул
Описание

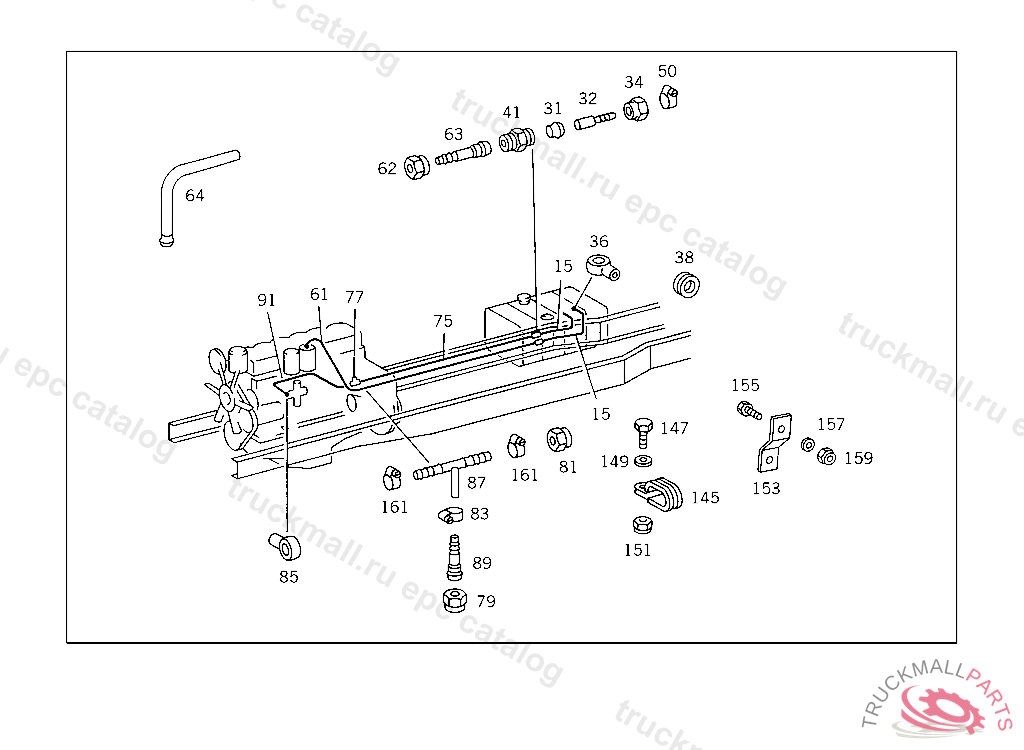

15
LINE FROM FUEL TANK TO FITTING, FROM IDENT NO. 680089
15
LINE FROM FUEL TANK TO FITTING, FROM IDENT NO. 680089
31
BALL-TYPE NIPPLE
32
FITTING
34
NUT. UNION NUT RETURN
34
NUT. UNION NUT RETURN
36
BANJO UNION , Replaced By: N915052008019
38
GROMMET LINE PASSAGE AT SIDE MEMBER
41
DOUBLE FITTING AT TANK
50
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
61
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
62
NUT. UNION NUT RETURN
63
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
64
CONNECTOR
75
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
77
HOSE , ORDER BY THE METER
77
HOSE RETURN LINE TO ENGINE, ORDER BY THE METER
79
UNION NUT
81
NUT. UNION NUT RETURN
83
CLAMP LINE MOUNTING
85
BANJO UNION FEED 8/14 MM,659794
87
DISTRIBUTOR LEAK LINE,659794
89
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
91
LINE FUEL LINE TO CYLINDER HEAD,689885
145
CLAMP FUEL LINES TO BRACKET
147
SCREW LINES TO BRACKET
149
WASHER BRACKET TO CAB REAR PANEL
151
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
151
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
153
BRACKET CABLE TO TRANSMISSION
155
SCREW CLAMP TO BRACKET
157
WASHER PLUG SOCKET TO BRACKET
159
NUT PUMP TO BRACKET
161
LOOM TIE ELECTRIC CABLE MOUNTING
161
LOOM TIE , Replaced By: A3459977390
161
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
161
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
SENDER UNIT , Replaced By: A3455427617
999
BRACKET , Replaced By: A3444760336
999
WASHER , Replaced By: A3449900140
999
LINE , Replaced By: A3454707964
999
FUEL TANK , Replaced By: A3454707101
999
LINE FROM ENGINE TO RUBBER HOSE,689884
999
SENDER UNIT , Replaced By: A3455427917
999
SENDER UNIT , Replaced By: A3505427017
999
SUPPORT , Replaced By: A3504707242
999
CONSOLE , Replaced By: A3504707242
999
FUEL STRAINER AT TANK
999
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
