Поз.
Артикул
Описание

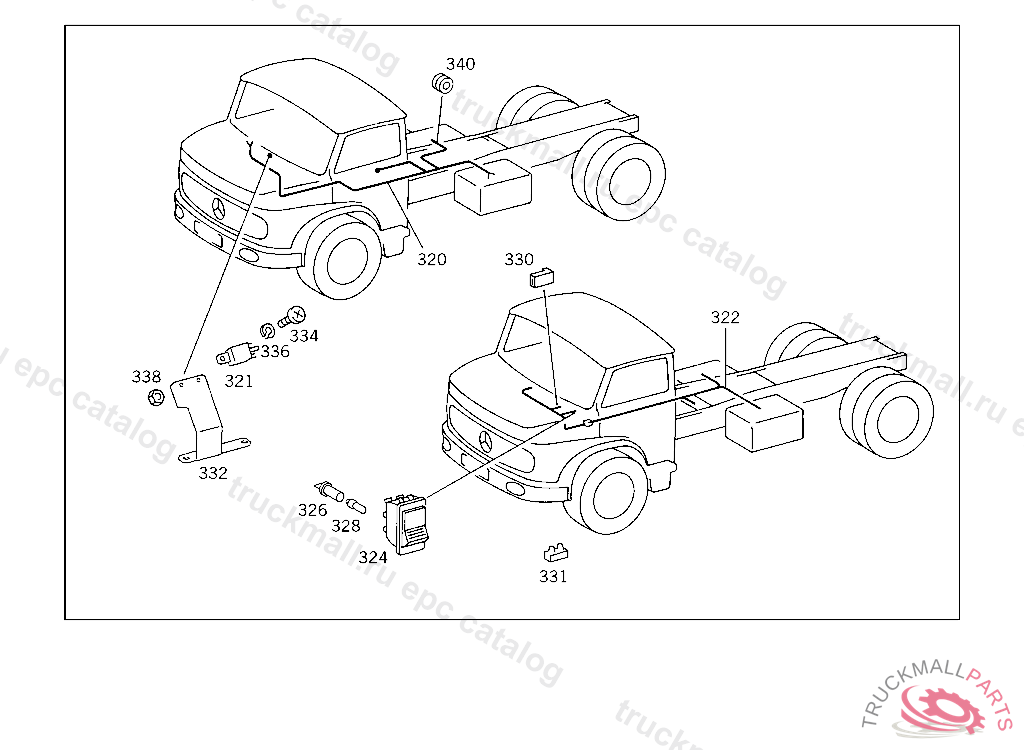

320
ELECTRIC CABLE
320
ELECTRIC CABLE
321
RELAY KITCHENETTE
321
RELAY
322
ELECTRIC CABLE
324
SWITCH (PUSH BUTTON SWITCH)
326
LAMP SOCKET ,642394
328
BULB , Replaced By: A3885447293
328
LAMP SOCKET FLAME STARTING SYSTEM
328
BULB , Replaced By: A6885447093
328
LAMP SOCKET P.T.O. TELL-TALE LAMP 12V/1.2W
330
BOOT PIN BUSHING
330
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
331
CABLE CONNECTOR ,760894
331
CABLE CONNECTOR
332
BRACKET CONTACTOR
334
SCREW CONTROL UNIT
336
LOCK WASHER PLUG SOCKET
338
NUT TACHOGRAPH TO BRACKET
340
GROMMET
999
FITTING
999
BALL-TYPE NIPPLE
999
LINE , Replaced By: A3444704264
999
LINE , Replaced By: A3444704164
999
LINE , Replaced By: A3444704064
999
LINE , Replaced By: A3444703964
999
FUEL TANK , Replaced By: A3444700401
999
RISING PIPE , Replaced By: A3444700126
999
LINE , Replaced By: A3444708365
999
LINE , Replaced By: A3444708265
999
LINE , Replaced By: A3444708165
999
LINE , Replaced By: A3444707965
999
LINE , Replaced By: A3444707865
999
LINE , Replaced By: A3444707765
999
LINE , Replaced By: A3444707465
999
LINE , Replaced By: A3444707265
999
MAGNET12 V, TO 345 997 74 36
999
CAP REPAIR KIT
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
FUEL STRAINER AT TANK
999
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
999
LINE FILTER TO RUBBER HOSE, 350.033 UP TO IDENT NO. 680088
999
LINE FILTER TO RUBBER HOSE
999
LINE LEAK RETURN, 013 FROM CHASSIS 325815
999
LINE FROM RUBBER HOSE TO TANK, 013 FROM CHASSIS 325815
999
LINE FROM TANK TO RUBBER HOSE, 013 FROM CHASSIS 325815
999
LINE FROM ENGINE TO RUBBER HOSE, 350.033 UP TO IDENT NO. 680088
999
LINE FROM FUEL TANK TO FITTING, FROM IDENT NO. 680089
999
LINE FROM FUEL TANK TO FITTING, FROM IDENT NO. 680089
999
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
999
CONNECTOR , Replaced By: A3454297736
999
LINE FROM T-FITTING TO T-FITTING, NOT USED
999
LINE FROM T-FITTING TO VALVE, NOT USED
999
LINE
999
LINE FROM T-FITTING TO SOLENOID VALVE
999
LINE FROM THREE-WAY VALVE TO T-FITTING
999
LINE
999
LINE FROM THREE-WAY VALVE TO T-FITTING
999
SENDER UNIT , Replaced By: A3455427917
999
LINE FROM FUEL TANK TO FILTER,787696
999
LINE , Replaced By: A3504707465
999
LINE , Replaced By: A3504707365
999
FUEL TANK LESS SENDER UNIT 300 L
999
HOSE
999
LINE LEAK RETURN
999
LINE RETURN
999
LINE FROM FUEL TANK TO "T" CONNECTION FITTING
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
LINE FROM FUEL TANK TO RUBBER HOSE
999
FUEL STRAINER , Replaced By: A3124711620
999
BRACKET LINE MOUNTING
999
HOSE THRU SIDE MEMBER AND APPARATUS SUPPORT,600892
999
CLAMP
999
CLAMP , Replaced By: A1109950401
999
CLAMP LINE MOUNTING
999
BRACKET FUEL LINE
999
RISING PIPE
999
CLAMP LINE MOUNTING
999
SEAL RING
999
BANJO UNION , Replaced By: N915052008019
999
MAGNET24 V, TO 364 997 71 36
999
KNOB
999
VALVE PART
999
NUTTO 345 997 74 36/364 997 71 36
