Поз.
Артикул
Описание

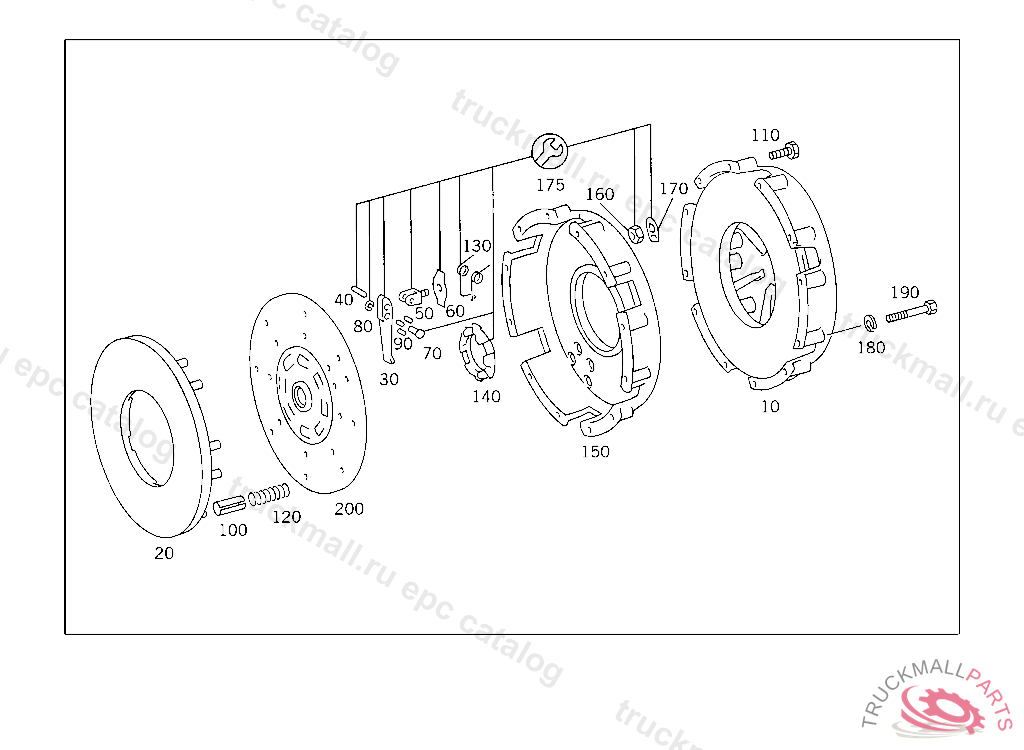

10
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
PRESSURE PLATE
30
RELEASE LEVER
40
SPINDLE FOR RELEASE LEVERS
50
BRACKET FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
60
LEAF SPRING
70
SPINDLE FOR BRACKETS
80
LOCK PLATE
90
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
100
SLEEVE CLUTCH PRESSURE PLATE
110
SCREW RELEASE LEVER,BRACKET
120
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.30 MM
120
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.40 MM
130
SPRING RELEASE LEVER
140
FLANGE
150
HOUSING
160
NUT
170
LOCK
175
REPAIR KITTO 003 250 90 04
180
LOCK WASHER , Replaced By: N912004010102
190
SCREW CLUTCH TO FLYWHEEL
200
CLUTCH DISC
200
CLUTCH DISC
200
CLUTCH DISC , Replaced By: A0182503203
200
CLUTCH DISC , Replaced By: A0182503203
200
CLUTCH DISC , Replaced By: A0182503203
200
200
CLUTCH DISC , Replaced By: A0182503203
200
CLUTCH DISC , Replaced By: A0182503203
999
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523919, +002A0002523975
999
RIVET , Replaced By: A0002523775
999
REPAIR KIT MINOR
999
RODTO A 000 295 21 18
999
PISTONTO A 000 295 21 18
999
CLUTCH LINING
999
999
SEAL RING BOTTOM
999
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
999
999
SEAL RING RELEASE SHAFT,TOP
999
CLAMPING SLEEVE RELEASE LEVER TO SHAFT
999
999
SCREW AIR BAFFLE TO RADIATOR BASE FRAME, Replaced By: A0009906404
