Поз.
Артикул
Описание

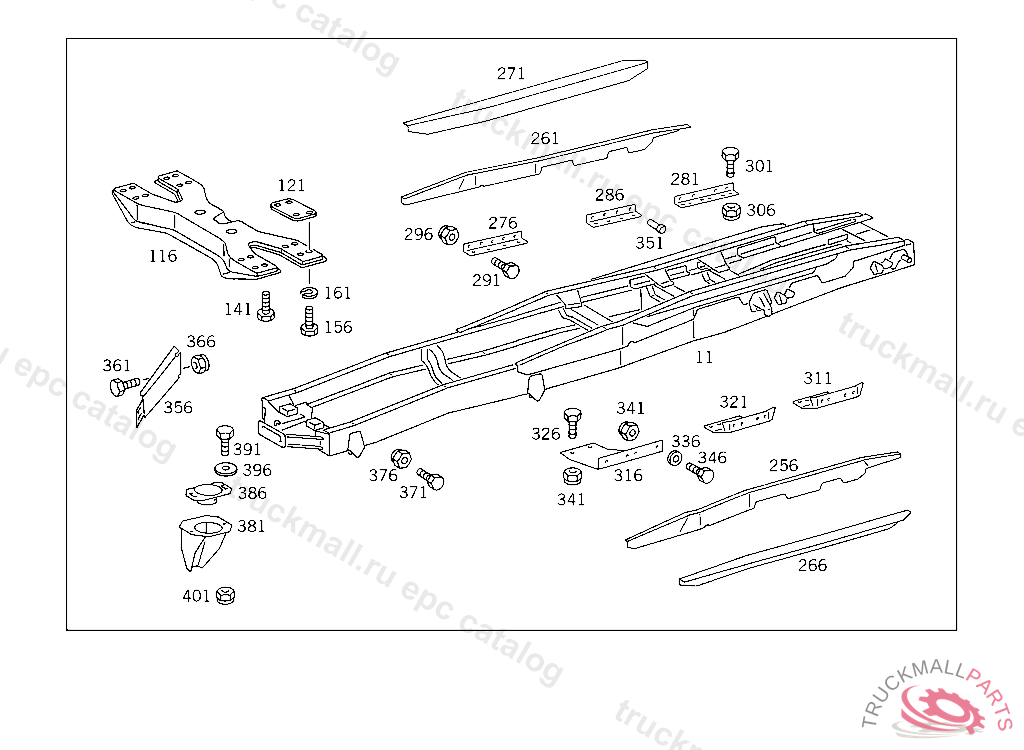

11
FRAME
116
CROSS MEMBER FRONT SPRING REAR BRACKET NO. 2
121
SHIM , Replaced By: A3873120084
121
SHIM , Replaced By: A6203121984
141
SCREW BATTERY CASE TO SIDE MEMBER
156
SCREW BRACKET TO FRAME
161
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
256
SIDE MEMBER AUXILIARY FRAME,LEFT
261
SIDE MEMBER AUXILIARY FRAME,RIGHT
266
ANGLE LEFT OUTSIDE
271
ANGLE RIGHT OUTSIDE
276
ANGLE
281
ANGLE
286
ANGLE
291
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
296
NUT SUPPORT TO SIDE MEMBER
301
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
301
SCREW BRACKET TO FRAME M 12X35
306
NUT SUPPORT TO SIDE MEMBER
311
BRACKET AUXILIARY FRAME
316
BRACKET AUXILIARY FRAME
321
BRACKET AUXILIARY FRAME
326
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
326
SCREW BRACKET TO FRAME M 12X35
326
SCREW AIR RESERVOIR CONSOLE TO SIDE MEMBER
336
WASHER SUPPORT TO FRAME,D 127794
341
NUT SUPPORT TO SIDE MEMBER
341
NUT BRACKET TO SIDE MEMBER
346
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
351
RIVET12X28 MM
351
RIVET PLATE TO FRAME,KB860814
351
RIVET12X32 MM
351
RIVET , Replaced By: N910105014005
351
RIVET12X36 MM, TO BE ADAPTED DURING ASSEMBLY
351
RIVET12X38 MM
351
RIVET12X40 MM
351
RIVET12X42 MM
351
RIVET SUPPORT TO FRAME
351
RIVET12X48 MM
351
RIVET12X50 MM
351
RIVET14X45 MM
351
RIVET14X42 MM
356
REINFORCEMENT LEFT
356
REINFORCEMENT RIGHT, FROM IDENT NO. 680089
361
SCREW , Replaced By: N304017010040
366
NUT BRACKET TO SIDE MEMBER,XB209706
381
BODY SUPPORT
386
PLATE WITH CUP
391
SCREW BRACKET TO FRAME M 12X35
396
WASHER PLATE WITH CUP TO BODY SUPPORT
401
NUT SUPPORT TO SIDE MEMBER
