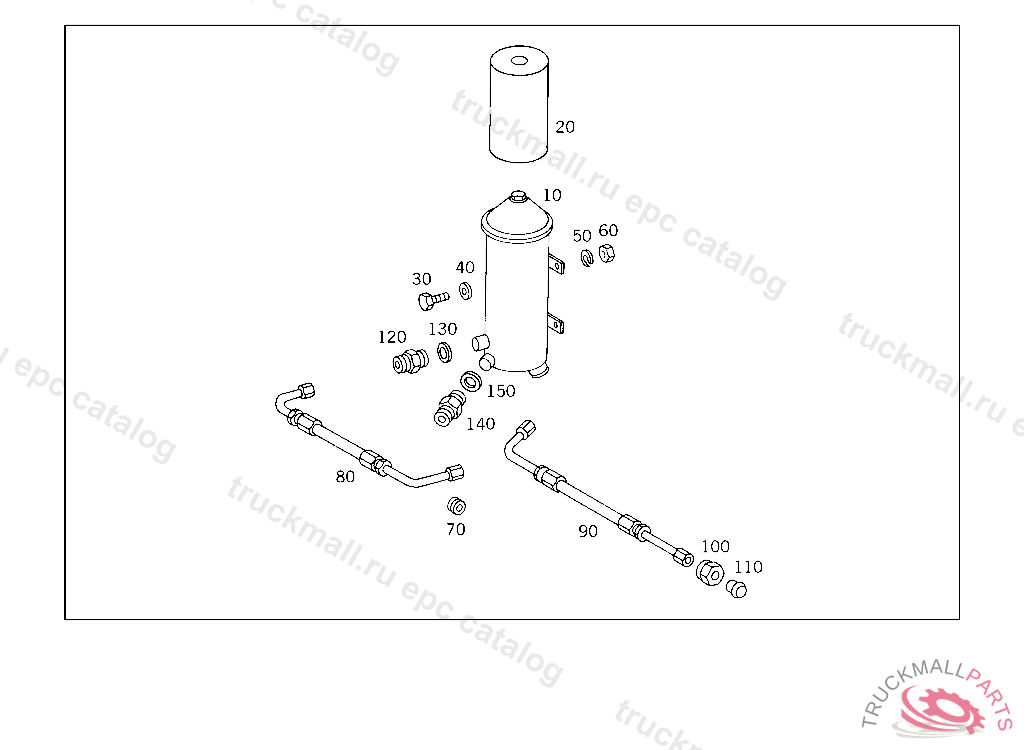

Поз.
Артикул
Описание
10
OIL FILTERMANN
20
FILTER ELEMENT
20
FILTER ELEMENT
30
SCREW BEARING BRACKET TO SIDE MEMBER
30
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
40
WASHER SUPPORT TO FRAME,D 127794
50
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
60
NUT BRACKET TO SIDE MEMBER
70
GROMMET
80
HOSE FROM OIL FILTER TO OIL COOLER
80
HOSE FROM OIL FILTER TO OIL COOLER
90
HOSE FROM OIL FILTER TO HOUSE LINE
90
HOSE FROM OIL FILTER TO HOUSE LINE
100
UNION NUT LINE MOUNTING,5 9363655 812730
100
UNION NUT LINE CONNECTION
110
GLAND LINE MOUNTING,5 9363655 812730
110
GLAND LINE CONNECTION
120
FITTING LUBRICATING OIL LINE TO OIL COOLER
130
SEAL RING VALVE TO VALVE,K 025179
140
FITTING LUBRICATING OIL LINE TO OIL FILTER
140
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
150
SEAL RING VALVE TO VALVE,K 025179
150
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
999
SCREW PLUG SOCKET TO FRAME
999
SCREW POWER CYLINDER TO BEARING BRACKET
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
BRACKET , Replaced By: A3812952440
999
LOOM TIE ELECTRIC CABLE MOUNTING
999
LOOM TIE , Replaced By: A3459977390
999
SEAL RING
999
SEAL RING
999
CLAMP FROM EXPANSION TANK TO HEATING PIPE, NOT USED
999
STRAP
