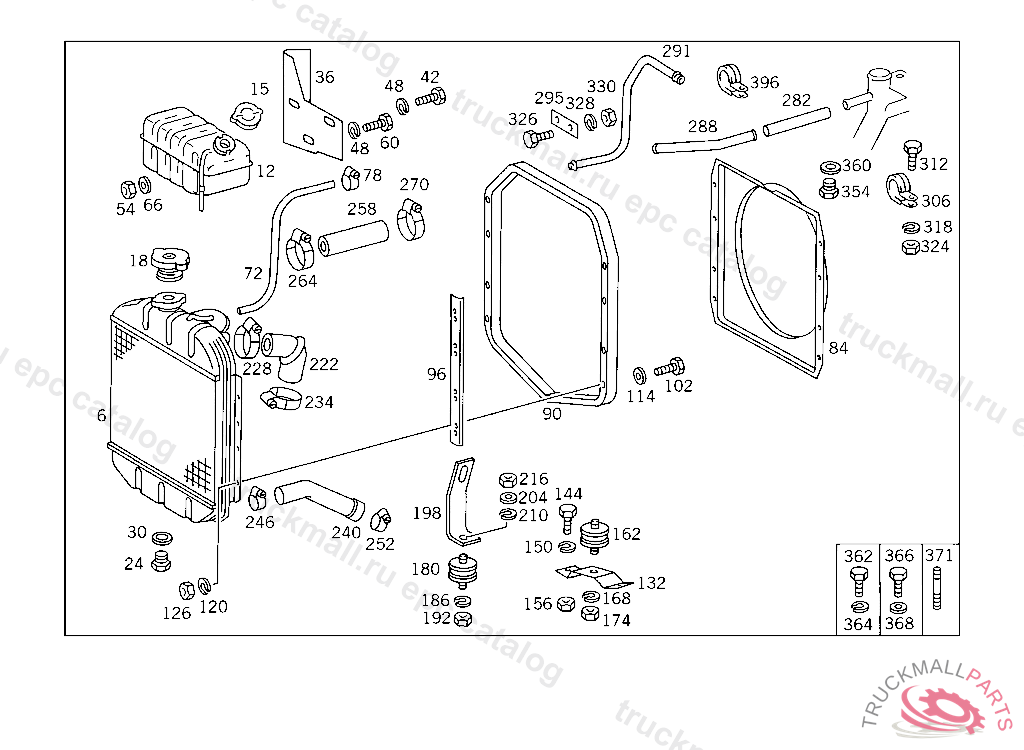

Поз.
Артикул
Описание
6
RADIATOR
12
TANK EXPANSION TANK,604879
12
TANK EXPANSION TANK
15
RADIATOR CAPTO 345 500 76 49
18
RADIATOR CAP
24
SCREW PLUG
30
SEAL RING
36
BRACKET
42
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
48
LOCK WASHER
54
NUT , Replaced By: N304032008006
60
SCREW STEERING SHAFT BEARING TO CAB M 8X20
66
WASHER , Replaced By: N000125008443
72
HOSE FROM CONNECTION TO EXPANSION TANK
78
CLAMP HOSE TO FITTING AND TO OIL TANK
78
LOOM TIE. CLAMP HOSE TO HEATING PIPE
78
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
84
90
SUPPORT
96
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
102
SCREW COMPRESSED AIR ELBOW
102
SCREW , Replaced By: N304017008034
114
WASHER , Replaced By: N000125008443
120
LOCK WASHER
126
NUT LEVER TO SHIFTING SHAFT
132
ANGLE LEFT
132
ANGLE RIGHT
144
SCREW BRAKE ANCHOR PLATE TO STEERING KNUCKLE
150
LOCK WASHER BRACKET TO SUPPORTING ARM
156
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
162
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
168
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
174
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
180
RUBBER BUFFER EXHAUST MUFFLER
186
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
192
NUT BRACKET TO RETARDER
198
BRACKET RUBBER BUFFER TO BASE FRAME
204
WASHER , Replaced By: N000125010532
210
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
216
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
222
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
228
CLAMP
228
CLAMP , Replaced By: N000000000671
234
CLAMP , Replaced By: N000000000673
234
CLAMP HOSE TO RETARDER 60-80X13 MM
240
HOSE FROM RADIATOR OUTLET TO OIL COOLER
246
CLAMP
246
CLAMP , Replaced By: N000000000671
246
LOOM TIE
252
CLAMP , Replaced By: N000000000673
252
CLAMP HOSE TO RETARDER 60-80X13 MM
252
LOOM TIE HOSE TO RADIATOR AN TO BUBBLE SEPARATOR 33-76
258
258
264
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
264
CLAMP , Replaced By: N000000000667
270
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
270
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
282
288
HOSE
291
295
306
CLAMP BRAKE HOSE BRACKET
312
SCREW 3/2-WAY VALVE TO BRACKET
318
LOCK WASHER PLATE TO SUPPORT,B 891584
324
NUT CLAMP TO BRACKET
326
SCREW 3/2-WAY VALVE TO BRACKET
328
LOCK WASHER PLATE TO SUPPORT,B 891584
330
NUT CLAMP TO BRACKET
354
SCREW PLUG
360
SEAL RING
362
SCREW STEERING SHAFT BEARING TO CAB M 8X20
364
LOCK WASHER
366
SCREW SWITCH TO BRACKET 8X16
368
WASHER , Replaced By: N000125008443
371
396
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
999
HOSE
