Поз.
Артикул
Описание

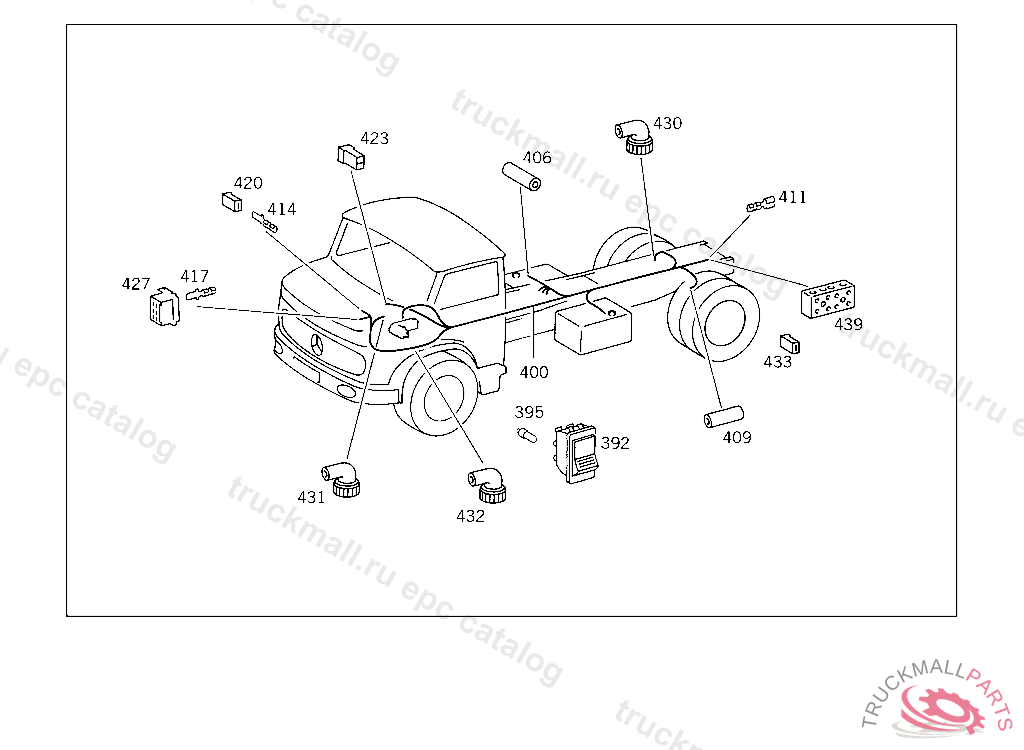

392
SWITCH (PUSH BUTTON SWITCH)
395
BULB , Replaced By: A3885447293
400
CABLE HARNESS FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
406
GROMMET3.0 MM
409
GROMMET5.0 MM
411
PIN BUSHING , Replaced By: A0075458226
414
PLUG , Replaced By: A0015458628
417
PLUG
420
PIN BUSHING HOUSING UNIPOLAR
423
PIN BUSHING HOUSING BIPOLAR
427
PLUG HOUSING 8-POLE
430
PLUG SOCKETTO 341 540 82 10
431
BOOT. PLUG SOCKET FRAME MOUNTED CABLE HARNESS,TB099687
432
PLUG SOCKET
433
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
433
BOOT PIN BUSHING
439
CABLE CONNECTOR
439
CABLE CONNECTOR ,760894
999
SHIM RESERVOIR
999
RUBBER STRIP , Replaced By: A3459837391
999
SUPPORT FUEL TANK
999
FUEL TANK
999
STRAP FUEL TANK TO SUPPORT
999
SENDER UNIT , Replaced By: A3455427917
999
SENDER UNIT TANK
999
LINE FROM AIR RESERVOIR TO BRAKE VALVE
999
LINE FROM 4-CIRCUIT PROTECTIVE VALVE,CONNECTION "21",TO OUTSIDE AIR RESERVOIR
999
LINE FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
999
FILLER CAP
999
BASE SUPPORT TO SIDE MEMBER
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
999
CONSOLE , 674067
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
WASHER , Replaced By: A3379900440
999
GROMMET42/36 MM, NOT USED
